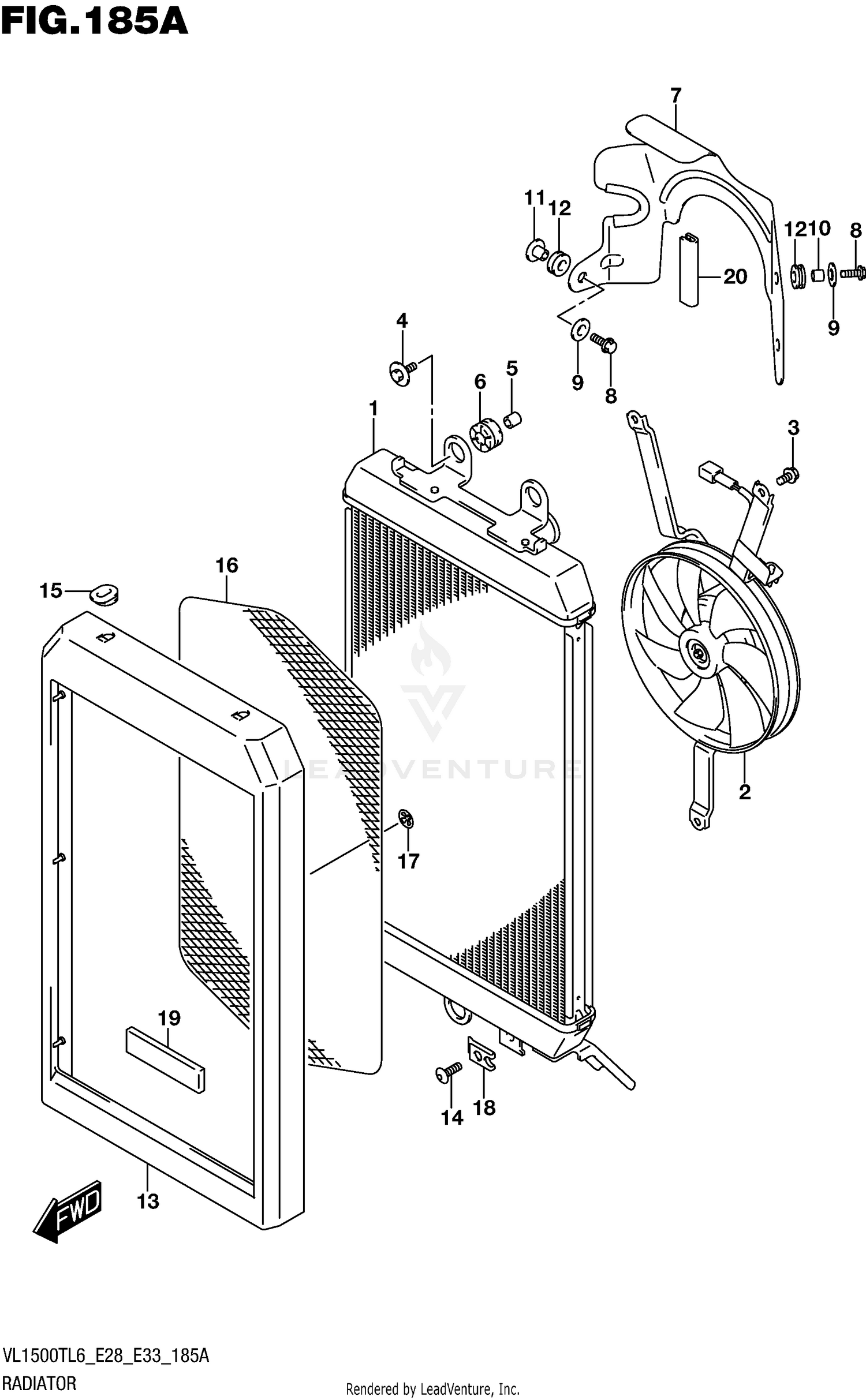

Radiator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RADIATOR ASSY, WATER
17710-40H10
|
$1,230.66 | ||
|
Available to order. Add to View Price |
|||
|
#2
FAN ASSY, RADIATOR
17800-40H00
|
$754.52 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
17711-40H00
|
$4.23 | ||
|
Unavailable |
|||
|
#4
BOLT (6X25)
09118-06097
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPACER (6.5X10X12)
09180-06290
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#6
CUSHION
09320-10051
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHIELD, RADIATOR HEAT
17771-40H10
|
$90.01 | ||
|
Available to order. Add to View Price |
|||
|
#8
.BOLT
01547-0620B
|
$2.94 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER (6.5X20X1.2)
09160-06152
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPACER
09180-06360
|
$3.23 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPACER (6.2X8.4X6.9)
09180-06325
|
$4.68 | ||
|
Available to order. Add to View Price |
|||
|
#12
CUSHION
09320-08083
|
$8.33 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER, RADIATOR
17760-40H00
|
$63.81 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW (6X16)
09139-06039
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#15
CUSHION
09320-03004
|
$2.47 | ||
|
Available to order. Add to View Price |
|||
|
#16
NET, RADIATOR COVER
17765-40H00
|
$89.95 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT
09148-03010
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
09148-06021
|
$4.53 | ||
|
Available to order. Add to View Price |
|||
|
#19
CUSHION
92141-43EU0
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#20
MOLDING
17762-18H00
|
$9.78 | ||
|
Available to order. Add to View Price |
|||
