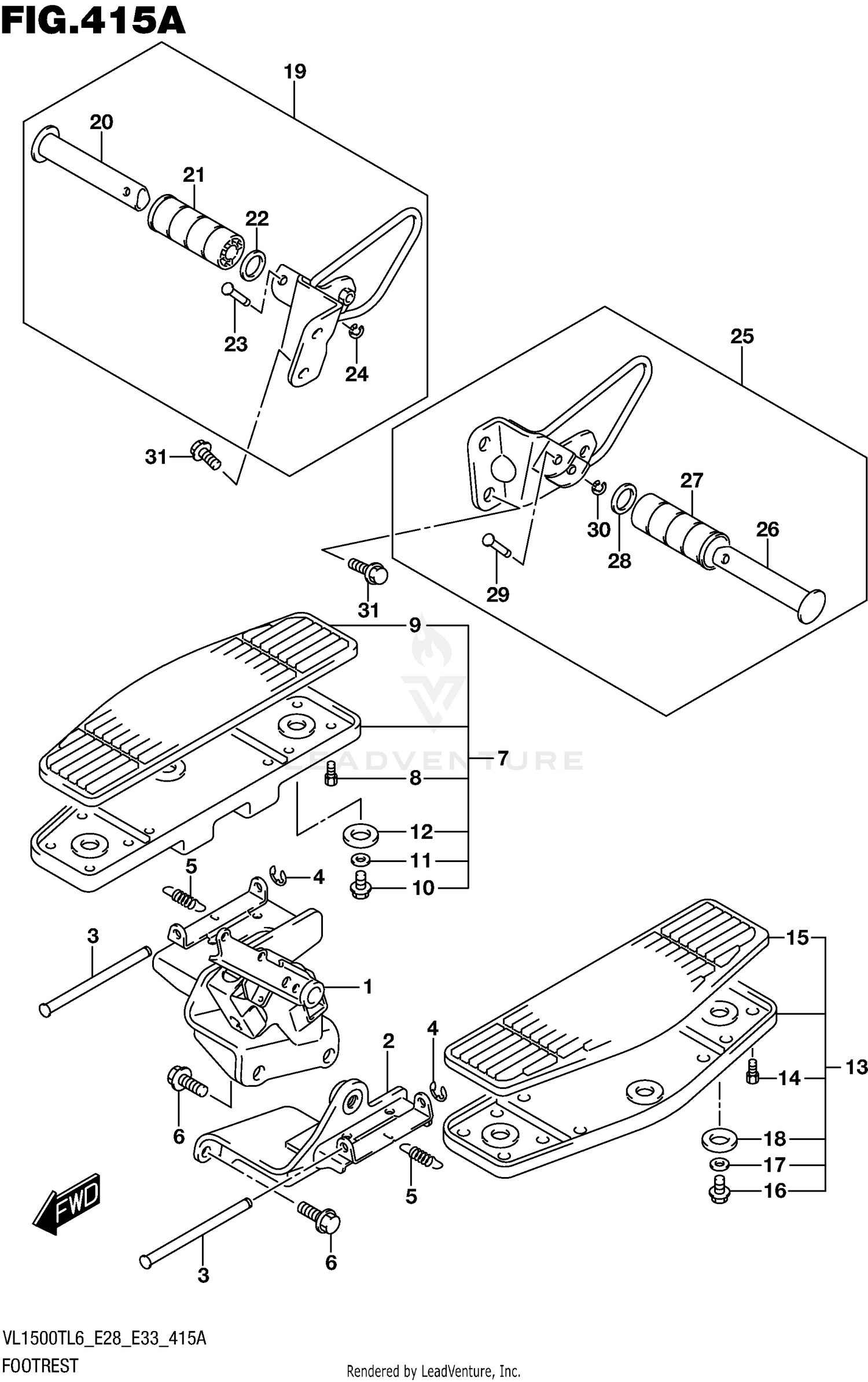

Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BRACKET, FRONT FOOTREST RH
43510-06J00
|
$241.19 | ||
|
Available to order. Add to View Price |
|||
|
#2
BRACKET, FRONT FOOTREST LH
43520-06J01
|
$103.91 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN,FRONT FOOTREST
43539-10F00
|
$10.32 | ||
|
Available to order. Add to View Price |
|||
|
#4
E-RING
08332-1106A
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING
09443-11033
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
01550-1025B
|
$4.31 | ||
|
Available to order. Add to View Price |
|||
|
#7
FOOTREST ASSY,FRONT RH
43501-10F11
Superseded by 43501-10F12
|
$223.69 | ||
|
Available to order. Add to View Price |
|||
|
#8
.BOLT,BANK SENSOR
43576-07D01
|
$10.93 | ||
|
Available to order. Add to View Price |
|||
|
#9
.RUBBER, FRONT FOOTREST
43550-10F10
|
$84.63 | ||
|
Available to order. Add to View Price |
|||
|
#10
.BOLT
01550-0610A
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#11
.WASHER (6.5X22X1.6)
09160-06158
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#12
.CUSHION
09320-10036
Superseded by 09320-10077
|
$2.35 | ||
|
Unavailable |
|||
|
#13
FOOTREST ASSY,FRONT LH
43502-10F11
Superseded by 43502-10F12
|
$223.69 | ||
|
Available to order. Add to View Price |
|||
|
#14
.BOLT,BANK SENSOR
43576-07D01
|
$10.93 | ||
|
Unavailable |
|||
|
#15
.RUBBER, FRONT FOOTREST
43550-10F10
|
$84.63 | ||
|
Unavailable |
|||
|
#16
.BOLT
01550-0610A
|
$2.37 | ||
|
Unavailable |
|||
|
#17
.WASHER (6.5X22X1.6)
09160-06158
|
$2.43 | ||
|
Unavailable |
|||
|
#18
.CUSHION
09320-10036
Superseded by 09320-10077
|
$2.35 | ||
|
Unavailable |
|||
|
#19
FOOTREST ASSY, PILLION RH
43600-06J10
|
$82.22 | ||
|
Available to order. Add to View Price |
|||
|
#20
.BAR,PILLION FOOTREST
43610-39G10
|
$18.03 | ||
|
Available to order. Add to View Price |
|||
|
#21
.RUBBER
43612-39G00
|
$12.73 | ||
|
Available to order. Add to View Price |
|||
|
#22
.WASHER (19.5X32X2)
09160-19024
|
$3.12 | ||
|
Available to order. Add to View Price |
|||
|
#23
.PIN
09208-06007
|
$4.06 | ||
|
Available to order. Add to View Price |
|||
|
#24
E RING
08332-1104A
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#25
FOOTREST ASSY, PILLION LH
43700-06J20
|
$80.27 | ||
|
Available to order. Add to View Price |
|||
|
#26
.BAR,PILLION FOOTREST
43610-39G10
|
$18.03 | ||
|
Unavailable |
|||
|
#27
.RUBBER
43612-39G00
|
$12.73 | ||
|
Unavailable |
|||
|
#28
.WASHER (19.5X32X2)
09160-19024
|
$3.12 | ||
|
Unavailable |
|||
|
#29
.PIN
09208-06007
|
$4.06 | ||
|
Unavailable |
|||
|
#30
E RING
08332-1104A
|
$1.65 | ||
|
Unavailable |
|||
|
#31
BOLT (8X16)
09103-08412
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
