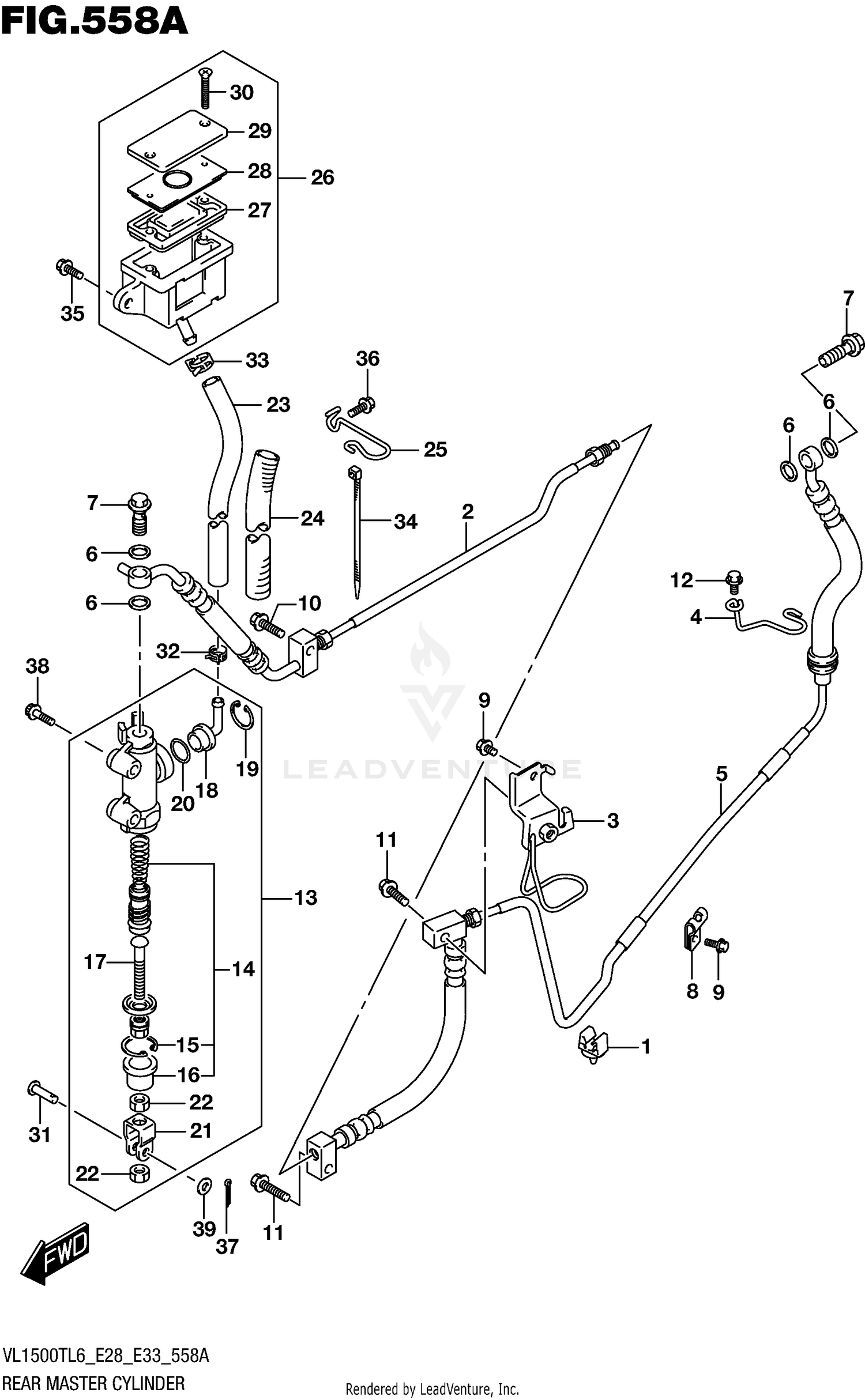

Rear Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLAMP, REAR BRAKE PIPE
51761-79J00
|
|||
|
Unavailable |
|||
|
#2
HOSE ASSY, REAR BRAKE NO.1
69200-40H00
|
$99.54 | ||
|
Unavailable |
|||
|
#3
CLAMP, REAR BRAKE HOSE
69260-40H10
|
$20.51 | ||
|
Available to order. Add to View Price |
|||
|
#4
GUIDE, REAR BRAKE HOSE
69278-40H10
|
$10.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOSE
69400-40H00
Superseded by 69400-40H01
|
$224.01 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER (10X15X1.5)
09161-10009
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#7
UNION
09360-10062
|
$7.84 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP
09403-07401
|
$1.70 | ||
|
Unavailable |
|||
|
#9
BOLT
01547-0612A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
01547-0620A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
01547-0625A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
01550-0612A
|
$2.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
CYLINDER ASSY, REAR MASTER
69600-48G10
|
$215.12 | ||
|
Unavailable |
|||
|
#14
.PISTON/CUP SET
69600-40811
|
$56.44 | ||
|
Available to order. Add to View Price |
|||
|
#15
..CIRCLIP
69665-47H00
|
$5.42 | ||
|
Available to order. Add to View Price |
|||
|
#16
..BOOT
69691-00A00
|
$6.74 | ||
|
Available to order. Add to View Price |
|||
|
#17
.ROD, PUSH
69670-44B00
|
$19.59 | ||
|
Unavailable |
|||
|
#18
.CONNECTOR
69672-00B20
|
$8.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
.CIRCLIP
69674-00B20
|
$5.04 | ||
|
Available to order. Add to View Price |
|||
|
#20
.O RING
69686-34200
|
$3.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
.YOKE
69692-19A00
|
$18.22 | ||
|
Available to order. Add to View Price |
|||
|
#22
.NUT
69693-05A00
|
$2.08 | ||
|
Available to order. Add to View Price |
|||
|
#23
HOSE, REAR RESERVOIR TANK
69730-40H00
|
$41.80 | ||
|
Unavailable |
|||
|
#24
HEATSHIELD, RESERVER TANK HOS
69732-40H00
|
$13.26 | ||
|
Unavailable |
|||
|
#25
GUIDE, RESERVER TANK HOSE
69738-40H10
|
$10.55 | ||
|
Available to order. Add to View Price |
|||
|
#26
TANK ASSY, REAR RESERVOR
69740-40H10
|
|||
|
Unavailable |
|||
|
#27
.DIAPHRAGM
59667-49460
|
$12.08 | ||
|
Available to order. Add to View Price |
|||
|
#28
.PLATE, DIAPHRAGM
59668-41C00
|
$11.52 | ||
|
Available to order. Add to View Price |
|||
|
#29
.CAP
59669-10G10
|
|||
|
Unavailable |
|||
|
#30
.SCREW
69689-40H00
|
|||
|
Unavailable |
|||
|
#31
PIN (6X18.2)
09200-06068
|
$5.01 | ||
|
Available to order. Add to View Price |
|||
|
#32
CLIP (ID:11.1)
09401-12404
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#33
CLIP (ID:12.9)
09401-13417
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#34
CLAMP (L:145)
09407-14407
|
$3.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
BOLT
01547-0616A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#36
SCREW (6X16)
02162-0616A
Superseded by 02162-0616B
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
|
#37
COTTER PIN
04111-2015A
|
$1.48 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT
07120-0625A
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#39
WASHER
08322-0106A
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
