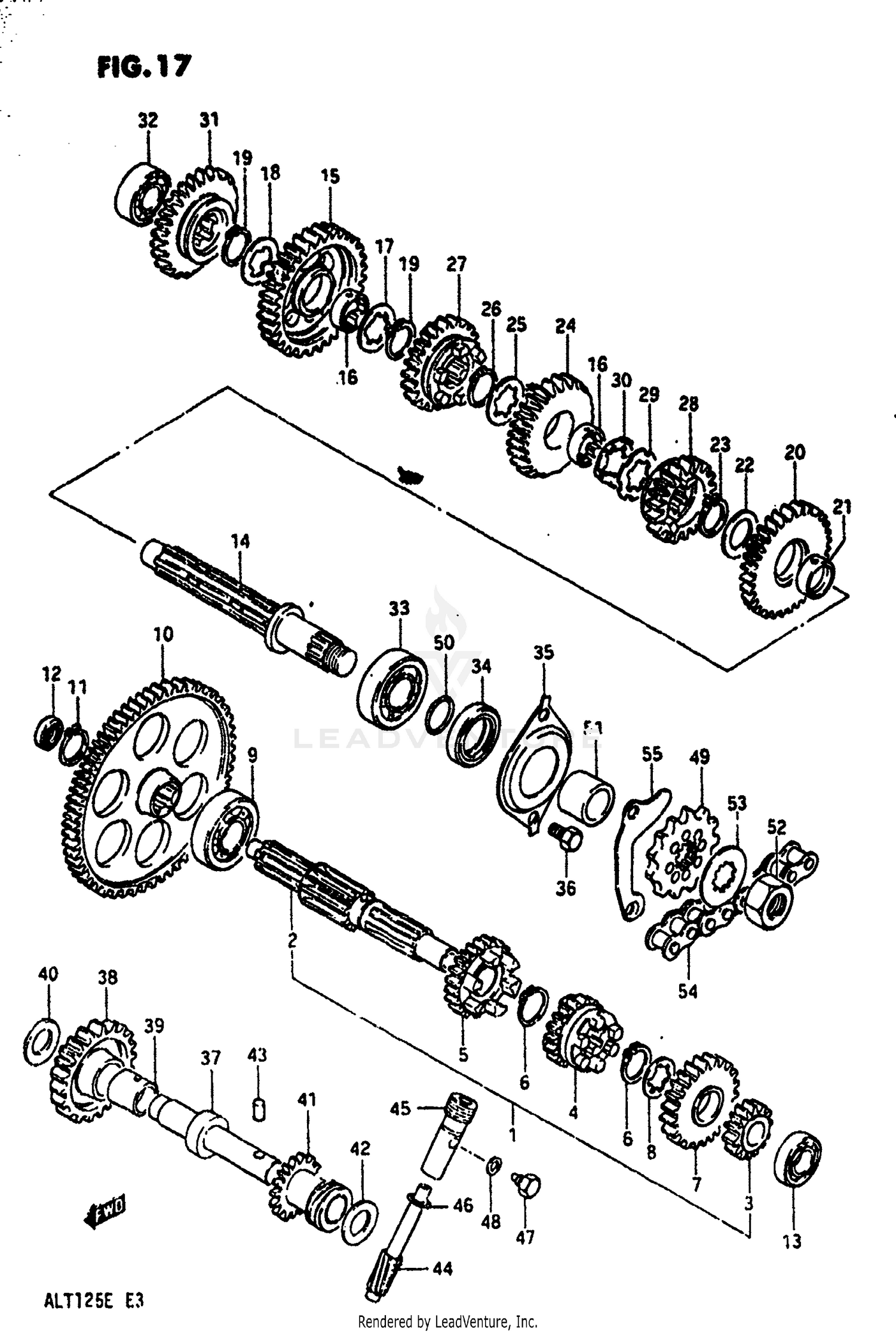

Trans Mission (model E) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COUNTER SHAFT ASSY
24120-18910
Superseded by 24120-18913
|
$174.95 | ||
|
Unavailable |
|||
|
#2
COUNTER SHAFT (NT:11)
24100-18840
Superseded by 24100-18841
|
$89.93 | ||
|
Unavailable |
|||
|
#3
GEAR, 2ND DRIVE (NT:15)
24221-18910
|
$45.35 | ||
|
Unavailable |
|||
|
#4
GEAR, 3RD DRIVE (NT:20)
24231-18903
Superseded by 24231-18905
|
$98.54 | ||
|
Unavailable |
|||
|
#5
GEAR, 4TH DRIVE (NT:23)
24240-18901
|
$80.17 | ||
|
Unavailable |
|||
|
#6
CIRCLIP
09380-20007
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#7
GEAR, 5TH DRIVE (NT:23)
24251-18910
|
$47.70 | ||
|
Unavailable |
|||
|
#8
WASHER
09167-20011
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING, DRIVE SHAFT LH
08113-62040
Superseded by 09262-20069
|
$29.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
GEAR, PRIMARY DRIVEN (NT:71)
21211-24300
Superseded by 21211-24301
|
$80.63 | ||
|
Unavailable |
|||
|
#11
CIRCLIP, KICK START DRIVE GEAR
08331-11209
Superseded by 08331-3120A
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#12
OIL SEAL
09282-10005
|
$6.37 | ||
|
Unavailable |
|||
|
#13
BEARING, LH
08113-60020
|
$20.17 | ||
|
Available to order. Add to View Price |
|||
|
#14
DRIVE SHAFT
24131-18910
Superseded by 24131-18911
|
$152.91 | ||
|
Unavailable |
|||
|
#15
GEAR, 1ST DRIVEN (NT:39)
24311-18910
|
$51.60 | ||
|
Unavailable |
|||
|
#16
BUSH
24332-18910
|
$15.28 | ||
|
Unavailable |
|||
|
#17
LOCK WASHER (L)
09167-20022
|
$2.30 | ||
|
Unavailable |
|||
|
#18
LOCK WASHER (R)
09167-20016
|
$1.79 | ||
|
Unavailable |
|||
|
#19
CIRCLIP
09380-20007
|
$2.88 | ||
|
Unavailable |
|||
|
#20
GEAR, 2ND DRIVEN (NT:35)
24321-18910
|
$77.01 | ||
|
Unavailable |
|||
|
#21
BUSH
09300-20033
|
$21.22 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER
08211-20301
|
$2.97 | ||
|
Available to order. Add to View Price |
|||
|
#23
CIRCLIP
09380-20007
|
$2.88 | ||
|
Unavailable |
|||
|
#24
GEAR, 3RD DRIVEN (NT:30)
24331-18910
|
$68.80 | ||
|
Unavailable |
|||
|
#25
LOCK WASHER
09167-20022
|
$2.30 | ||
|
Unavailable |
|||
|
#26
CIRCLIP
09380-20007
|
$2.88 | ||
|
Unavailable |
|||
|
#27
GEAR, 4TH DRIVEN (NT:27)
24341-18902
|
$51.19 | ||
|
Unavailable |
|||
|
#28
GEAR, 5TH DRIVEN (NT:21)
24351-18903
Superseded by 24351-18904
|
$68.80 | ||
|
Unavailable |
|||
|
#29
LOCK WASHER
09167-20015
|
$2.20 | ||
|
Unavailable |
|||
|
#30
LOCK WASHER
09169-20003
|
$2.35 | ||
|
Unavailable |
|||
|
#31
GEAR, REVERSE DRIVAN
24571-18901
|
$56.75 | ||
|
Unavailable |
|||
|
#32
BEARING, PH
08123-62027
|
$23.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
BEARING, DRIVE SHAFT LH
08113-62040
Superseded by 09262-20069
|
$29.20 | ||
|
Unavailable |
|||
|
#34
OIL SEAL
09283-27010
|
$11.20 | ||
|
Available to order. Add to View Price |
|||
|
#35
RETAINER
24751-18900
|
$2.25 | ||
|
Unavailable |
|||
|
#36
BOLT
01107-06108
Superseded by 01500-06107
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#37
SHAFT, REVERSE IDLER
24550-24400
|
$65.24 | ||
|
Unavailable |
|||
|
#38
GEAR, REVERSE IDLER
24561-18910
|
$108.88 | ||
|
Available to order. Add to View Price |
|||
|
#39
BUSH
09300-17010
|
$6.53 | ||
|
Unavailable |
|||
|
#40
SHIM (15X28X1)
08211-15281
Superseded by 09181-15223
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#41
GEAR, ODOMETER DRIVE
26460-24300
Superseded by 26460-24301
|
$46.33 | ||
|
Unavailable |
|||
|
#42
SHIM (T:1.0)
08211-15241
Superseded by 09181-15166
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#43
PIN
06211-04103
Superseded by 04221-04109
|
$1.31 | ||
|
Unavailable |
|||
|
#44
GEAR, ODO METER DRIVEN
26471-24200
|
$24.45 | ||
|
Unavailable |
|||
|
#45
SLEEVE
26481-24200
|
$10.26 | ||
|
Unavailable |
|||
|
#46
O RING
09280-10001
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
|
#47
BOLT (6X10)
09135-06002
Superseded by 09135-06501
|
$3.83 | ||
|
Available to order. Add to View Price |
|||
|
#48
WASHER
09168-06004
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#49
SPROCKET, ENGINE (NT:13)
27511-41701
|
$22.26 | ||
|
Available to order. Add to View Price |
|||
|
#50
O RING
09280-20001
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#51
SPACER
09180-20081
|
$6.93 | ||
|
Unavailable |
|||
|
#52
NUT
09140-16017
|
$7.58 | ||
|
Available to order. Add to View Price |
|||
|
#53
LOCK WASHER
09167-20012
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#54
CHAIN, DRIVE (428Vx90LE)
27600-18910
|
$102.37 | ||
|
Unavailable |
|||
|
#55
PLATE
27641-18900
|
$7.73 | ||
|
Available to order. Add to View Price |
|||
