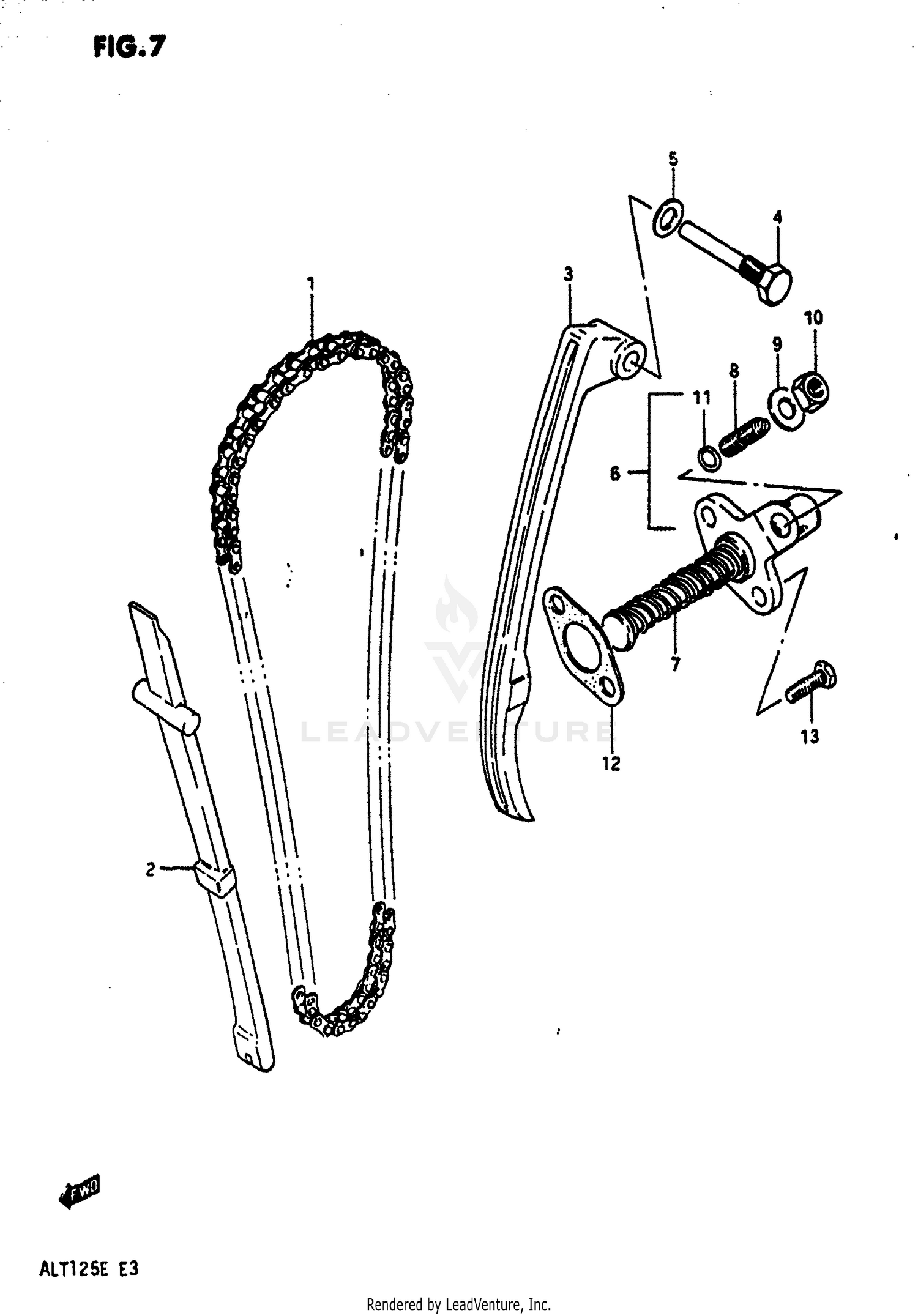

Cam Chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CHAIN, CAM SHAFT DRIVE
12760-05200
Superseded by 12760-44A00
|
$98.48 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE, CAM CHAIN
12771-05200
|
$49.32 | ||
|
Available to order. Add to View Price |
|||
|
#3
TENSIONER, CAM CHAIN
12811-05220
Superseded by 12811-05221
|
$42.75 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
12812-32410
|
$6.01 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT,CAM CHAIN TENSIONER
12812-32400
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET (8.2X14X1)
09168-08008
Superseded by 09168-08016
|
$2.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
ADJUSTER ASSY,T
12830-32461
Superseded by 12830-32463
|
$93.03 | ||
|
Unavailable |
|||
|
#6
ADJUSTER ASSY,T
12830-32451
Superseded by 12830-12FB0
|
$62.58 | ||
|
Unavailable |
|||
|
#7
SPRING
09440-11018
|
$4.02 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW
12838-45001
|
$9.51 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER,LOCK
08322-11085
Superseded by 08322-0108A
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER
08322-11088
Superseded by 08322-01087
|
$2.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
NUT
08310-11085
Superseded by 08310-0008A
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
08310-12088
Superseded by 08310-00087
|
$2.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
.O RING (D:1.9,ID:5.7)
09280-06005
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
|
#12
.GASKET, TENSIONER ADJUSTER
12837-32400
Superseded by 12837-32410
|
$3.36 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, GEAR SHIFT LINK
01107-06205
Superseded by 01500-0620A
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
01107-06208
Superseded by 01500-06207
|
$2.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
