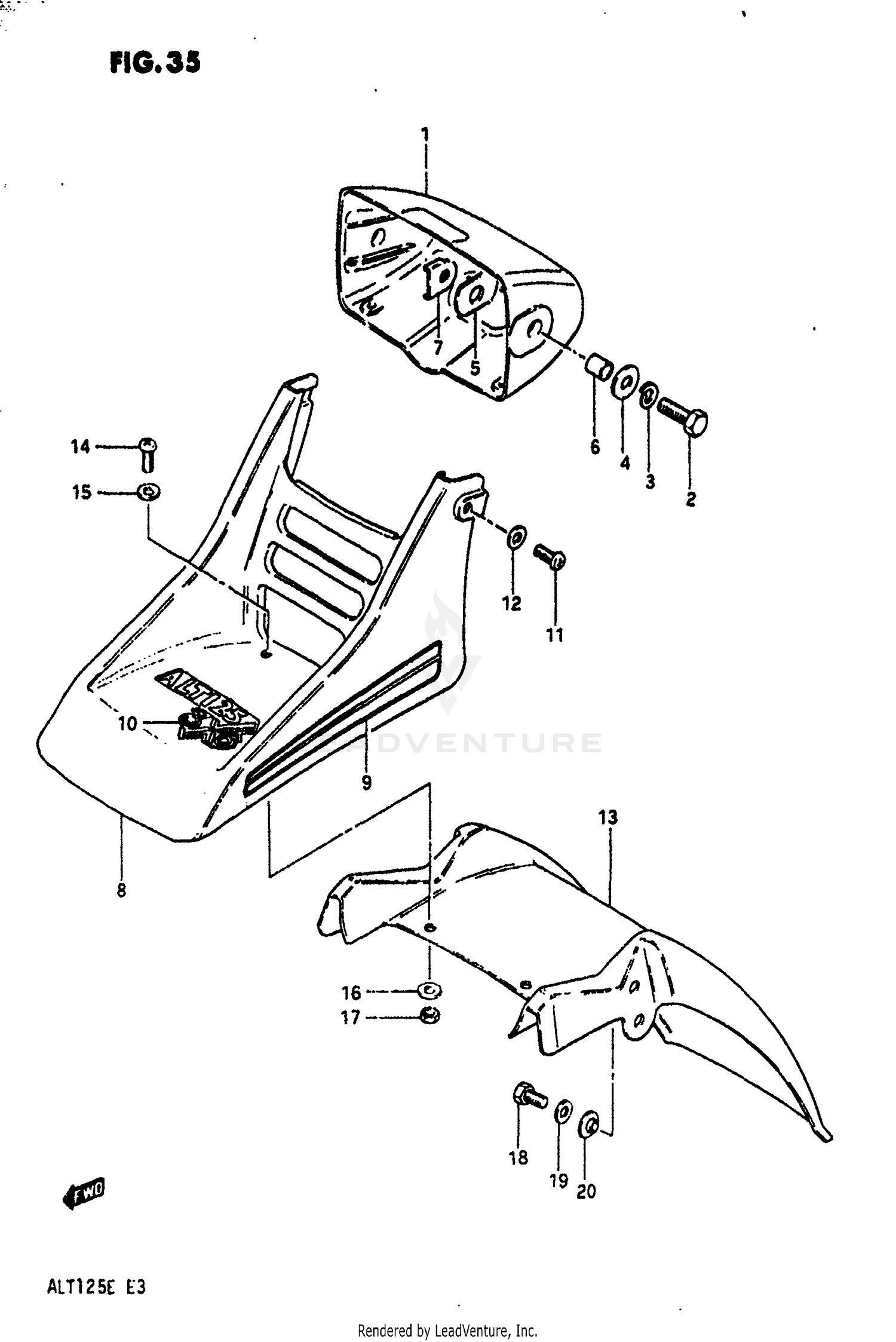

Headlamp Housing - Front Fender (model E) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOUSING, HEADLAMP
51811-17202-291
|
$45.71 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, REAR
01107-08208
Superseded by 01500-08207
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#3
.WASHER
08321-21088
Superseded by 08321-01087
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
WASHER
08322-11088
Superseded by 08322-01087
|
$2.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
CUSHION
09329-12002
Superseded by 09329-12005
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPACER
09180-08030
Superseded by 09180-08187
|
$3.23 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
PLATE, HEADLAMP HOUSING
51860-46400
|
$3.14 | ||
|
Unavailable |
|||
|
#8
FENDER, FRONT
53111-24300-00N
|
$40.51 | ||
|
Unavailable |
|||
|
#9
TAPE
68150-24310-96Z
|
$14.41 | ||
|
Unavailable |
|||
|
#10
EMBLEM, FRONT FENDER NAME
68233-24301-97A
|
$6.12 | ||
|
Unavailable |
|||
|
#11
SCREW
02142-06108
|
$0.48 | ||
|
Unavailable |
|||
|
#12
WASHER
08322-21068
Superseded by 08322-01067
|
$2.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
EXTENSION
53118-24300
|
$39.35 | ||
|
Unavailable |
|||
|
#14
SCREW, FENDER & EXTENSION
02142-06167
|
$1.71 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER
08322-21068
Superseded by 08322-01067
|
$2.33 | ||
|
Unavailable |
|||
|
#16
WASHER
09160-06039
Superseded by 09160-06109
|
$1.44 | ||
|
Available to order. Add to View Price |
|||
|
#17
.NUT
08310-22068
Superseded by 08310-00067
|
$2.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BOLT
01107-06128
Superseded by 01500-06127
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER (6.5x16x1.2)
09160-06019
|
$1.74 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER
09169-06026
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
