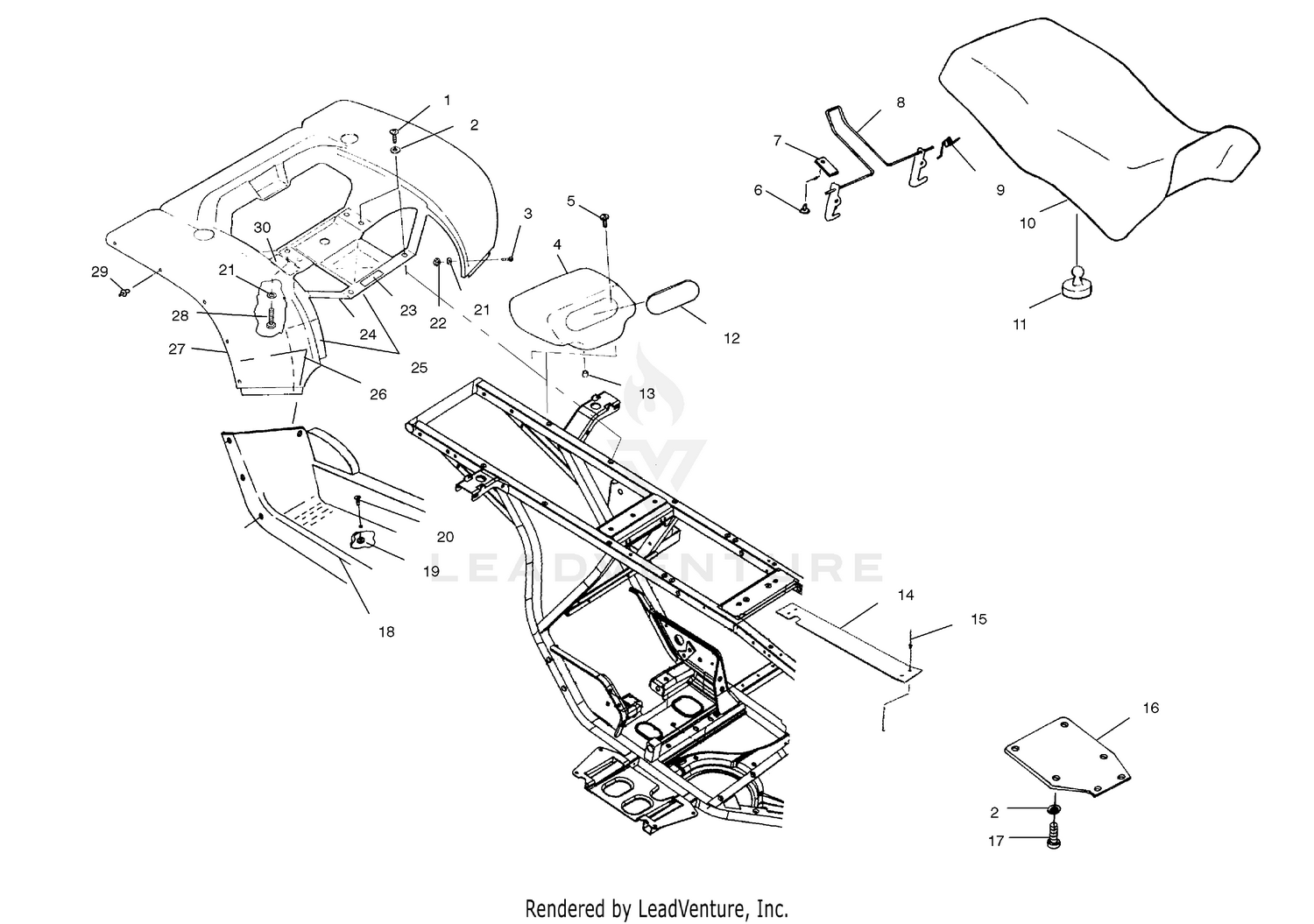

Rear Cab And Seat - A02cg25ca (4969856985a04) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Screw
7512242
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
Washer, Flat
7555859
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, MACH, PAN HEAD PHIL
7512085
Superseded by 7519641
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#4
Box, Tool
5434040
|
$41.19 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCR-1/4-20X.88,HXWR TAPR,GR5,Y
7517375
Superseded by 7517312
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
Rivet
7621403
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
Bracket, Lever Retainer
5211033
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Latch, Seat
1040387
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Spring, Latch
7041370
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Asm., Seat, Brown
2682675-276
Superseded by 2682957-276
|
$374.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Asm., Seat Cover w/White Decal
2681747-276
Superseded by 2684055
|
$184.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BUMPER-RUBBER
5412067
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Cover, Tool Box
5431787
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
Cap, Drain
5410896
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Guard, Clutch
5241403-067
|
|||
|
Unavailable |
|||
|
#15
RIVET-3/16-.090-.290
7661637
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
Guard, Rock
5432763
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Screw
7515179
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
FOOTWELL,LH,BLK,NYLON
5431771-070
Superseded by 5432221-070
|
$284.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Footwell, Black, RH
5434417-070
|
$284.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Nut, Nylok
7542122
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW(10)
7517376
Superseded by 7512279
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Washer
7555792
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Nut, Nylok
7541925
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Decal, 2 Stroke Carb/Filter Information
7079901
|
|||
|
Unavailable |
|||
|
#24
Foil
5811087
|
|||
|
Available to order. Add to View Price |
|||
|
#25
Foil, Rear Cab, Front
5811106
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
Foil, Rear Fender
5811111
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
Cab, Rear, Camo Green Metallic
5432117-195
Superseded by 5432117-400
|
$354.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
Bolt
7511930
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
Rivet
7081040
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
Foil, Rear Cab, Rear
5811107
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
