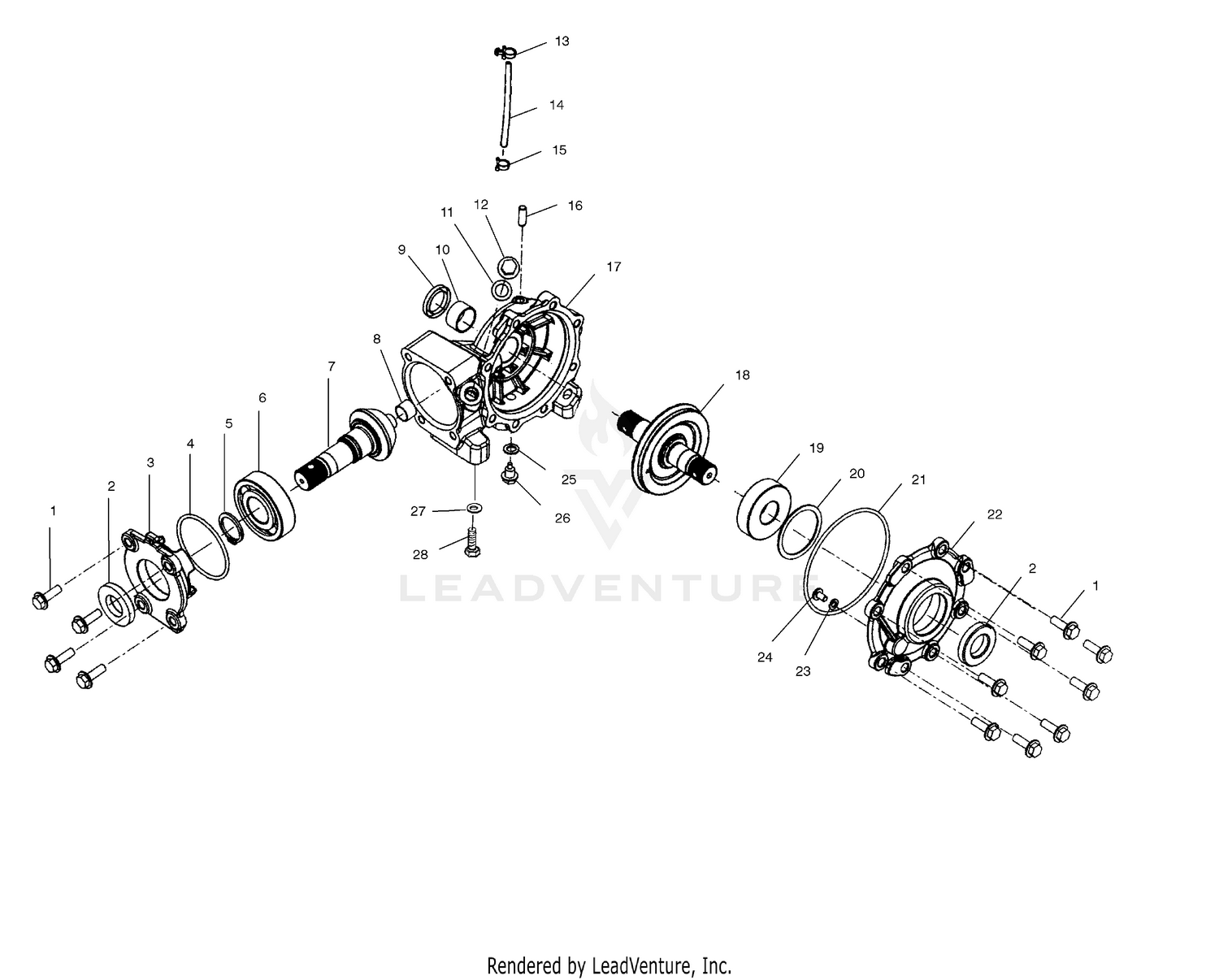

Front Housing - A02cg25ca (4969856985a14) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Screw
3233252
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Seal, Triple Lip
3233248
Superseded by 3233788
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Cover, Front Housing Input
3233701
|
$49.59 | ||
|
Available to order. Add to View Price |
|||
|
#4
O-Ring
3233700
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
Ring, Retaining
3233699
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING,BALL
3233589
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Pinion, Input
3233726
|
|||
|
Unavailable |
|||
|
#8
Bushing
3233541
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Seal
3233319
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Bushing
3233697
|
|||
|
Unavailable |
|||
|
#11
Washer
3233324
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Plug, Oil Fill
3233711
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Clip, Snap In
7080756
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Line, Fuel
8450003-1525
|
$89.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
CLAMP-HOSE, (LARGE GREEN)
7080307
|
$0.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
Tube, Vent
3233524
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Gearcase
3233696
|
$341.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Shaft, Output
3233725
|
|||
|
Unavailable |
|||
|
#19
BEARING
3233020
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Shim
3233554
|
$39.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
O-Ring
3233693
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Cover, Output, Front Housing
3233724
|
|||
|
Unavailable |
|||
|
#23
Shim
3233583
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
THRUST BUTTON
3233582
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Washer, Plug
3233254
|
$9.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
Plug
3233253
Superseded by 3233777
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
Screw
7512492
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
Washer
7552603
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#
Asm., Front Gearcase
1341323
|
$1,264.99 | ||
|
Available to order. Add to View Price |
|||
