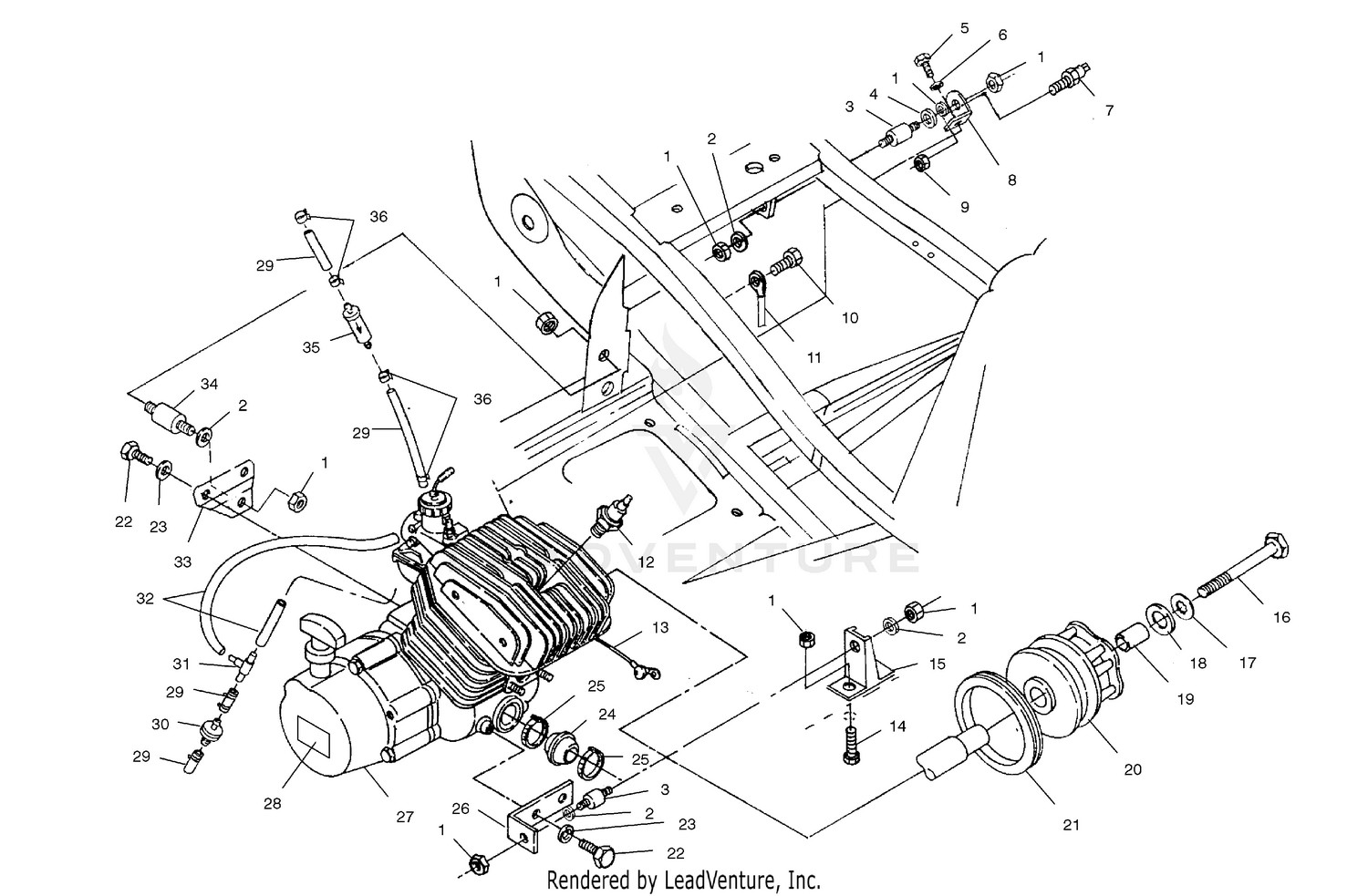

Engine Mounting - A02cg25ca (4969856985a07) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Nut
7547108
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Washer, Flat
7555823
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
MOUNT,MOTOR
3110026
Superseded by 3022067
|
$49.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
Insulator, Motor Mount
5430802
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Bolt
7512315
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
Washer, Spring Lock
7552901
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
Switch, Temperature, 260 Degrees
4010284
|
|||
|
Unavailable |
|||
|
#8
Bracket, Engine Mount, Top
5244119-067
|
|||
|
Unavailable |
|||
|
#9
Nut, FLEXLOC
7542103
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Screw
7512232
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
Cable, Ground, Engine, Small Hole
4010132
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Spark Plug, NGK BR8ES
3070156
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Cable, Solenoid/Starter
4010129
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Bolt
7512457
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Mount, Engine, Front
1040687-067
|
$19.59 | ||
|
Available to order. Add to View Price |
|||
|
#16
Bolt
7512566
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER-7/16-INT LK-(1222)-Z
7575202
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER-.440X1.25X.190 FL-Y
5210748
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BUSHING-.437 X.770 X.50
5430261
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
ASM., DRIVE CLUTCH, BASIC ATV-08
-------
|
|||
|
Unavailable |
|||
|
#21
SEAL, COVER, CASE
-------
|
|||
|
Unavailable |
|||
|
#22
Screw
7512490
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Washer, Spring Lock
7552603
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
Boot, Clutch Intake
5410421
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Clamp
7080511
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
Bracket, Engine Mount, Front
5242896-067
|
|||
|
Unavailable |
|||
|
#27
Engine, Short Block [EC25PFE5]
3084717
|
|||
|
Unavailable |
|||
|
#28
Decal, Drain Recoil
7078577
|
|||
|
Unavailable |
|||
|
#29
Line, Fuel
8450040-600
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
Valve, Check, Vent
7051011
|
$9.29 | ||
|
Available to order. Add to View Price |
|||
|
#31
Fitting, Tee
7052005
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
Line, Fuel
8360009-600
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
Bracket, Engine Mount, Rear
5242897-067
|
|||
|
Unavailable |
|||
|
#34
ISOLATOR-3/8-24M/M,60DURO
3110028
Superseded by 3022068
|
$30.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
Filter
2530009
|
$7.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
HOSE CLAMP, RED
7080003
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
