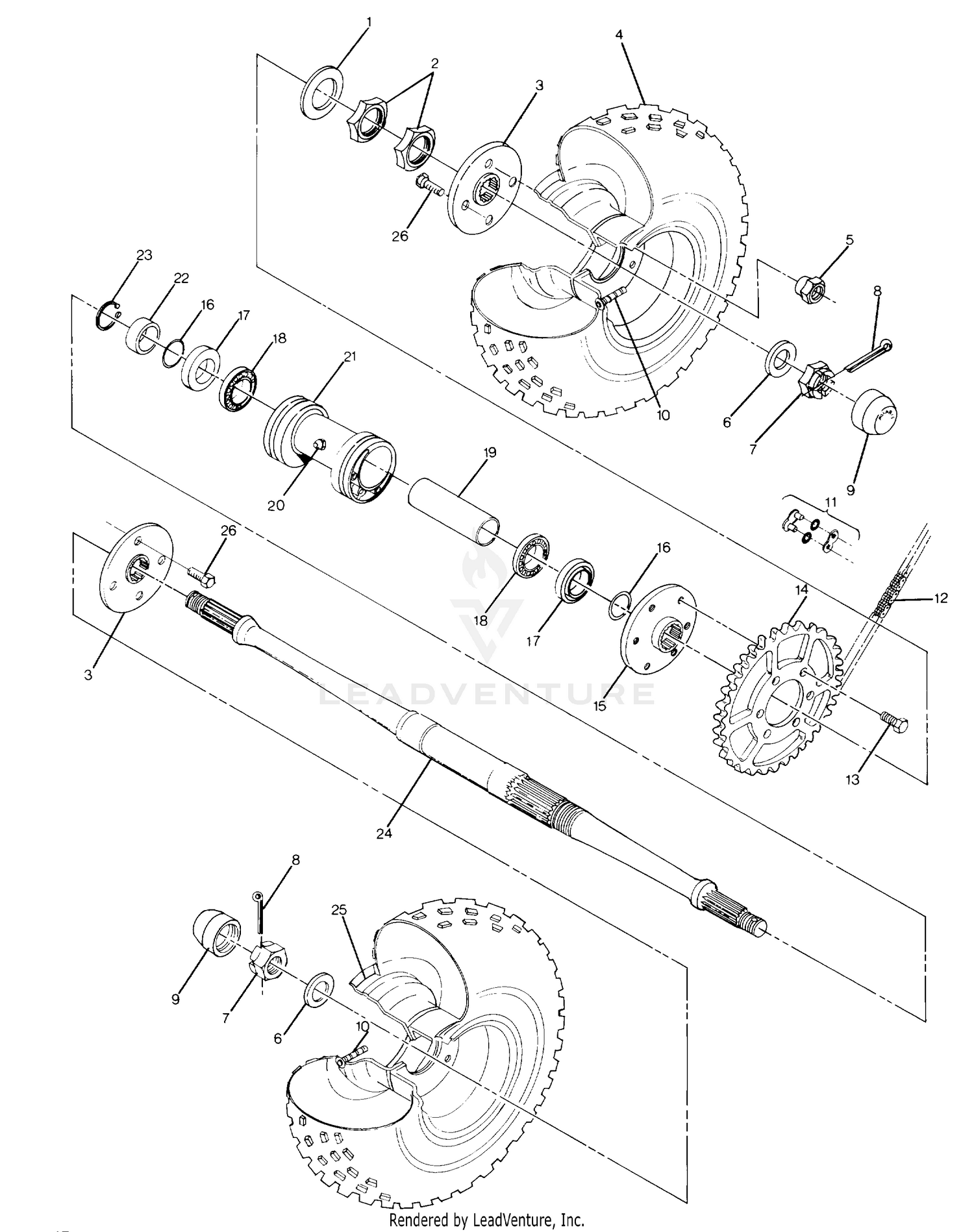

Rear Wheel Drive Assembly (4916341634017a) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WASHER(10)
7555764
|
$2.99 | ||
|
Unavailable |
|||
|
#2
NUT, JAM
5020468
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
KIT, MACH.HUB
5130664
Superseded by 2200341
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
TIRE,R(24X11-10)
5410466
|
|||
|
Unavailable |
|||
|
#5
NUT, WHEEL(10)
7542714
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER(10)
7555745
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, CASTLE(10)
7543005
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN, COTTER(10)
7661404
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
Cover, Dust
5410404
Superseded by 5413427
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
VALVE-RIM
1525017
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CONNECTOR LINK
3225024
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CHAIN-520 ORD4,O-RING,86 PTCH
3224046
Superseded by 3221193-086
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT(10)
7515488
|
|||
|
Available to order. Add to View Price |
|||
|
#14
SPKT,36T,R.AXLE,(ATV)
3222046
Superseded by 3222109
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPROCKET HUB ASM.
5630320
Superseded by 1520170
|
$92.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
O RING, 1 5/16(10)
5410415
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
SEAL, REAR AXLE
3610013
|
$19.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BEARING, BALL
3515501
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
NOT AVAILABLE
5010204
Superseded by 9999999
|
|||
|
Available to order. Add to View Price |
|||
|
#20
FITTING,LUBE.W/BALL CK.(10)
7080306
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
HOUSING, AXLE
5130663
|
$97.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPACER,BEARING
5010206
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
RING, SNAP(10)
7710405
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
AXLE, REAR
5020504
|
$239.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
RIM,REAR,PRIMED Substituted by 1520114
1520128
|
|||
|
Unavailable |
|||
|
#26
BOLT, WHEEL(10)
7512673
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
