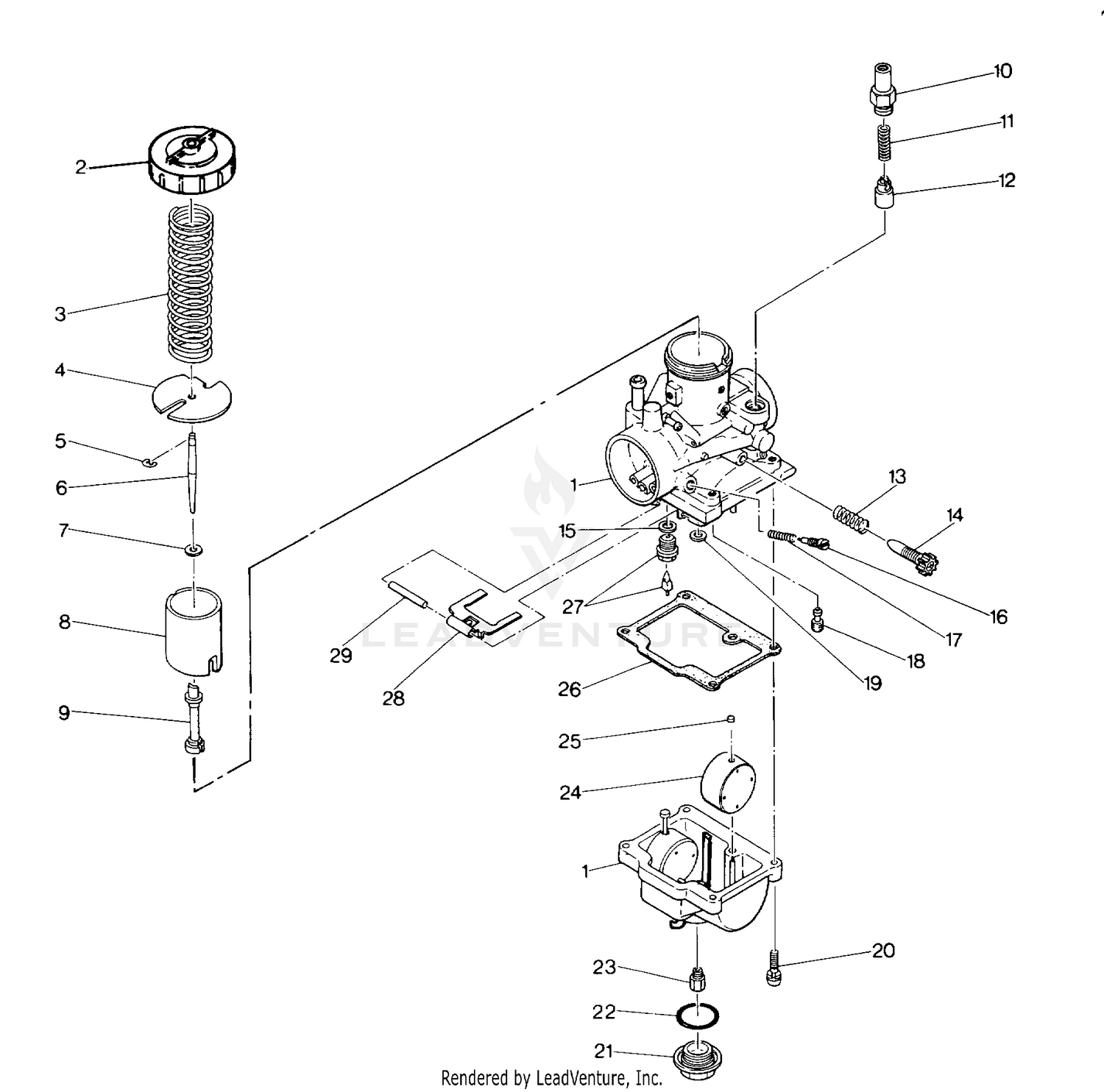

Carburetor Assembly (4916341634035a) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR Substituted by 3130424
3130383
|
|||
|
Unavailable |
|||
|
#2
TOP,MIX CHAMBER
3130060
|
|||
|
Unavailable |
|||
|
#3
SPRING,THROTTLE
3130354
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLATE,THROTTLE
3130002
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
E-Ring
3130003
Superseded by 3130508
|
$7.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
JET NEEDLE
3130155
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER
3130355
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
VALVE,THROTTLE,(2.0)
3130420
|
$189.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
JET,NEEDLE(0-4),169
3130409
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP, PLUNGER
3130359
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, PLUNGER
3130006
Superseded by 3131764
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLUNGER ASM, STARTER
3130328
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING,THROTTLE ADJ.
3130010
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW,THROTTLE STOP
3130324
Superseded by 3130009
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
PACKING(10) Substituted by 3130017
3080524
|
|||
|
Unavailable |
|||
|
#16
SCREW,AIR
3130011
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING,AIR ADJUST
3130012
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
JET,PILOT,#40(10)
3130067
|
$9.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
WASHER (10)
3130014
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
SCREW & WASHER(10)
3130025
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT,BANJO Substituted by 3130321
3082471
|
|||
|
Unavailable |
|||
|
#22
O RING
3130239
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
JET,MAIN,HX.HD.#145
3130112
|
$6.19 | ||
|
Available to order. Add to View Price |
|||
|
#24
FLOAT ASM Substituted by 3130021
3080534
|
|||
|
Unavailable |
|||
|
#25
CAP,(10)
3130237
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
PACKING,FLOAT CHAMBER
3130020
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
VALVE, NEEDLE
3130360
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
ARM,FLOAT
3130018
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
PIN, FLOAT
3130361
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
