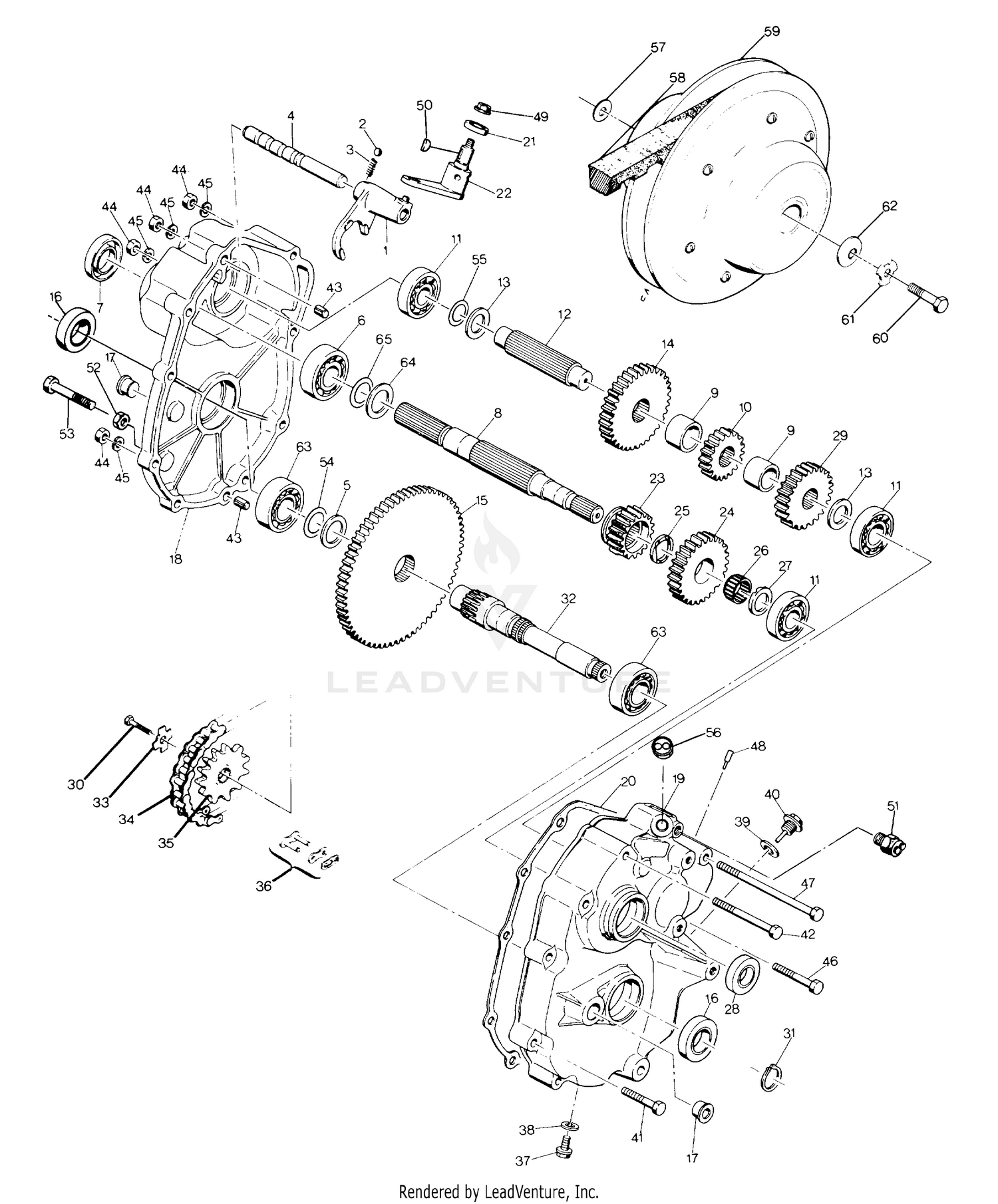

Gearcase Assembly (4916341634025a) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHIFTER
3231501
|
$97.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BALL, STEEL
3231502
|
|||
|
Unavailable |
|||
|
#3
SPRING
3231550
|
$1.29 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHAFT, SHIFT
3231504
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER [No Longer Available]
3231575
|
|||
|
Unavailable |
|||
|
#6
BEARING
3231506
|
|||
|
Unavailable |
|||
|
#7
SEAL, OIL
3231507
|
|||
|
Unavailable |
|||
|
#8
SHAFT,INPUT
3231508
|
$58.99 | ||
|
Unavailable |
|||
|
#9
COLLAR
3231509
|
|||
|
Unavailable |
|||
|
#10
GEAR
3231510
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING
3231511
|
|||
|
Unavailable |
|||
|
#12
SHAFT
3231512
|
|||
|
Unavailable |
|||
|
#13
WASHER
3231513
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
GEAR
3231514
|
|||
|
Unavailable |
|||
|
#15
GEAR
3231515
|
$191.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SEAL, OIL Substituted by 3231516
3231570
|
|||
|
Unavailable |
|||
|
#17
SUPPORT
3231517
|
|||
|
Unavailable |
|||
|
#18
CASE, LH
3231571
|
|||
|
Unavailable |
|||
|
#19
CASE, RH Substituted by 3231583
3231572
|
|||
|
Unavailable |
|||
|
#20
PACKING
3231553
|
|||
|
Available to order. Add to View Price |
|||
|
#21
SEAL, OIL
3231521
|
|||
|
Unavailable |
|||
|
#22
SHAFT, SELECT
3231559
|
$41.59 | ||
|
Available to order. Add to View Price |
|||
|
#23
GEAR Substituted by 3231585
3231523
|
|||
|
Unavailable |
|||
|
#24
GEAR
3231524
|
|||
|
Available to order. Add to View Price |
|||
|
#25
WASHER
3231525
|
|||
|
Unavailable |
|||
|
#26
BEARING,NEEDLE
3231526
|
|||
|
Unavailable |
|||
|
#27
WASHER
3231527
|
|||
|
Unavailable |
|||
|
#28
SEAL, OIL
3231528
|
|||
|
Unavailable |
|||
|
#29
GEAR
3231529
|
|||
|
Unavailable |
|||
|
#30
BOLT(10)
7512391
|
|||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
C RING
3231531
|
|||
|
Unavailable |
|||
|
#32
SHAFT, OUTPUT
3231573
|
$137.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER,SHAKEPROOF,5/16
7577902
|
|||
|
Unavailable |
|||
|
#34
CHAIN, DRIVE
3224043
|
$118.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
SPKT, 11T
3221043
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
SPKT, 12T
3221044
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
SPKT,13T,SPLINED
3221045
Superseded by 3221041
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
CONNECTOR LINK
3225024
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
PLUG,DRAIN,20MM,MAGNET
3231569
|
|||
|
Unavailable |
|||
|
#38
GASKET [No Longer Available]
3231538
|
|||
|
Unavailable |
|||
|
#39
GASKET
3231539
|
|||
|
Unavailable |
|||
|
#40
PLUG, OIL
3231561
|
|||
|
Unavailable |
|||
|
#41
BOLT [No Longer Available]
3231541
|
|||
|
Unavailable |
|||
|
#42
BOLT [No Longer Available]
3231542
|
|||
|
Unavailable |
|||
|
#43
PIPE, KNOCK
3231543
|
|||
|
Unavailable |
|||
|
#44
NUT(10) [No Longer Available]
3231544
|
|||
|
Unavailable |
|||
|
#45
WASHER, SPRING(10)
3231545
|
|||
|
Unavailable |
|||
|
#46
BOLT [No Longer Available]
3231546
|
|||
|
Unavailable |
|||
|
#47
BOLT [No Longer Available]
3231547
|
|||
|
Unavailable |
|||
|
#48
PIPE,BREATHER
3231548
|
|||
|
Unavailable |
|||
|
#49
NUT, LOCK
3231555
|
|||
|
Unavailable |
|||
|
#50
KEY, HI-PRO
7721113
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
SW,REV./NEUT.INDIC.
4110062
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#52
NUT(10)
7542404
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#53
BOLT(10)
7515485
|
$3.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#54
SHIM 25, 0.3
3231576
|
|||
|
Unavailable |
|||
|
#54
SHIM 25, 0.1
3231577
|
|||
|
Unavailable |
|||
|
#55
SHIM 20, 0.3
3231564
|
|||
|
Unavailable |
|||
|
#55
SHIM 20, 0.1
3231565
|
|||
|
Unavailable |
|||
|
#56
SW,REV./NEUT.INDIC.
4110062
|
$39.99 | ||
|
Unavailable |
|||
|
#57
SPACER, DRIVEN
5211041
|
|||
|
Unavailable |
|||
|
#58
Belt, Drive
3211048
Superseded by 3211077
|
$79.99 | ||
|
Unavailable |
|||
|
#59
CLUTCH,DRIVEN,HVY RET
1322112
Superseded by 1322180
|
$614.99 | ||
|
Available to order. Add to View Price |
|||
|
#60
SCR-HH-5/16-18X4 GR5 ZY3
7515327
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#61
LOCK WASHER(10)
7552901
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#62
WASHER, DOMED(10)
5220646
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#63
BEARING
3231574
|
|||
|
Unavailable |
|||
|
#64
WASHER
3231505
|
|||
|
Unavailable |
|||
|
#65
SHIM 25, 0.3
3231562
|
|||
|
Unavailable |
|||
|
#65
SHIM 25, 0.1
3231563
|
|||
|
Unavailable |
|||
|
#
GEARCASE ASM.(2X4) [Cannot Purchase as Assembly]
1341058
|
|||
|
Unavailable |
|||
