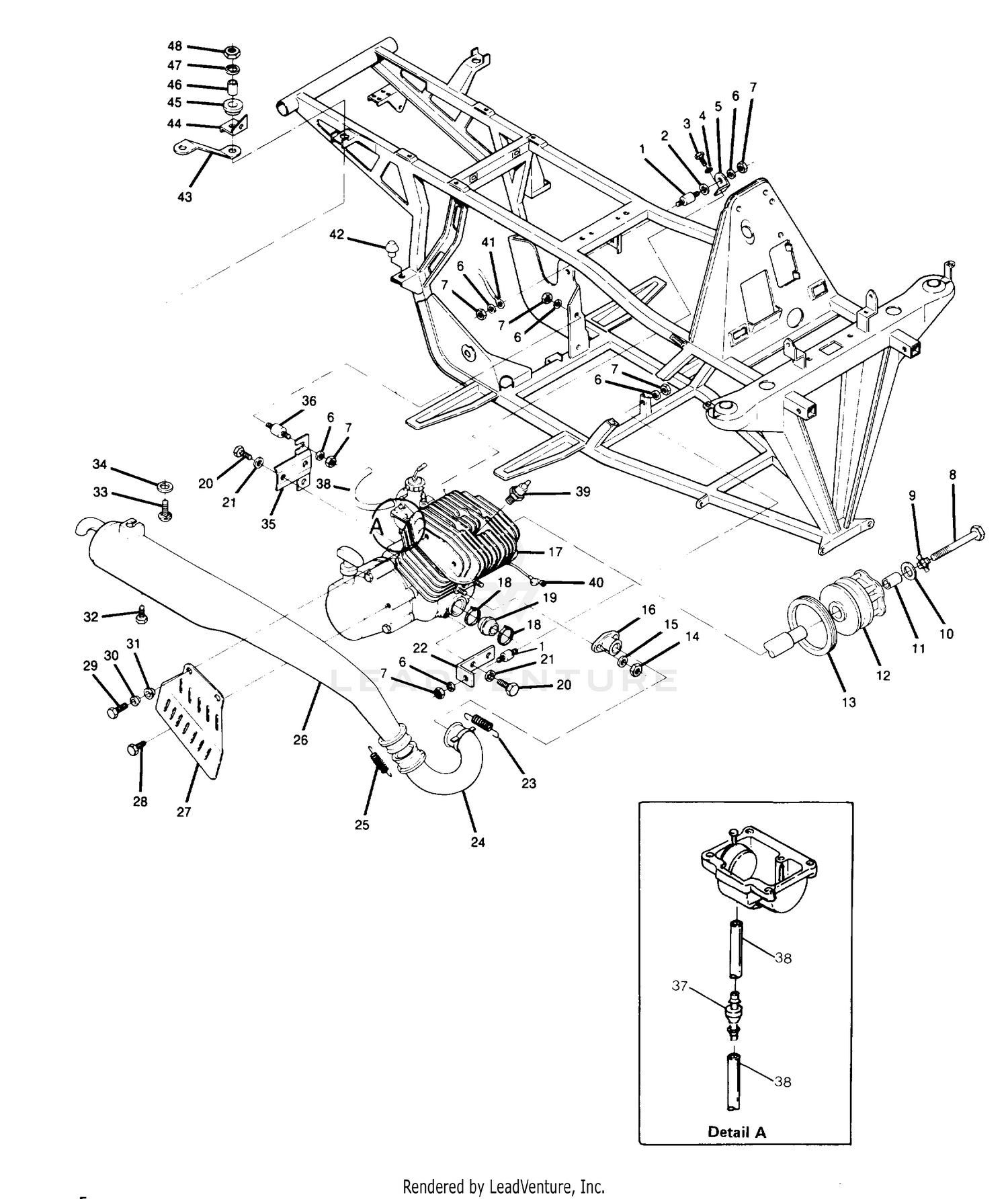

Engine And Muffler Mounting (4916341634005a) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MOUNT,MOTOR
3110026
Superseded by 3022067
|
$49.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
INSULATOR,MOTOR MT.
5430802
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT(10)
7515321
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
LOCK WASHER(10)
7552901
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
MOUNT,ENG.,TOP Substituted by 5220471-067
5220471
|
|||
|
Unavailable |
|||
|
#6
WASHER(10)
7555801
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT LOCK(10)
7542403
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
BOLT(10)
7512566
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER-7/16-INT LK-(1222)-Z
7575202
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER-.440X1.25X.190 FL-Y
5210748
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
BUSHING-.437 X.770 X.50
5430261
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Asm., Drive Clutch, Basic
1321497
Superseded by 1321976
|
$719.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SEAL,ENG./CLUTCH
5410411
|
|||
|
Unavailable |
|||
|
#14
Nut
3080285
Superseded by 3087199
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER LOCK ,(10)
3080530
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
MANIFOLD Substituted by 1260543-029
1260543
|
|||
|
Unavailable |
|||
|
#17
ENG.EC25PF-05(ATV) [No Longer Available]
1211460
|
|||
|
Unavailable |
|||
|
#18
CABLE, TIE
7080346
|
|||
|
Unavailable |
|||
|
#19
BOOT,CLUTCH INTAKE
5410421
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW(10)
7512490
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, SPRING LOCK
7553001
Superseded by 7552603
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
PLATE,FR.MTR.MT. Substituted by 5220881-067
5220881
|
|||
|
Unavailable |
|||
|
#23
SPRING-EXHAUST(10)
7042029
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
WELD-HEADPIPE,TRAIL BOSS,BLK
1260540
Superseded by 1260540-489
|
$118.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SPRING-EXHAUST
7042031
Superseded by 7041687
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
WELD-MUFFLER,SPARK ARRESTR,BLK
1260535
Superseded by 1260535-489
|
$609.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SHIELD,MUFFLER,BLACK Substituted by 5220671-067
5222117
|
|||
|
Unavailable |
|||
|
#28
BOLT&WASHER
3083729
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT&WASHER
3083730
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
COLLAR
3083732
|
|||
|
Unavailable |
|||
|
#31
MOUNTING,RUBBER
3083731
|
$6.19 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT(10)
7512666
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT(10)
7515316
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
WASHER,RUBBER
5410436
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
MT,R.A/C(ATV),BLK.
5220757
Superseded by 5241056-067
|
$31.99 | ||
|
Unavailable |
|||
|
#36
ISOLATOR-3/8-24M/M,60DURO
3110028
Superseded by 3022068
|
$30.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
Valve, Check
7052047
Superseded by 7051011
|
$9.29 | ||
|
Available to order. Add to View Price |
|||
|
#38
Line, Fuel
5521087
Superseded by 8360009-600
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
SPARKPLUG, RN4YC(3)
3070167
|
|||
|
Unavailable |
|||
|
#40
INSULATOR-CABLE
5410346
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
CABLE,GROUND/ENG.
4010067
|
|||
|
Unavailable |
|||
|
#42
DAMPNER, VIB.
5410467
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
SUPPORT,R.FENDER
5220902
Superseded by 5220902-067
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
BRKT,LH SUPPORT RACK Substituted by 5220899-067
5220899
|
|||
|
Unavailable |
|||
|
#44
BRKT,RH SUPPORT RACK Substituted by 5220901-067
5220901
|
|||
|
Unavailable |
|||
|
#45
Dampener, Vibration
5410241
Superseded by 5412508
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
BUSHING-RES. MT.
5010192
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
WASHER(10)
7555716
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
NUT-5/16-18 NYLOK-Y
7542324
|
$0.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
