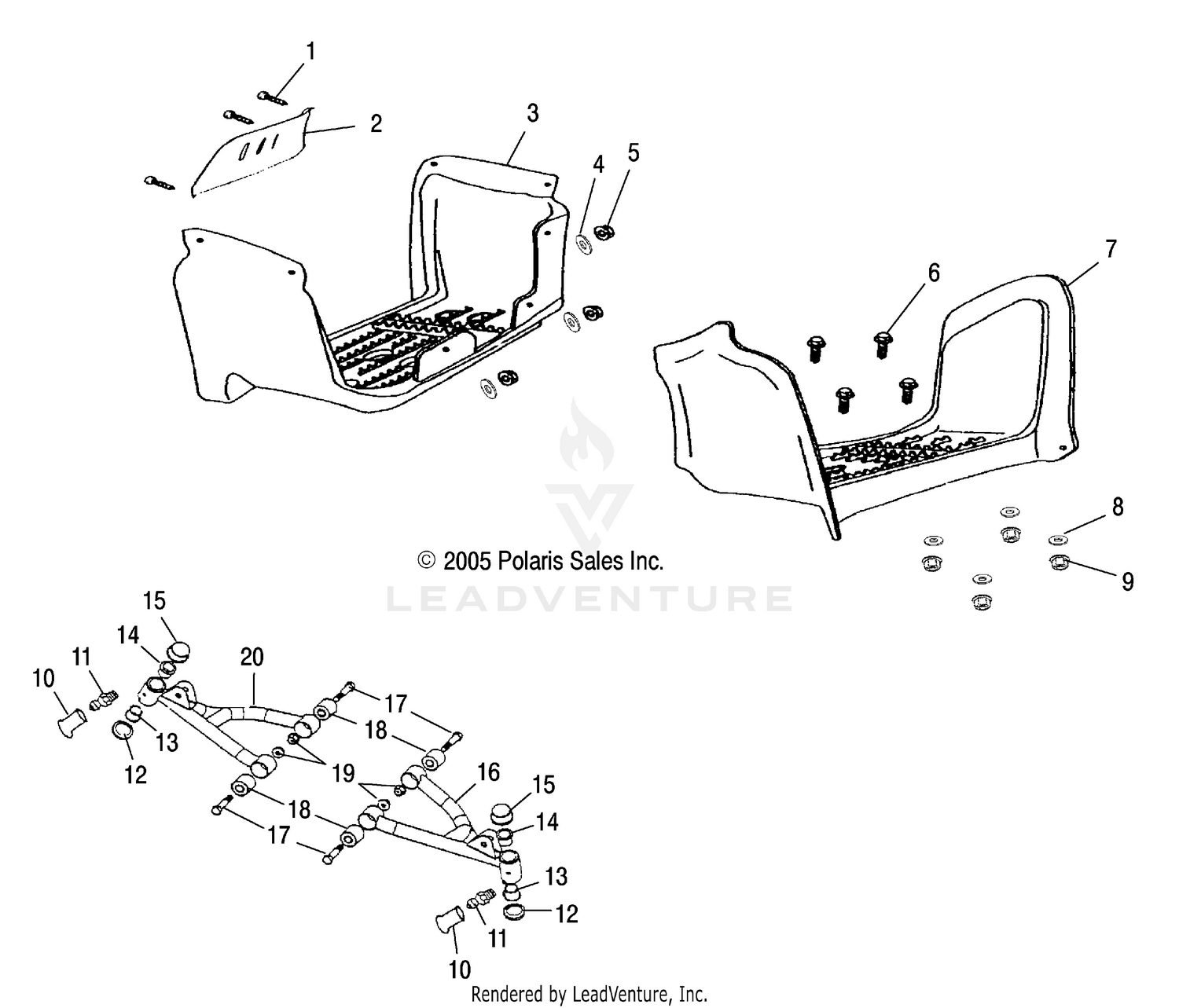

Swing Arm/footrest - A06fa09ca/cb/cc (4999202309920230b05) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Bolt, Pan, Phillips
0450622
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
Shield, Heat
0450618
|
|||
|
Unavailable |
|||
|
#3
Footrest, RH
0453198
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Washer, Plain
0450710
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
Nut, Lock
0450741
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Bolt, Hex
0452215
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Footrest, LH
0453197
|
|||
|
Unavailable |
|||
|
#8
Washer, Plain
0450879
|
|||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
Nut, Lock
0450808
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Cap, Rubber
0450321
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Valve, Grease
0450320
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Rubber, Dustproof
0450317
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Seat, Grease Contain
0450314
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Seat, Grease Contain
0450313
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Cover
0450316
Superseded by 0451811
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Arm, Suspension, LH
0451705
|
$102.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Bolt, Hex
0450820
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Bushing
0450288
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Nut, Flange
0450249
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
Arm, Suspension, RH
0451706
|
$102.99 | ||
|
Available to order. Add to View Price |
|||
