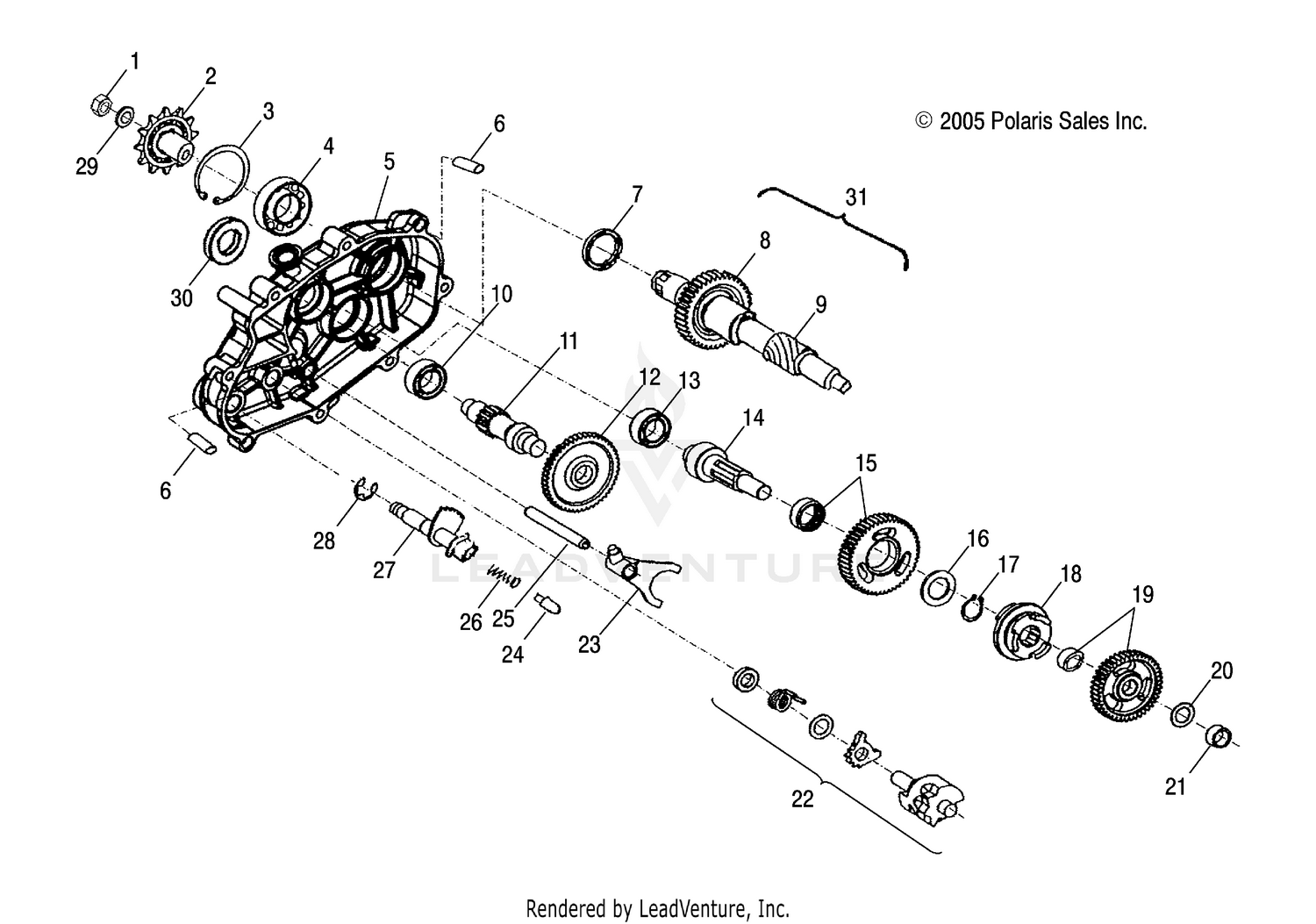

2006 Polaris SPORTSMAN 90 DRIVE SHAFT - A06FA09CA/CB/CC (4999202309920230A14) OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Nut, Lock
0450265
|
$3.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
Sprocket, Drive
0452143
|
$43.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
Ring, Snap, Internal
0450162
|
$4.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
BEARING, BALL
0450261
Superseded by 0453978
|
$48.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
Cover, Transmission
0452140
|
$205.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
Pin, Dowel
0450142
|
$1.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
Seal, Oil
0450259
|
$10.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
Gear, Final
0452142
|
$36.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
Shaft, Final
0452141
|
$94.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
Bearing, Ball
0450254
|
$25.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
Shaft, Counter
0452145
|
$62.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
Gear, Counter
0452146
|
$73.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
Bearing
0452156
|
$16.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
Shaft, Main Transmission
0452155
|
$110.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
Asm., Reverse Gear
0453312
|
$123.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
Washer, Flat
0452152
|
$1.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
Circlip, External
0450060
|
$1.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
Ratchet, Shift
0452151
|
$89.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
Asm., Spur Gear
0453220
|
$93.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
Washer, Flat
0452148
|
$1.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
Collar, Shaft
0452147
|
$9.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
Asm., Gear Shift Drum
0452159
|
$171.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
Fork, Shift
0452157
|
$59.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
Roller, Drum Sensor
0452163
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
Shaft, Gear Shift
0452158
|
$6.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
Spring, Drum Sensor
0452162
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
Spindle, Shift
0452160
|
$65.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#28
E-Clip
0452161
|
$1.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#29
Washer
0450264
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
Asm., Sight Glass
0452333
|
$10.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#31
Asm., Gear/Drive Shaft
0454103
|
|||
|
Unavailable |
|||
