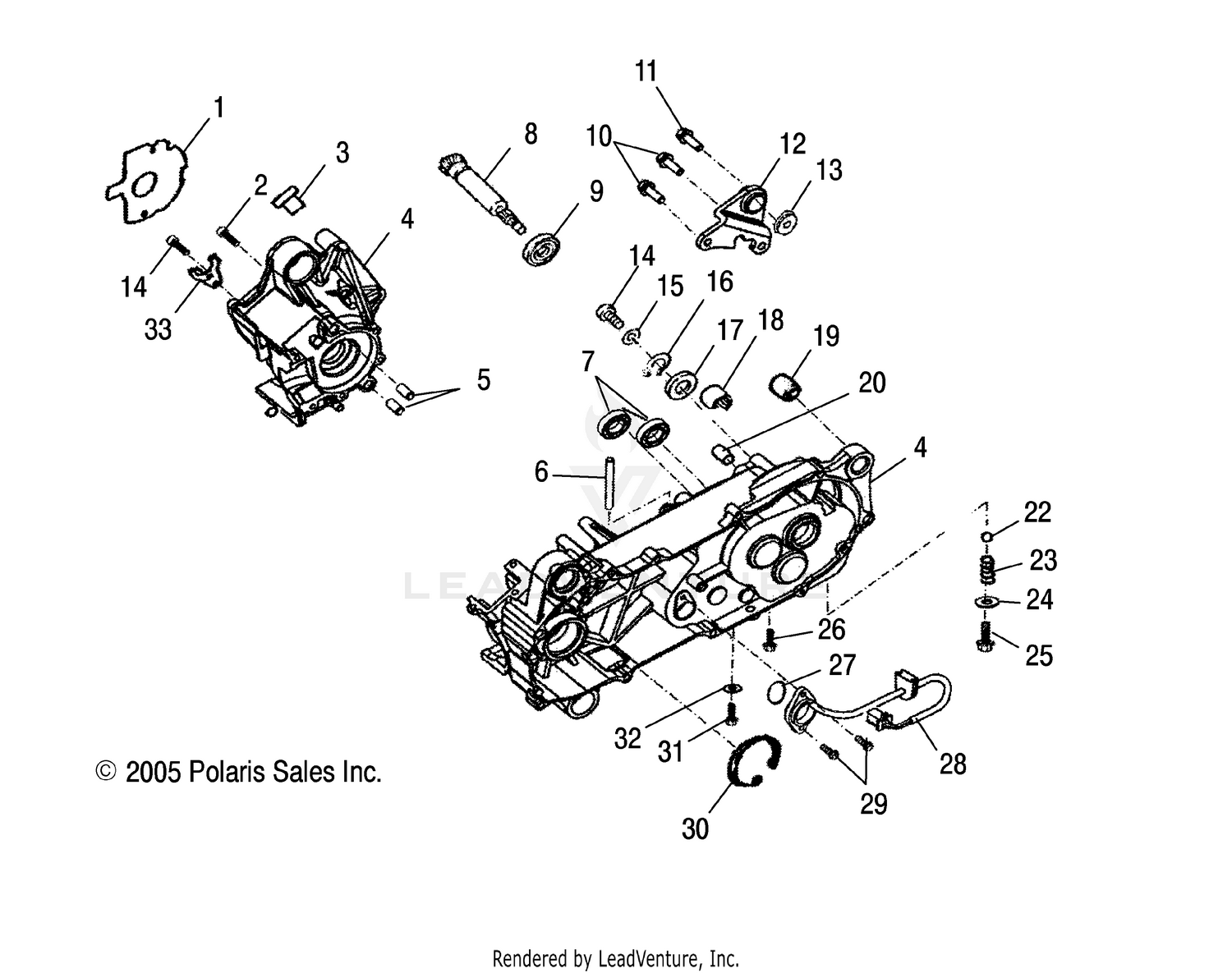

Crankcase - A06fa09ca/cb/cc (4999202399920239a10) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET-GENERATOR 11121-113-000
0450159
Superseded by 0455368
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Bolt
0450138
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Plug, Rubber
0450170
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Asm., Crankcase
0454187
|
|||
|
Available to order. Add to View Price |
|||
|
#5
Pin, Dowel
0450137
|
$2.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
Hose, Vent
0452127
Superseded by 0453515-170
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Bearing, Needle
0450254
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Shaft, Primary Drive
0452130
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Bearing
0450199
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Bolt, Hex
0450298
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
Bolt, Hex
0450684
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
Mount, Engine, Rear
0452131
|
|||
|
Unavailable |
|||
|
#13
Bushing, Rubber
0450132
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Bolt, Hex
0450158
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Washer
0450041
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
Circlip, External
0450198
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
Seal, Oil
0450200
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Bearing, Needle
0452139
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Bushing, Rubber
0451139
|
$8.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
Breather, Crankcase, Lower
0452125
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Ball, Steel
0452134
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Spring, Detent
0452135
Superseded by 0453033
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
Washer, Flat
0452136
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Bolt, Hex
0452137
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
Bolt, Hex
0452126
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
O-Ring
0452129
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
Sensor, Gear Position
0452128
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
Bolt, Hex, Flange
0452138
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
Circlip, Internal
0450162
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
Bolt, Hex
0452132
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
Washer, Flat
0452133
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
Bracket, Oil Seal
0450157
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
