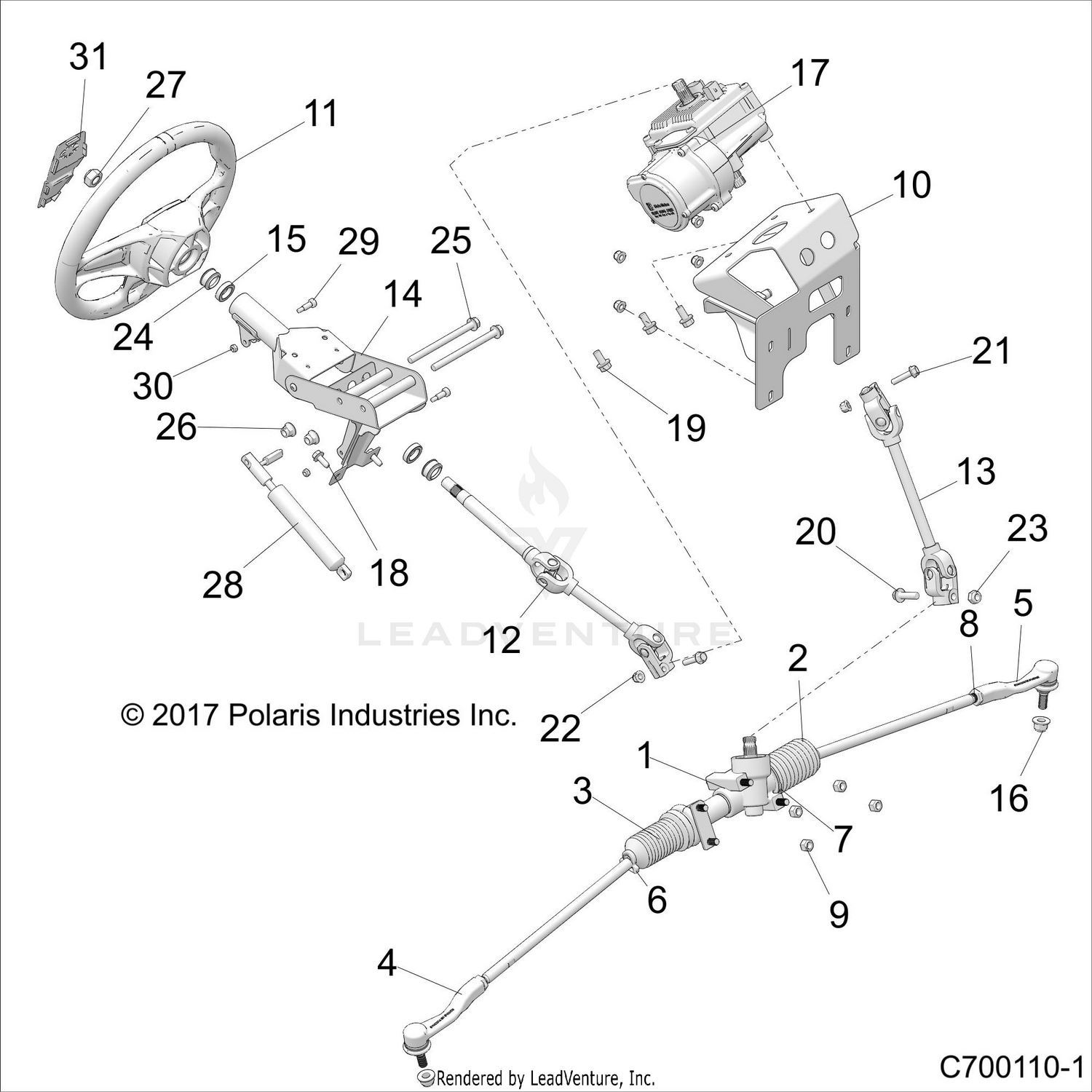

Steering, Power Steering Asm. - Z19vge99ak/aw/bk/bw (c700110-1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM-GEAR BOX,STEERING,1.5T
1824709
|
$699.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
D.S. BELLOWS
5416438
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
P.S. BELLOWS
5412013
|
$69.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
ROD-END,TAPERED,RH
7061216
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
ROD-END,TAPERED,LH
7061215
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLAMP, SMALL
7082150
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP, LARGE
7080979
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, JAM
2205058
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT-M10X1.25-HX-LOCK-Y
7547177
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WELD-PEDAL,EPS MNT,ECOAT
1024181-329
|
$189.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WHEEL-STEERING, 14"
1824212
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHAFT-STEERING,UPPER
1824503
|
$199.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SHAFT-STEERING LWR,EPS
1824504
|
$284.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
ASM-TILT,STEERING,RVTD,M10,BLK
1824617-458
|
$189.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING-STEERING
3514686
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
7547334
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
ASM-POWER STEERING,RZR,XP,1.5T
2413630
|
$2,134.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCR-TFHFL-M8X1.25X20 CHS ZOD
7518555
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCR-HXFL-M10X1.25X20 8.8 ZOD
7518558
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCR-M10X1.50X35 HX/FL
7518644
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCR-HXFL-M8X1.25X35 8.8 ZOD
7519052
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT-NY INS,M10X1.5,HEX,ZINC,YW
7547385
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
BUSHING-STEERING
7556675
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCR-HXFL-M10X1.25X130 8.8 ZOD
7518665
|
$16.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
NUT-HEX-M16X2, 8 ZC NYL
7547506
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
ASM-SHOCK,OIL LOCKING,MACH
7044098
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCR-SH-M6X1.0X11 12.9 ZB SHB
7519980
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT-6MM X 1 NYLOK-Z
7546703
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
CAP-STEERING WHEEL
5451356
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
