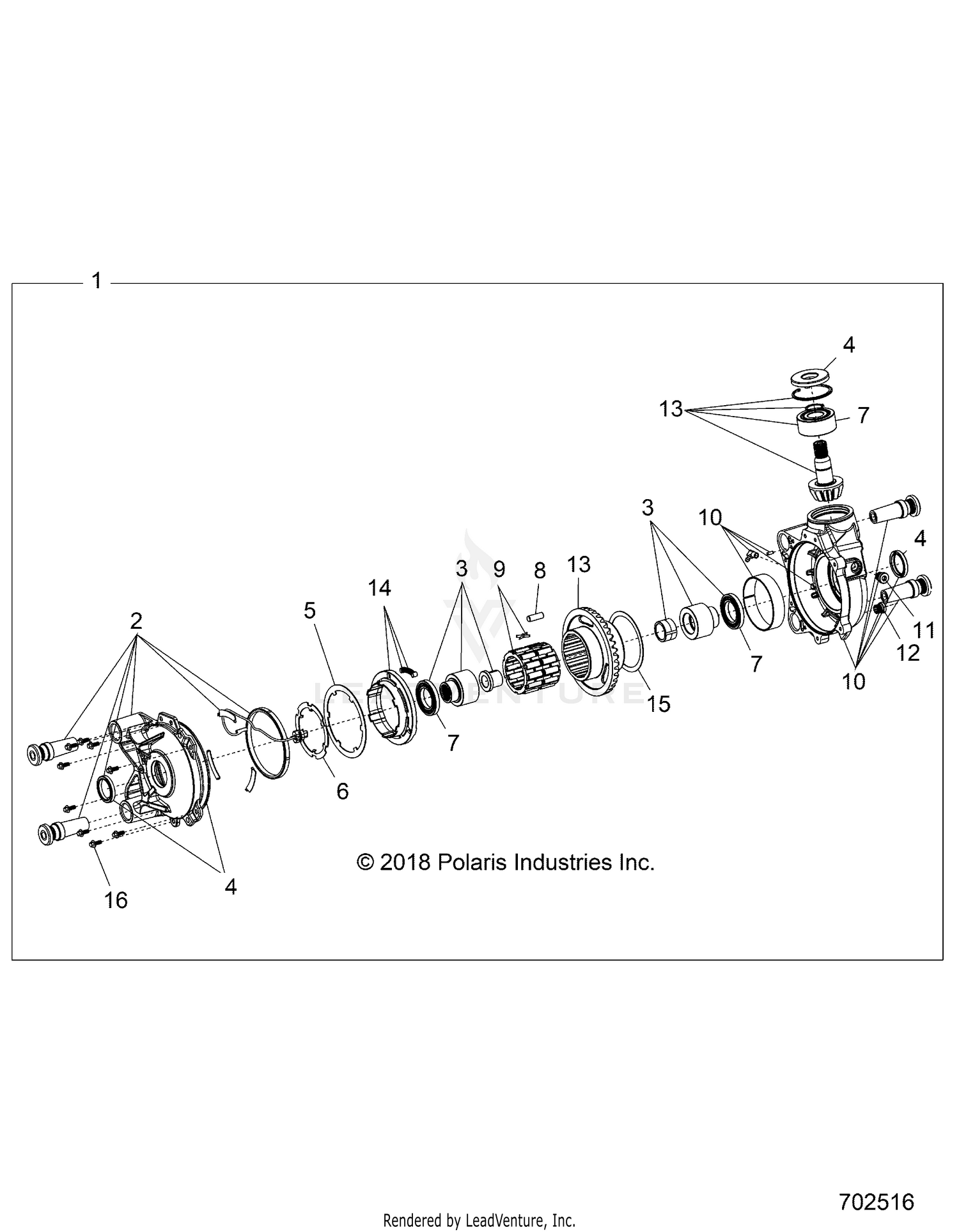

Drive Train, Front Gearcase - Z19vge99ak/aw/bk/bw (702516) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM., GEARCASE, FRONT
1334183
Superseded by 1334398
|
$1,399.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
ASM. COVER OUTPUT
3236200
|
$609.99 | ||
|
Unavailable |
|||
|
#3
ASM. OUTPUT HUB
3236353
|
$404.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
KIT, SEAL REPAIR
3236203
|
$87.99 | ||
|
Unavailable |
|||
|
#5
PLATE, 4WD ARMATURE
3236204
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, CAGE
3236205
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARINGS
3236206
|
$199.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CAGE ROLLERS
3236207
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
ASM, ROLL CAGE
3236208
|
$444.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
ASM-ROLL CAGE
3239336
|
$469.99 | ||
|
Unavailable |
|||
|
#10
ASM. GEARCASE
3236209
|
$1,769.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
KIT-PLUG,DRAIN
2203738
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
KIT-PLUG,FILL
2203739
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
ASM. GEAR HOUSING AND PINION GEAR
3236354
|
$964.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
TORSION RETAINER ASSEMBLY
3236211
|
$239.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPACER, GEAR
3236212
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
COVER, FASTENERS
3236202
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
