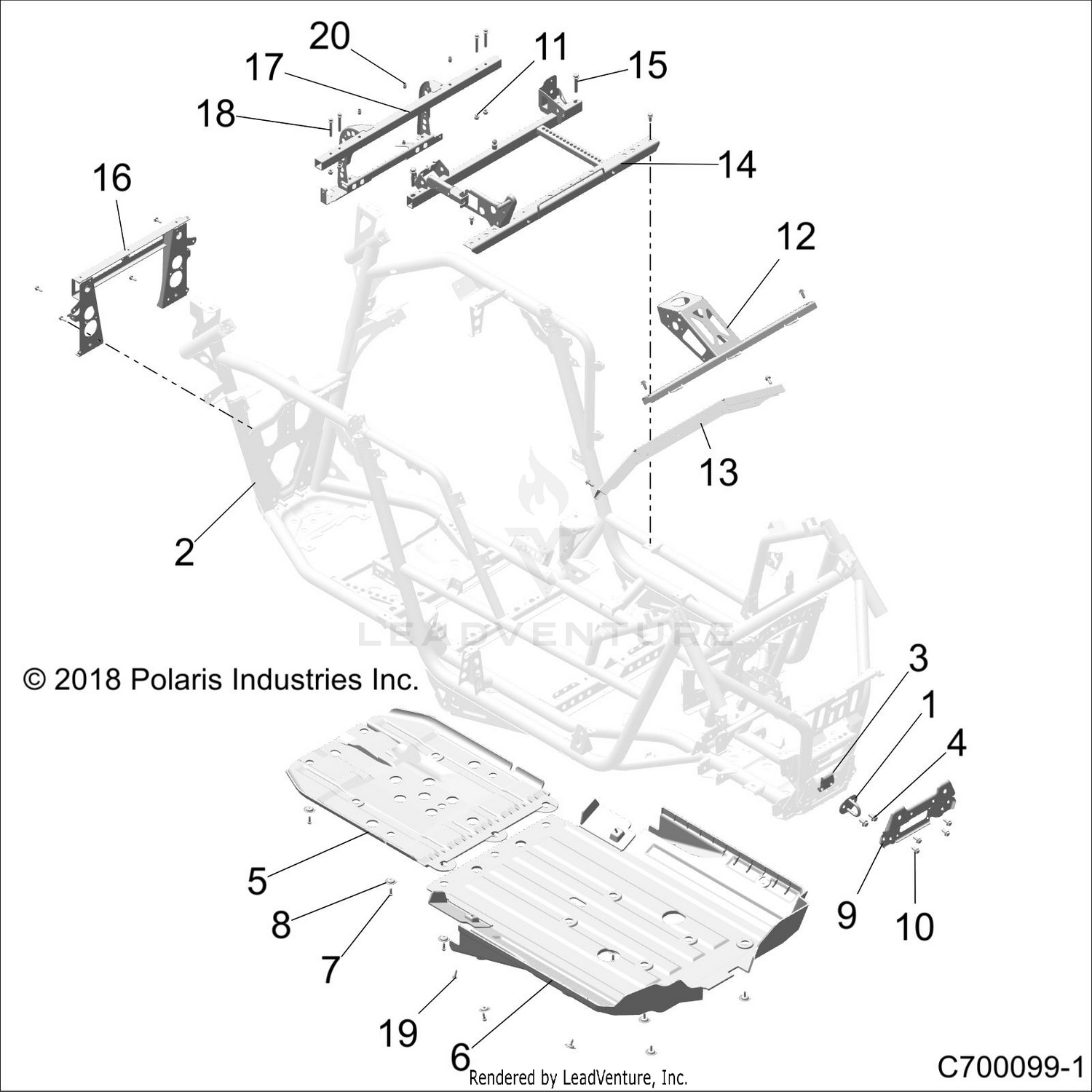

Chassis, Main Frame And Skid Plates - Z19vge99ak/aw/bk/bw (c700099-1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WELD-TOW HOOK,BLK
1020619-458
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
WELD-MAIN FRAME,BLK
1022228-458
|
$3,004.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BRKT-TOW HOOK BACKER,BLK
5264362-458
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCR-HXFL-M10X1.5X20 8.8 Z NYL
7518460
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
PLATE-SKID,REAR,BLK
5452063-070
|
$299.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE-SKID,BLK
5453981-070
|
$449.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
WASHER-SKID PLATE
7556065
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
BRKT-SUSP MNT,FRT,M.BLK
5259449-458
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCR-TFHFL-M8X1.25X20 CHS ZOD
7518555
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
WELD-DASH,BLK
1022316-329
|
$159.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BRKT-LWR STEERING SUPPORT,BLK
5263877-329
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WELD-SEAT BASE,BLK
1022314-329
|
$334.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCR-HXFL-M10X1.5X55 8.8 ZY3
7518474
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WELD-SUPPORT,REAR,BLK
1019529-458
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
WELD-CROSS SUPPORT,BLK
1024071-329
|
$209.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCR-M8X1.25X55,HX/FL-Y
7517281
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCR-TXTH-M6X1.0X25 ZFB
7519650
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
NUT-RIVNUT,M6X1.00
7547789
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
