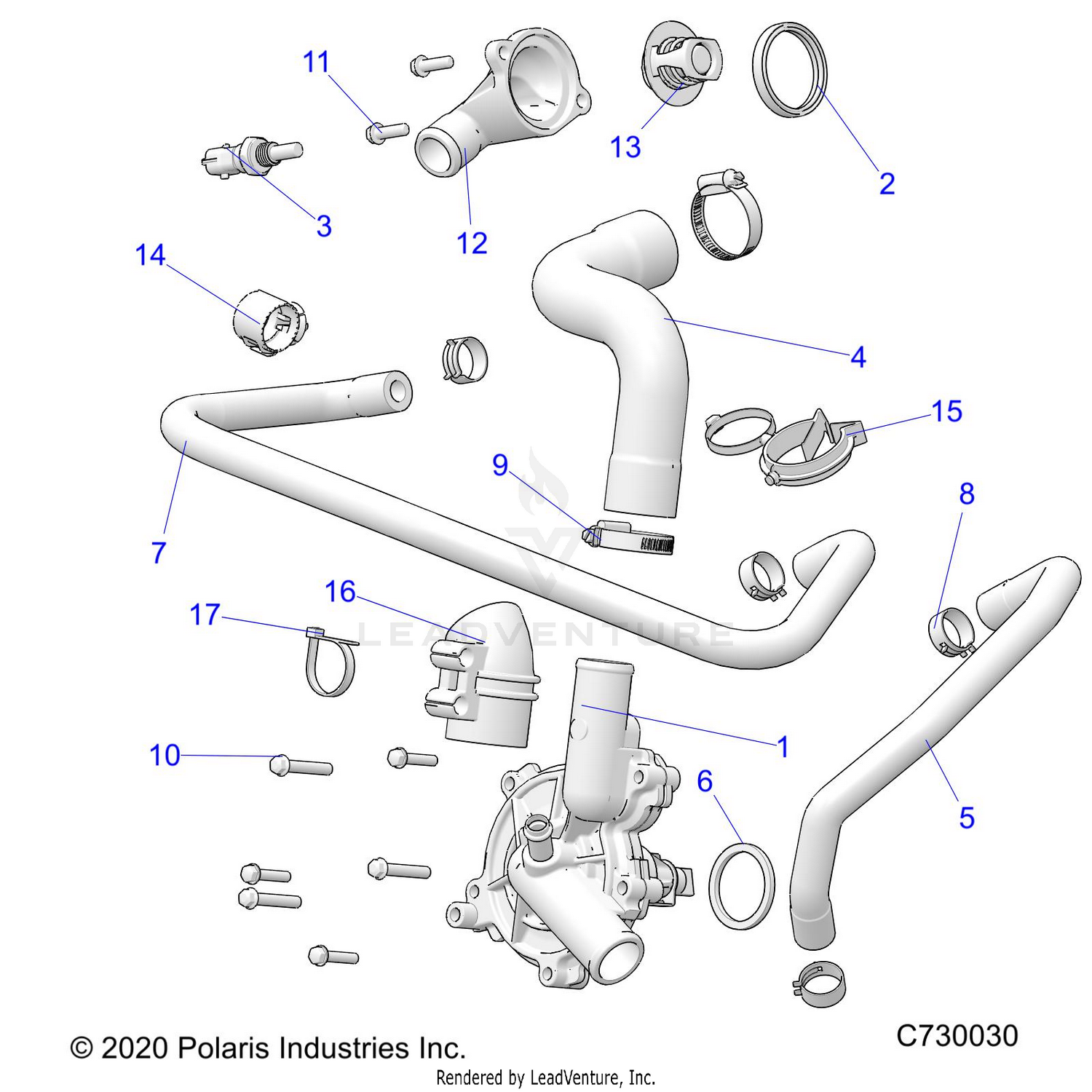

Engine, Waterpump And Bypass - R22t6a99a1/b1 (c730030) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM-WATERPUMP
1205015
|
$244.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SEAL-THERMOSTAT
5413948
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SENSOR-THERMISTER
4010644
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOSE-WATERPUMP,OUT
5416305
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOSE-OIL COOLER OUT
5416752
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
FILTER-WP
5814207
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOSE-BYPASS LINE
5416630
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP-HOSE,SPRING .81
7081026
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP-HOSE(WORM DR)25-40MM
7081192
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCR-HXFL-M6X1.0X35, W/PATCHLOK
7519280
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW-HXFL-M6X1.0X20 8.8 ZY3
7518576
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER-THERMOSTAT
5632606
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
THERMOSTAT-44M FLANGE,180F
7052496
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLIP-HOSE
5415088
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLIP-CABLE, OMEGA, 31-39MM
-------
|
|||
|
Unavailable |
|||
|
#16
SUPPORT-STATOR WIRE
5417378
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
