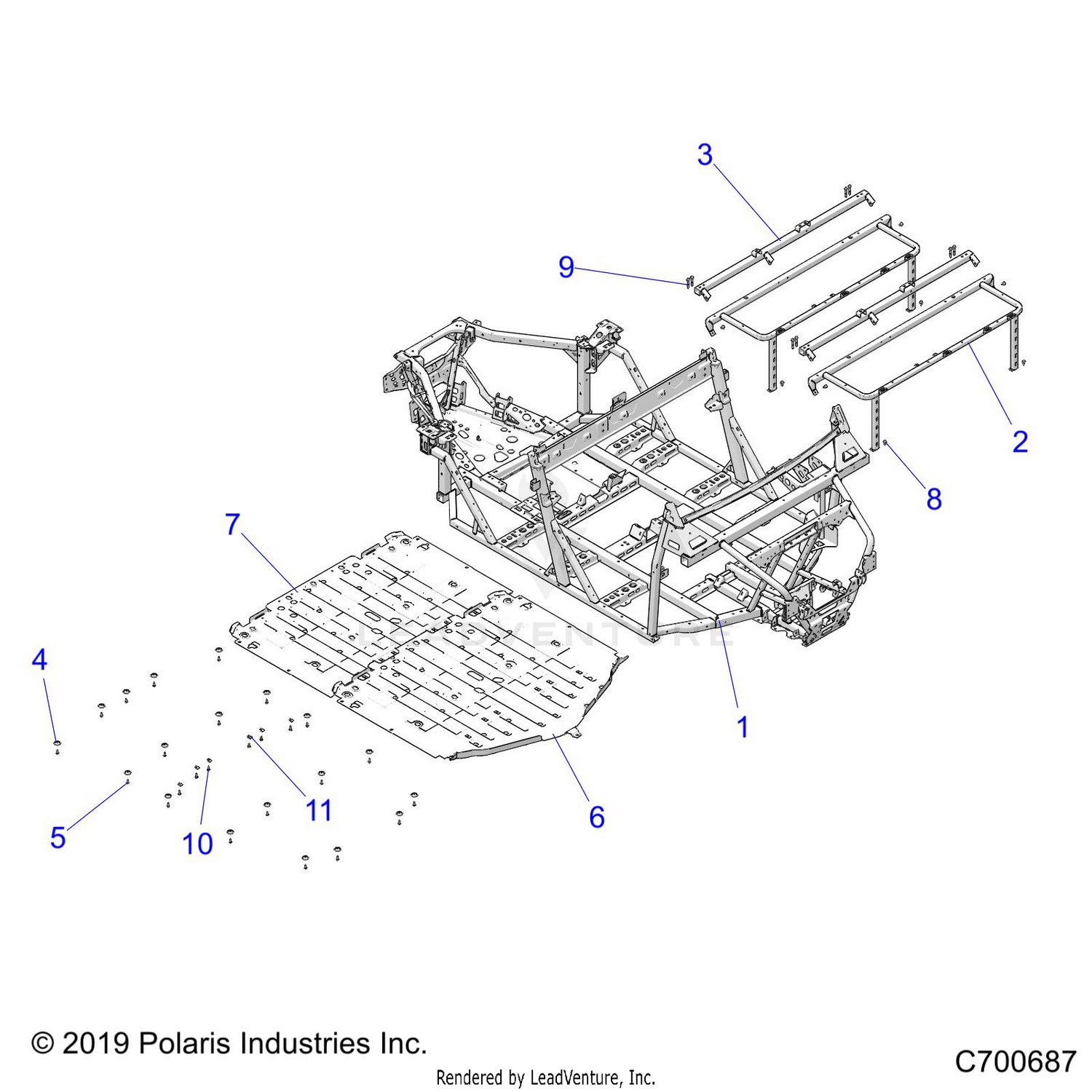

Chassis, Main Frame - R22t6a99a1/b1 (c700687) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
K-FRAME,MAIN,CREW,BLK
2209539
|
$2,904.99 | ||
|
Unavailable |
|||
|
#2
WELD-SEAT BASE,MAIN,ECOAT
1023944-329
|
$344.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WELD-CROSSBAR,ECOAT
1023943-329
|
$334.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER-SKID PLATE
7556065
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE-SKID, BLK
5456158-070
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE-SKID, REAR, BLK
5456137-070
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCR-TFHFL-M8X1.25X20 CHS ZOD
7518555
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCR-HXFL-M8X1.25X55 8.8 ZB
7520094
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCR-TXTH-M6X1.0X25 ZFB
7519650
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
NUT-M6-1.0, U-TYPE (2.5-3.8)
7547674
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
