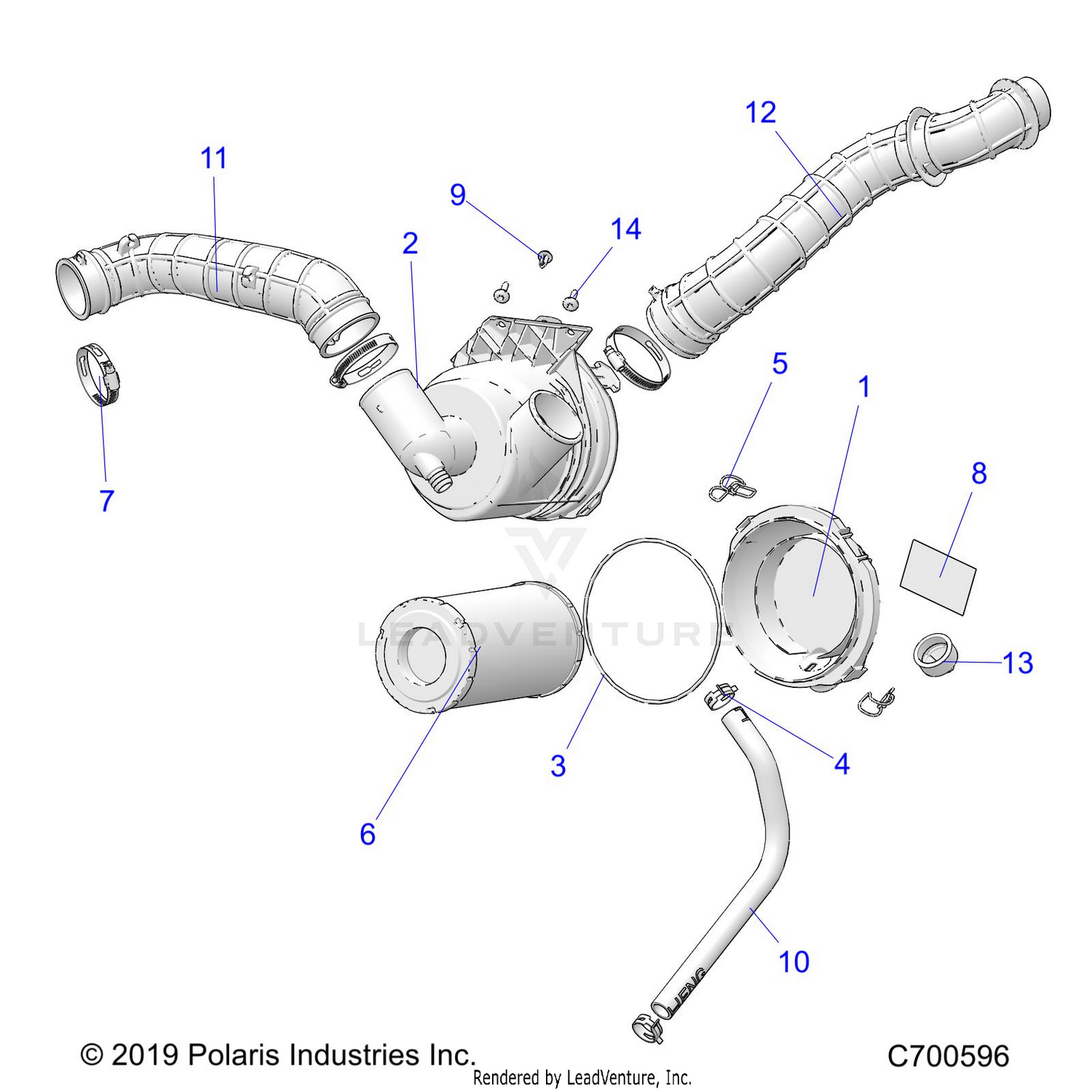

Engine, Air Intake System - R22t6a99a1/b1 (c700596) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM-AIRBOX COVER
1241256
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BASE-AIRBOX
5454859
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SEAL-AIRBOX
5814725
|
$28.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRINGBAND-CLAMP 27/12,GREEN
7080841
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
ASM-AIRBOX CLIP
7082449
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
FILTER-AIR
7082265
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
FILTER-HD,AIR INTAKE,220MM
7083113
|
$59.99 | ||
|
Unavailable |
|||
|
#7
CLAMP-HOSE SLOTTED,60-80 DIA
7082509
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
DECAL-CAUT.AIR BOX
7182652
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#9
RIVET-TUFLOK,.315-.325X.787
7661855
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
HOSE-VENT,ENGINE
5416590
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOSE-AIRBOX TO PLENUM
5416592
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOSE-AIRBOX TO SIDE PANEL
5416591
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOOT-PURGE VALVE,AIR BOX
5417149
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
