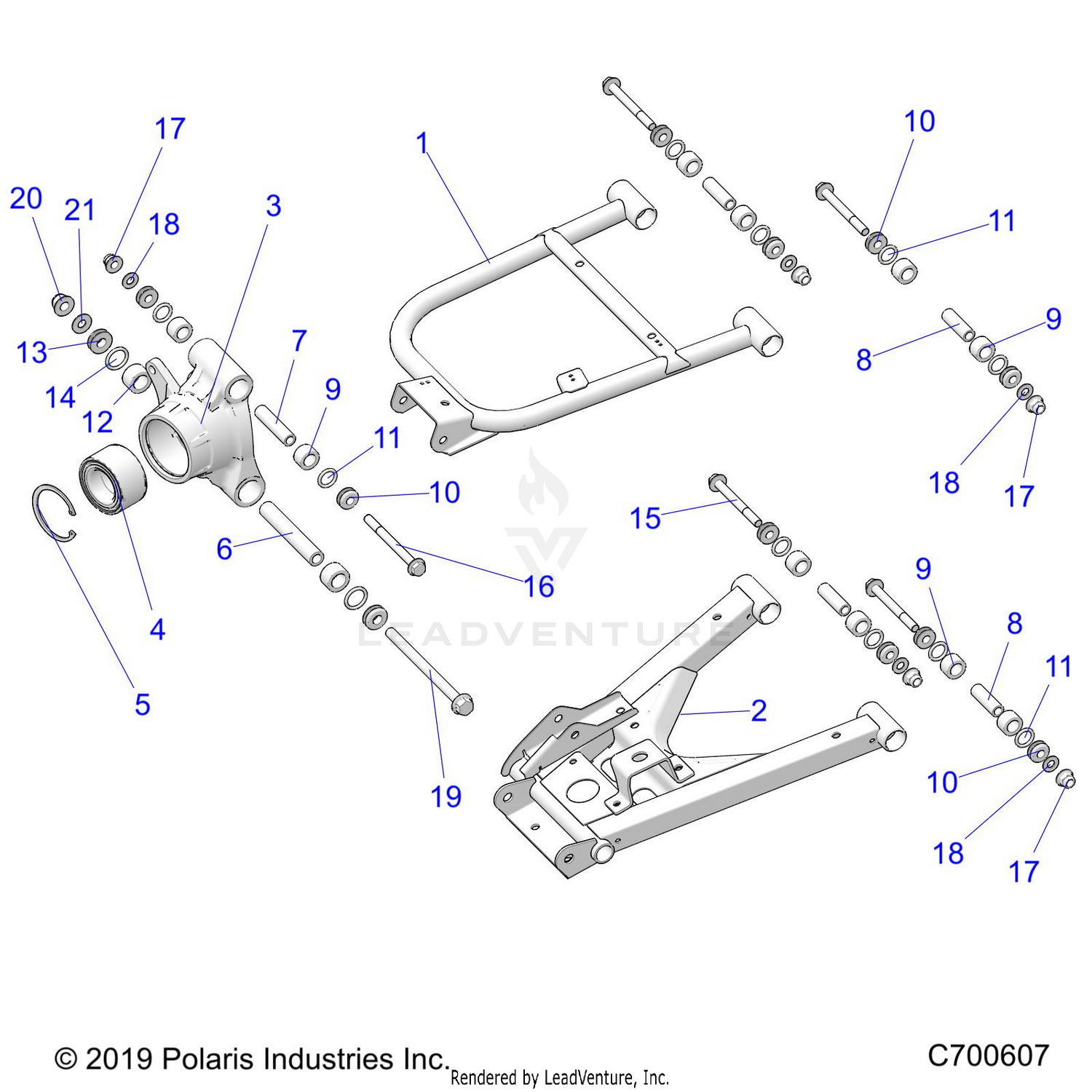

Suspension, Rear - R23tae99ad/bd/ap/bp (c700607) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WELD-CONTROL ARM, RR, UPR, LH, BLK
1022800-458
|
$159.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
WELD-CONTROL ARM, RR, UPR, RH, BLK
1022801-458
|
$159.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
WELD-CONTROL ARM, RR, LWR, LH, BLK
1022802-458
|
$194.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
WELD-CONTROL ARM, RR, LWR, RH, BLK
1022803-458
|
$194.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CARRIER-BEARING,LH
5140866
|
$199.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CARRIER-BEARING,RH
5140867
|
$199.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING-WHEEL,40X74X40MM
3514917
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING-WHEEL,HD,40X74X40MM
3515087
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
RING-RETAINING,2.875,INTERNAL
7710440
|
$12.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
SHAFT-PIVOT, LONG, M12
5139991
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHAFT-PIVOT,LONG,M12
5144659
|
$10.99 | ||
|
Unavailable |
|||
|
#7
SHAFT-PIVOT, SHORT, M10
5139990
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHAFT-PIVOT,SHORT,M10
5139966
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHAFT-PIVOT,SHORT,M10
5144658
|
$6.99 | ||
|
Unavailable |
|||
|
#9
BUSHING-STANDARD, SUSP, M10
5452233
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
ASM-PIVOT CAP, SEALED, M10
1543611
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP-PIVOT SEAL,M10
5139968
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING,2-210
5415653
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BUSHING-STANDARD, SUSP, M12
5452271
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
ASM-PIVOT CAP, SEALED, M12
1543612
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
CAP-PIVOT SEAL,M12
5139992
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING,2-213
5415654
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCR-HXFL-M10X1.25X95 10.9 ZOD
7519043
|
$11.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
SCR-HXFL-M10X1.25X115 10.9 ZOD
7519365
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
WASHER-3/8 FW SAE STL THRU-HRD
7556153
|
$2.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
SCR-HXFL-M12X1.5X170 10.9 ZOD
7520294
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT-M12X1.5, FLG, NYLOC-OLIVE D
7547334
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
WASHER-7/16 SAE,STF,THRU-HRD-Y
7556212
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#
RING-RETAINING,2.875,INTERNAL
7710440
|
$12.99 | ||
|
Unavailable |
|||
