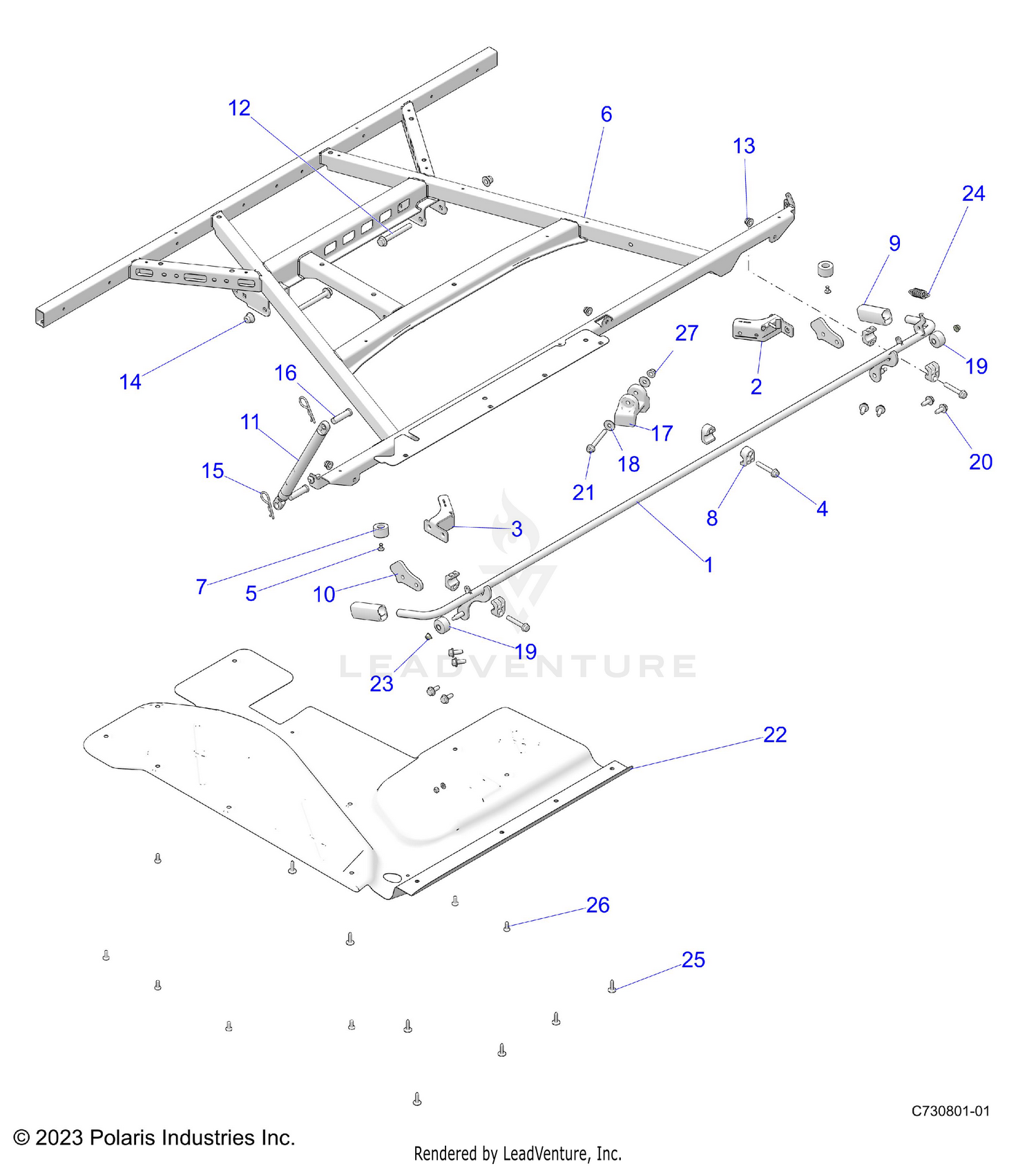

Body, Box, Mounting - R23tae99ad/ap/bd/bp (c730801-01) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WELD-BOX LATCH,BLK
1026726-458
|
$114.49 | ||
|
Unavailable |
|||
|
#2
WELD-BRKT-SPACER,LH,ECOAT
1027683-329
|
$69.99 | ||
|
Unavailable |
|||
|
#3
WELD-BRKT-SPACER,RH,ECOAT
1027684-329
|
$69.99 | ||
|
Unavailable |
|||
|
#4
SCR-M8X1.25X50 HX/FL-Y
7517793
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
RIVET-POP 3/16 (.376-.500) AL-LFB
7621460
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
WELD-BOX SUPPORT,HVAC,BLK
1026798-329
|
$419.99 | ||
|
Unavailable |
|||
|
#7
BUMPER-BOX
5414343
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BUSHING-BOX,LATCH
5434226
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
HANDLE-BOX, LATCH
5450278
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BRKT-PLATE,CAM,HVAC,ECOAT
5271928-329
|
$49.99 | ||
|
Unavailable |
|||
|
#11
SHOCK-BOX,DUMP,RGR,441MMEXT
7045663
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCR-HXFL-M10X1.25X80 8.8 ZOD
7519363
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT-HXFL-M8X1.25 8 ZTB NYL
7548028
|
$2.99 | ||
|
Unavailable |
|||
|
#14
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
CLIP-HITCHPIN .148X3 1/16
7661067
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN-CLEVIS,1/2 X 1 3/4
7661878
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BUMPER-LOCATING,RGR
5459730
|
$49.99 | ||
|
Unavailable |
|||
|
#18
WASHER-8.4X24.0X2.0 ZPB
7556045
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
ROLLER-CAM,LATCH
5458307
|
$6.99 | ||
|
Unavailable |
|||
|
#20
SCR-TFHFL-M8X1.25X20 CHS ZOD
7518555
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCR-HXFL-M8X1.25X70 10.9 ZFB
7521332-70
|
$4.99 | ||
|
Unavailable |
|||
|
#22
SHIELD-BOX,CARGO
5271528
|
$179.99 | ||
|
Unavailable |
|||
|
#23
NUT-M6X1.0, FLG-NYLOC-OLIVE D
7547339
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
SPRING-EXHAUST
7041687
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCR-TXTH-M6X1.0X25 ZFB
7519650
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
SCR-TXPH-#14X5/8 HI/LO CLR
7520803
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
