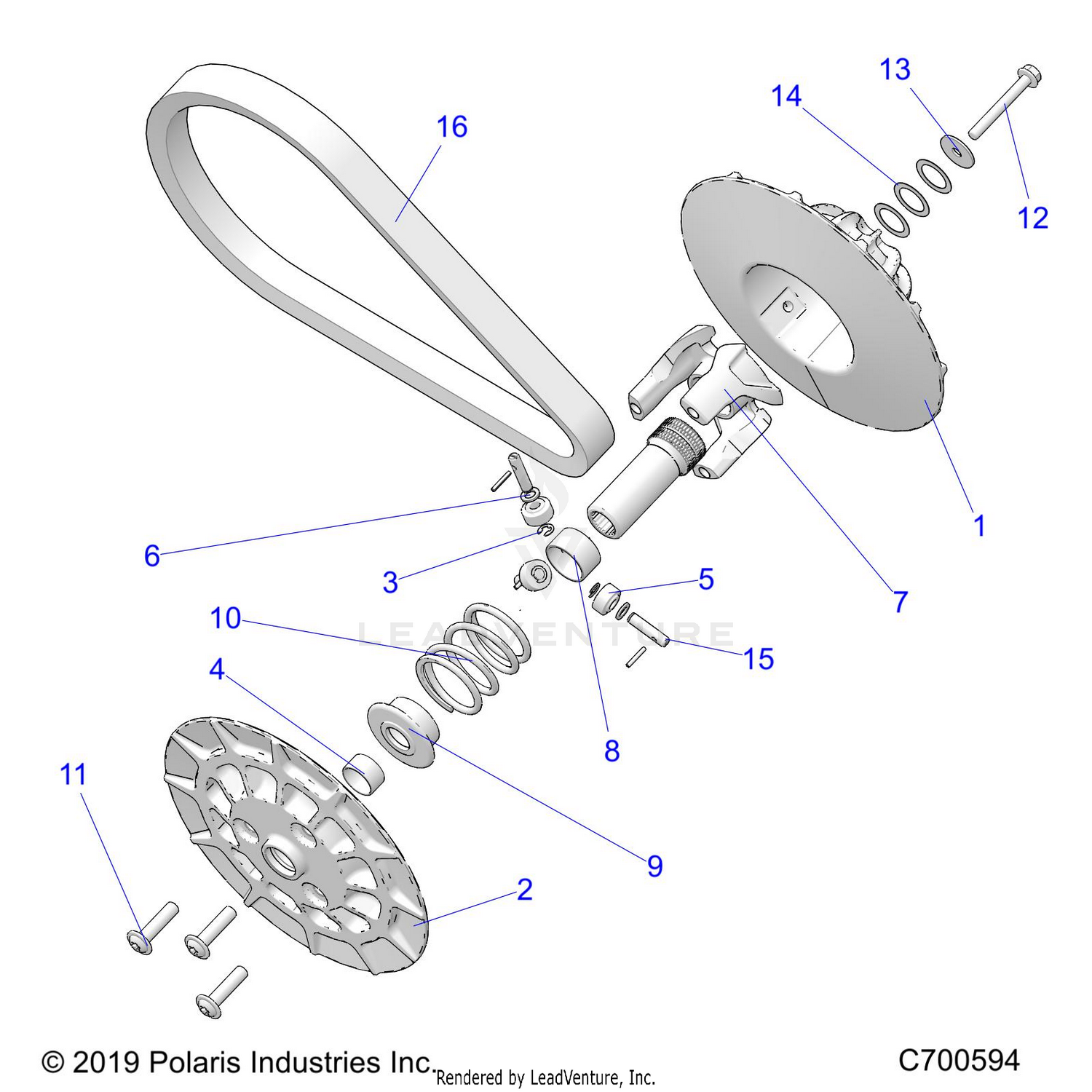

Drive Train, Clutch, Secondary - R23tae99ad/bd/ap/bp (c700594) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM-DRVN,STATIONARY,P190X MU
1323824
|
$384.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
ASM-DRIVEN,MOVEABLE,P190X,CS
1323798
|
$284.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
ASM-MOVABLE SHEAVE,P190X,CS
1323799
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
E-CLIP,M6, DIN 6799
7710466
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING-MU,25X15
3515176
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
ROLLER-8X22X11.25,TORLON
5455537
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WSHR-8.4X14 .0X1.6
7556211
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
ASM-HELIX,P190X,36-48/67BA
1323800
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING-MU,32X36X20
3515162
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CUP-DRIVEN SPRING,P190X
5633950
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING,DRIVEN
7044761
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCR-TXFLBH-M10X1.25X40 10.9SPC
7520698
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCR-M8X1.25X65-HX/FL-Y,CL 10.9
7519212
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
WSHR-8.4X30. 0X2.0 ZPB
7556219
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHIM-RING,23.25X32.25X0.5
7557060
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHIM-RING,23.25X32.25X2.28
7557178
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN-DRIVEN,ROLLER,8MM
5141086
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BELT-DRIVE
3211218
|
$159.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
