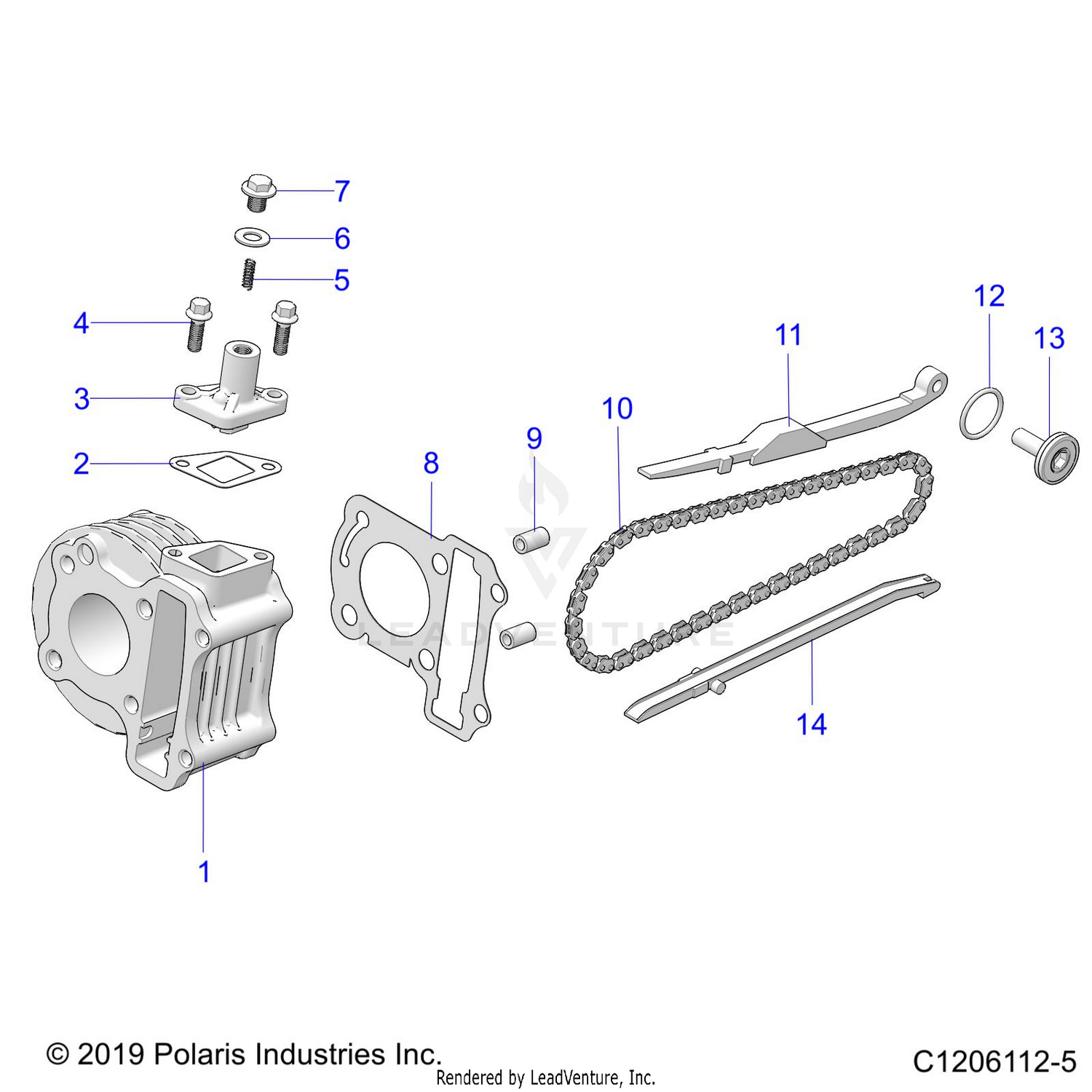

Engine, Cylinder - A23hbbo7b3/b7 (c1206112-5) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASSEMBLY, CASE, CYLINDER
3023851
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SEAL, CAMCHAIN TENSIONER
3023852
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAMCHAIN TENSIONER
3023853
|
$5.99 | ||
|
Unavailable |
|||
|
#4
HEXAGON FLANGE BOLTS M16X18
3050327
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, ADJUSTER
3023854
|
|||
|
Unavailable |
|||
|
#6
GASKET Ø8
3023855
|
|||
|
Unavailable |
|||
|
#7
BOLT, M8 SPECIAL
3023856
|
|||
|
Unavailable |
|||
|
#8
SEAL, CASE, CYLINDER
3023857
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN Ø8 × Ø7.1 × 14
3023834
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CHAIN, TIMING, 82 LINK
3023858
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE, TIMING CHAIN TENSION
3023859
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING Ø15.2 × Ø 1.5
3023860
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, TENSION ROD
3023861
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
GUIDE, CHAIN
3023862
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
