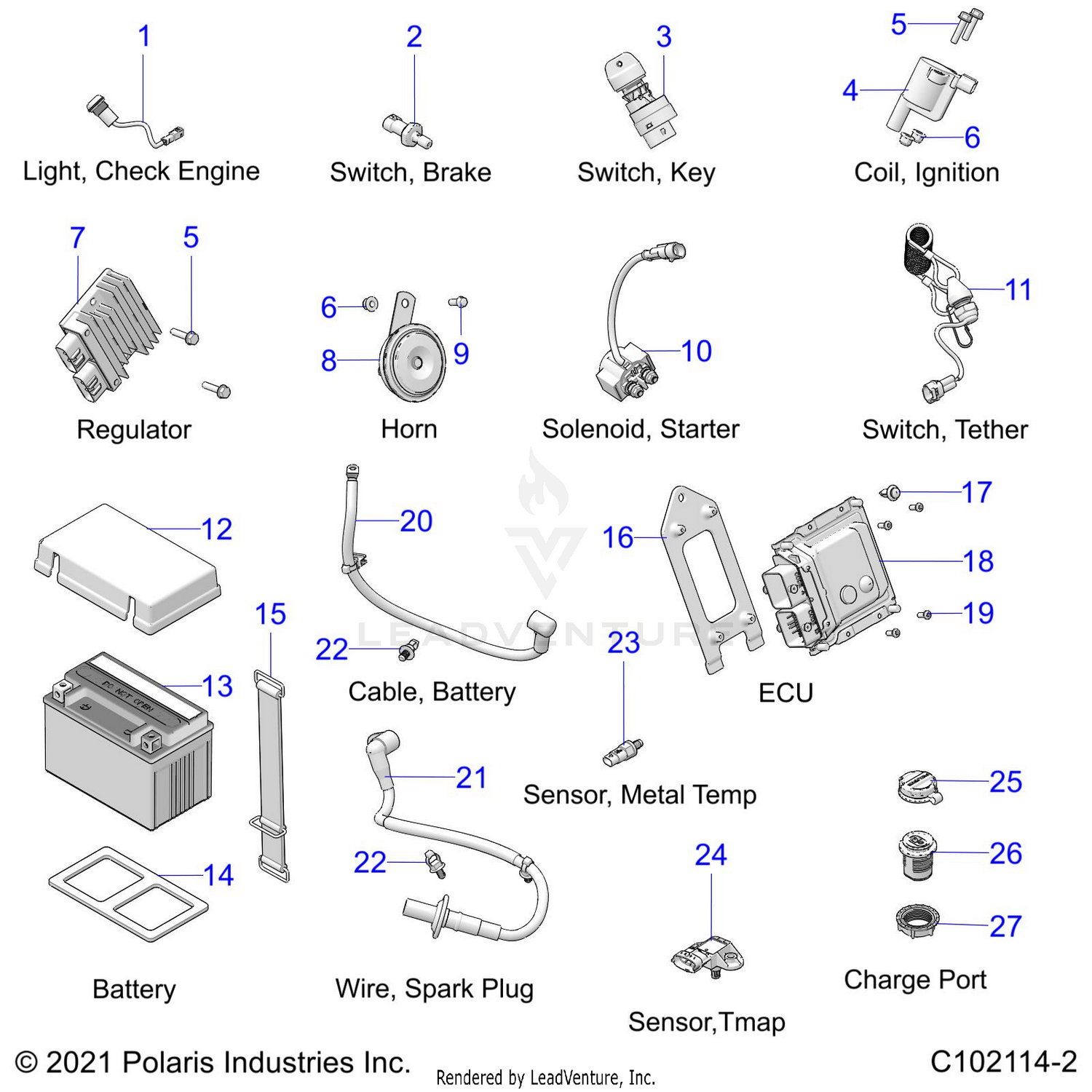

Electrical, Components - A23hbbo7b3/b7 (c102114-2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM-LIGHT,CHECK ENGINE
2414969
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SWITCH-BRK,M10X1.25,SGL,NO RES
4017278
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SWITCH-KEY,3 POS,SEALED
4017237
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SWITCH-KEY,3 POS,SEALED
4080413
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SWITCH-KEY,3 POS,SEALED
4083540
|
$69.99 | ||
|
Unavailable |
|||
|
#4
COIL-IGNITION,SINGLE,W/DIODE
4015072
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCR-M6X1.0X25-HX/FL-Y/D
7516823
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
NUT-M6 FLANGE,NYLOC
7547274
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
REGULATOR-3PH,SH846
4018820
|
$169.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
HORN-DISC
4018821
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCR-HXFL,M6X1.0X16 8.8ZY3DL204
7519329
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SOLENOID-STARTER
4018620
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOOT-SOLENOID MNT
5416078
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SWITCH-TETHER
4018594
|
$184.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SWITCH-TETHER
4081577
|
$39.99 | ||
|
Unavailable |
|||
|
#12
COVER-BATTERY
5456833
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BATTERY-SEALED,DTX9-BS,NO-ACID
4080533
|
$99.99 | ||
|
Unavailable |
|||
|
#14
GASKET-BATTERY CAP
5416089
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
STRAP-BATTERY HOLD DOWN
5416090
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
STRAP-BATTERY HOLD DOWN
5419168
|
$4.99 | ||
|
Unavailable |
|||
|
#16
MNT-ECM,REAR,BLK
5438708-070
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
RIVET-TUFLOK,.315-.325X.787
7661855
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
ECU, BASE, M17
4012838
|
$594.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCR-#10X1/2-HI/LO-PN-T25, TRX-M
7519091
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
CABLE-BATTERY/SOLENOID
4018688
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
WIRE-SPARKPLUG
4018723
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLIP-ROUTING
7082599
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SENSOR-METAL TEMP,ARROW
4016513
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SENSOR-TMAP DSS3-TF
2411528
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
ASM-CHARGE PORT,BASE
2415295
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
CAP-CHARGE PORT
5417215
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
PLUG-HARNESS CHARGE PORT
2415198
|
$32.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT-CHARGE PORT
5456622
|
$10.29 | ||
|
Available to order. Add to View Price |
|||
