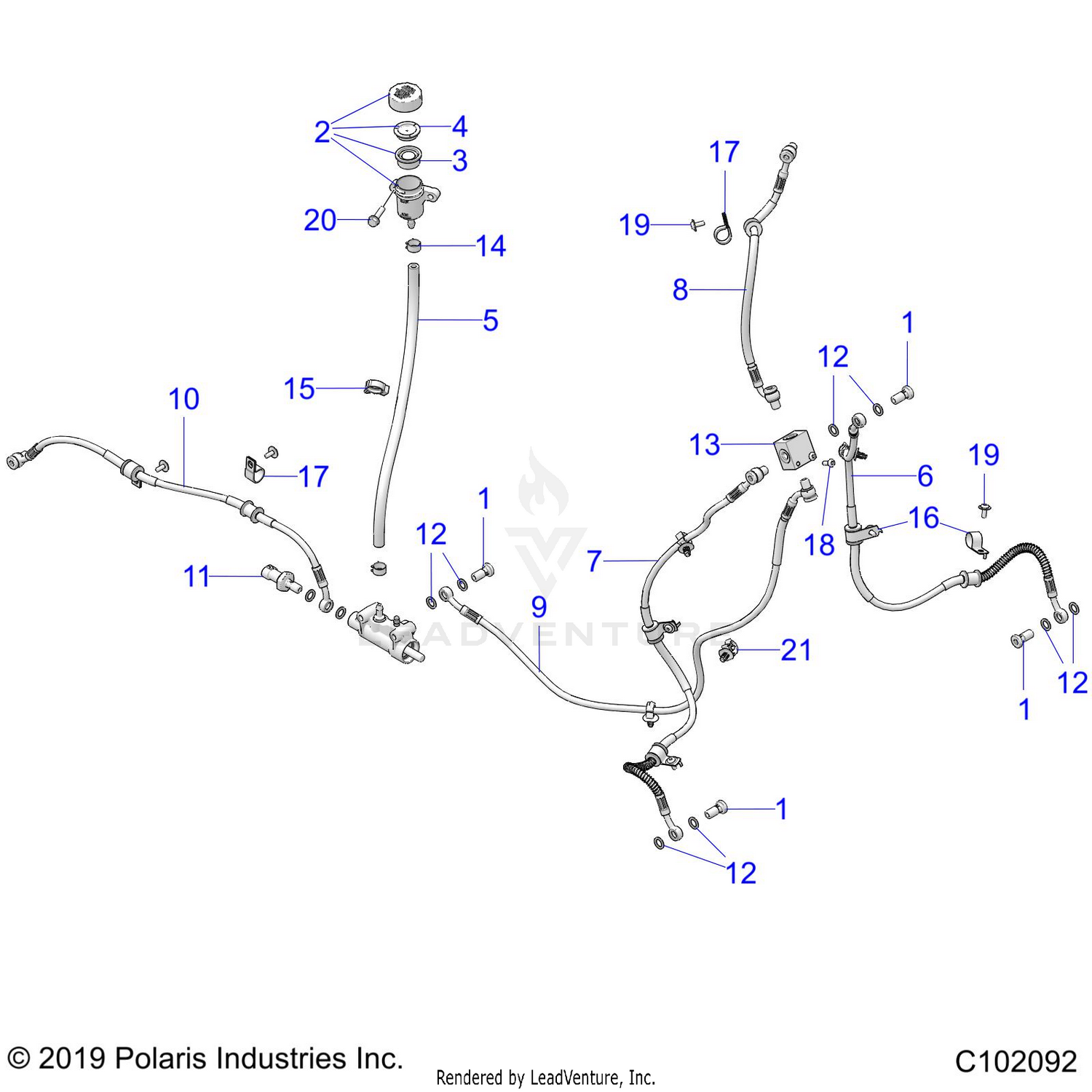

Brakes, Brake Lines - A23hbbo7b3/b7 (c102092) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOLT-BANJO,M10X1.25,TORX HEAD
1913790
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
ASM-RESERVOIR,BRAKE
1913801
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
DIAPHRAGM-RESERVOIR,BRAKE
5417431
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
RING-RESERVOIR,BRAKE
5457290
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOSE-RES,BRAKE,1/4",490MM
1911267-490
|
$39.99 | ||
|
Unavailable |
|||
|
#6
LINE-BRAKE,FRONT LH
1914042
|
$94.99 | ||
|
Unavailable |
|||
|
#7
LINE-BRAKE,FRONT RH
1914043
|
$94.99 | ||
|
Unavailable |
|||
|
#8
LINE-BRK,FRONT MCYL
1913512
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
LINE-BRAKE,REAR MCYL,31,45B,20B,118°J
1913513
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
LINE-BRAKE,REAR
1913514
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SWITCH-BRK,M10X1.25,SGL,30-79
4081240
|
$84.99 | ||
|
Unavailable |
|||
|
#11
SWITCH-BRK,M10X1.25,SGL,30-79
4081314
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
WSHR-COPPER SEAL,10 ID,14.7 OD
7557218
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
FITTING-CROSS,BRAKE
7052748
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOSE CLAMP, RED
7080003
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLIP, PLASTIC(10)
4020139
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
CLAMP-HOSE,.625 DIA VNL COATED
7082438
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLIP-ROUTING
7082640
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCR-#10-24X1/2PH/TORX-TRIRD-Y
7512024
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCR-10-24X1/2, PHTXTRIRD, SEMS-Y
7512084
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
SCR-M6X1.0X25-HX/FL-Y/D
7516823
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
CLIP-NYLON, C, FIR-TREE
7662310
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
