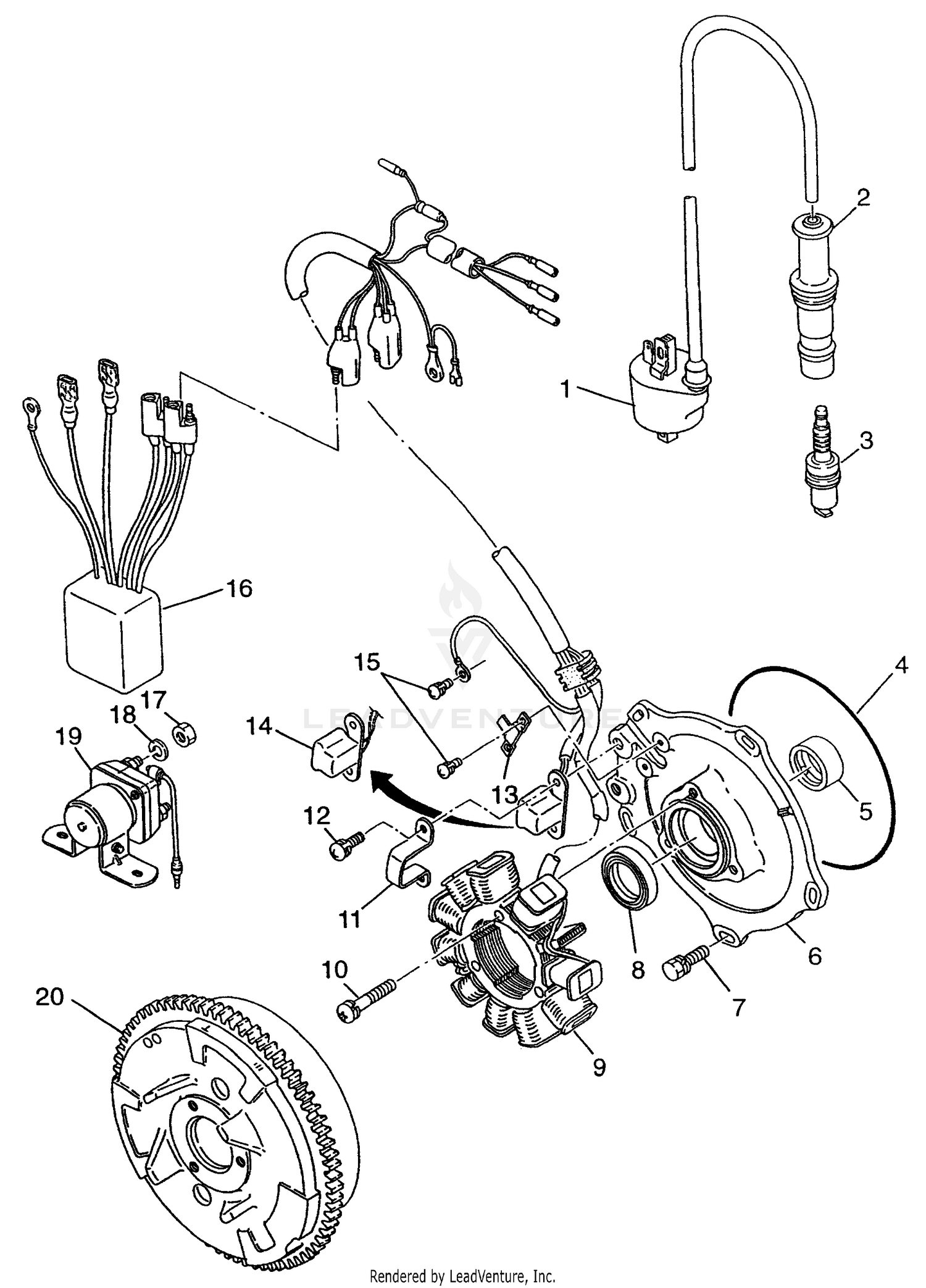

Magneto Magnum 2x4 W97aa42a (4940704070d006) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COIL,IGNITION
3084979
|
|||
|
Available to order. Add to View Price |
|||
|
#1
COIL ASM,IGNITION
3084690
|
|||
|
Available to order. Add to View Price |
|||
|
#2
CAP, SPARKPLUG *
3084980
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPARKPLUG, BKR5E(4)
3070175
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
O-RING
3084978
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING, METAL
3084972
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Asm., Plate (Incl. 5,6,8-14,15)
3084970
Superseded by 3086859
|
$739.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE
3084971
|
|||
|
Unavailable |
|||
|
#7
BOLT&WASHER ASM.
3081657
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SEAL, OIL
3084973
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
STATOR Substituted by 3086860
3084974
|
|||
|
Unavailable |
|||
|
#10
SCREW&WASHER ASM(10)
3081342
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
BAND, PULSE
3085554
|
|||
|
Unavailable |
|||
|
#12
SCREW&WASHER ASM.
3084976
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP
3084977
|
|||
|
Unavailable |
|||
|
#14
COIL,PULSER
3085360
|
$114.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW&WASHER ASM(10)
3081256
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
CDI SYSTEM *
3085382
Superseded by 3085639
|
$379.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT
3083073
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
WASHER SPRING(10)
3080077
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
Switch, Magnetic
3085521
Superseded by 4011335
|
$74.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
FLYWHEEL,W/RING GEAR Substituted by 3086857
3084969
|
|||
|
Unavailable |
|||
