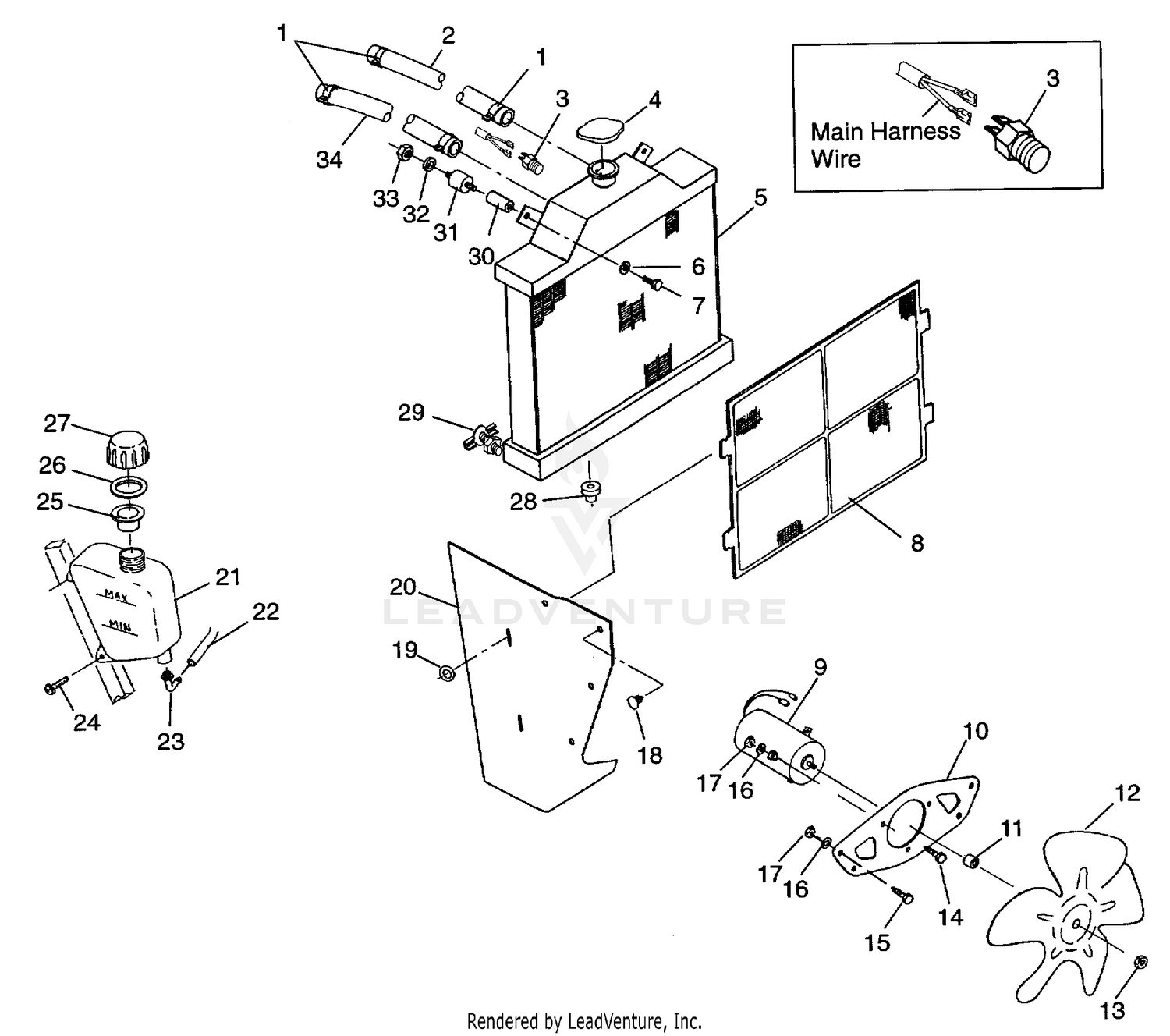

Cooling System Magnum 2x4 W97aa42a (4940704070a009) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLAMP,HOSE,(10)
7080614
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOSE,CHAFE-PROTECTED
5411108
|
|||
|
Available to order. Add to View Price |
|||
|
#3
SWITCH,THERMAL,FAN,L/C
4110225
|
|||
|
Unavailable |
|||
|
#4
CAP, PRESSURE,(13 LB)
2511189
Superseded by 2511270
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
RADIATOR,"U"FLOW
1240015
|
|||
|
Available to order. Add to View Price |
|||
|
#6
WASHER(10)
7552605
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW(10)
7512113
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER,RADIATOR,W/MESH
5431760
|
|||
|
Unavailable |
|||
|
#9
NOT AVAILABLE
4170011
Superseded by 9999999
|
|||
|
Available to order. Add to View Price |
|||
|
#10
BRKT,COOL.FAN,BLK
5224741-067
|
|||
|
Unavailable |
|||
|
#11
SPACER
5333457
|
|||
|
Available to order. Add to View Price |
|||
|
#12
BLADE, FAN
5240822
|
$71.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
NUT
7542154
|
|||
|
Available to order. Add to View Price |
|||
|
#14
SCREW(10)
7511875
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT(10)
7512232
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
WASHER, FLAT(10)
7558201
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT
7547004
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
CLIP-FIR TREE,DART,6.35MM
7670090
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
O RING
5410607
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SHIELD,LH,RADIATOR SIDE
5431829
|
|||
|
Unavailable |
|||
|
#20
SHIELD,RH,RADIATOR SIDE
5431830
|
|||
|
Unavailable |
|||
|
#21
TANK-SURGE
5431673
Superseded by 5436936
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
FITTING,90 DEGREE
7052065
|
$8.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
SCREW(10)
7512084
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
PLUG-CAP 9X(GREEN) FLEX TEMP
5431895
Superseded by 5433774
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
GASKET-OVERFLOW CAP
5810279
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
CAP-OVER FLOW BOTTLE,DRILLED
5430743
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BUSHING-MOUNT,LOWER RADIATOR
5410584
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
VALVE,DRAIN COCK
7052181
|
|||
|
Unavailable |
|||
|
#30
SPACER, MOUNT
5020572
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
MOUNT, RUBBER
3110032
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER(10)
7558301
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
NUT-LOCK(10)
7542122
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
HOSE,WATER,305 CM.
8450050-305
|
|||
|
Unavailable |
|||
