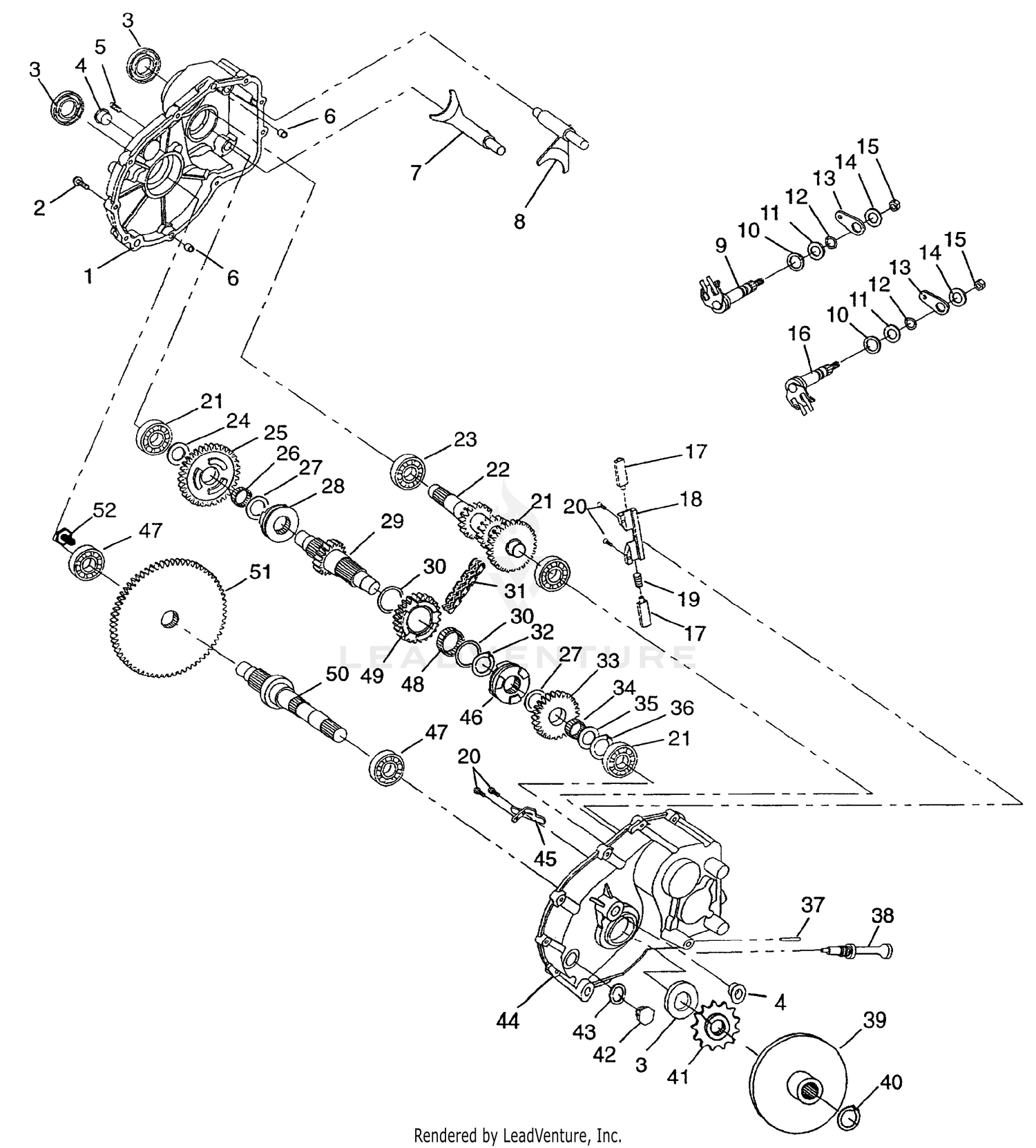

Gearcase Magnum 2x4 W97aa42a (4940704070c005) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
GEARCASE ASM,MAGNUM 2X4,HCR
1341185
|
|||
|
Unavailable |
|||
|
#1
CASE, LH
3233002
|
|||
|
Unavailable |
|||
|
#2
SCREW
3233026
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Seal, Triple Lip
3233248
Superseded by 3233788
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BUSHING,PIVOT
3233024
|
|||
|
Unavailable |
|||
|
#5
STUD
3233025
|
|||
|
Unavailable |
|||
|
#6
PIPE, KNOCK
3233021
|
$13.39 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHIFTRAIL,LOW
3233022
|
$249.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHIFTRAIL,HIGH/REV.
3233023
|
|||
|
Unavailable |
|||
|
#9
SHAFT,LOW SHIFT
3233151
|
|||
|
Unavailable |
|||
|
#10
O-Ring
3233044
Superseded by 3233548
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER
3233040
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
RING,RETAINING BASIC,EXTERNAL 0.75
3233045
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BELLCRANK
3233153
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER
3233054
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Nut, Lock
3233055
Superseded by 3233961
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SHAFT,HIGH/REV.SHIFT
3233152
|
|||
|
Unavailable |
|||
|
#17
PIN
3233031
|
$36.79 | ||
|
Available to order. Add to View Price |
|||
|
#18
BRACKET
3233030
|
$26.79 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPRING
3233032
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Screw, Tapping
3233033
Superseded by 3233747
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BEARING-BALL,6307 C3,35X80X21
3233018
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHAFT,INPUT,31T,HCR
3233361
|
|||
|
Unavailable |
|||
|
#23
BEARING, BALL, 6205 C3 25X52X15
3233019
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER
3233007
|
|||
|
Available to order. Add to View Price |
|||
|
#25
GEAR, 33T
3233125
|
|||
|
Unavailable |
|||
|
#26
BEARING,NEEDLE
3233009
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER
3233010
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
DOG,ENGAGEMENT,LOW
3233126
|
$158.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
SHAFT,REV,29T,HCR
3233362
|
|||
|
Unavailable |
|||
|
#30
WASHER
3233012
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
CHAIN,SILENT,34P
3233036
|
$84.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
RING,RETAINING
3233029
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
GEAR,30T,HCR
3233359
|
|||
|
Unavailable |
|||
|
#34
BEARING,NEEDLE
3233017
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER
3233176
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
RING,RETAINING
3233177
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
VENT
3233037
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
Dipstick
3233115
Superseded by 3233478
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
Brake Disc. ATV
-------
|
|||
|
Unavailable |
|||
|
#40
RING,SNAP(10)
7710434
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#41
SPKT, 12T
3221044
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
PLUG
3233448
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
WASHER
3233035
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
CASE, RH
3233003
|
|||
|
Available to order. Add to View Price |
|||
|
#45
DEFLECTOR,OIL
3233043
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
DOG,ENGAGEMENT,HI/REV.
3233128
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
BEARING
3233020
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
BEARING, NEEDLE
3233014
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
SPROCKET, 24T
3233127
|
$102.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
SHAFT,OUTPUT
3233140
|
|||
|
Unavailable |
|||
|
#51
GEAR,O/P,100T,HCR
3233360
|
$279.99 | ||
|
Available to order. Add to View Price |
|||
|
#52
BUSHING,SPEEDO.DRIVE
5020741
|
$11.29 | ||
|
Available to order. Add to View Price |
|||
