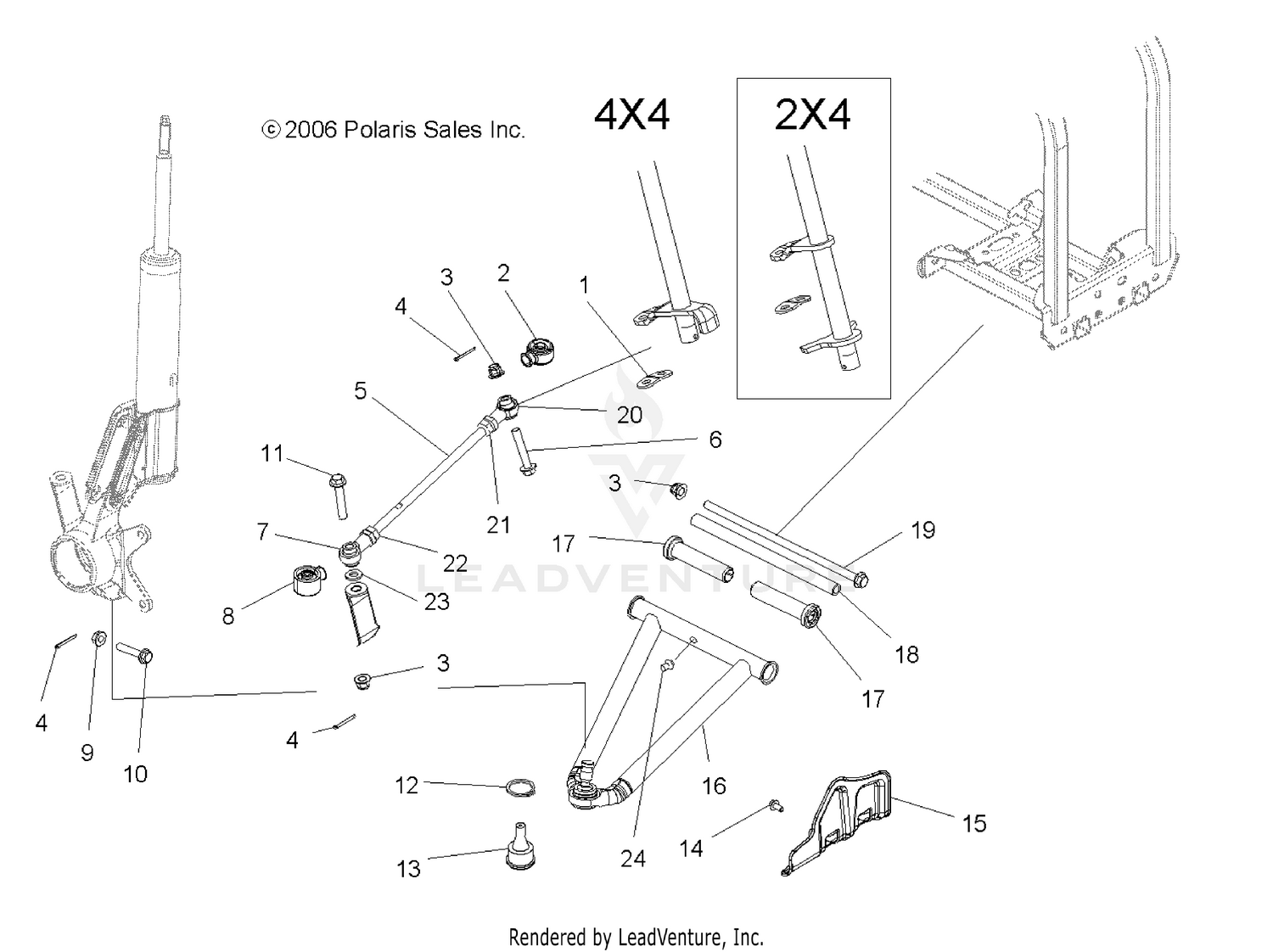

Suspension, Front - A07lb27aa/ac/lh27aa/ab/ac/ad/al (49atvaarm07hawk) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Retainer
5248353
|
$3.79 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOOT, SEAL, ROD END
5411291
Superseded by 5412928
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Nut, Flange
7547313
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
Pin, Cotter
7661203
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
Asm., Tie Rod
1822955
|
$135.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Rod, Tie
5134603
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Screw, Flange
7518605
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Rod End, LH
7061135
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOOT, SEAL, ROD END
5411920
Superseded by 5412929
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Nut, Flange
7547317
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
Screw
7518698
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Screw
7518682
|
$4.79 | ||
|
Available to order. Add to View Price |
|||
|
#12
Ring, Retainer, External
7710533
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Joint, Ball
7081263
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Screw
7512084
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
Shield, CV, RH, Black
5436412-070
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Shield, CV, LH, Black
5436411-070
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
A-Arm, Black, LH
1542327-067
Superseded by 1542616-067
|
$229.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
A-Arm, Black, RH
1542328-067
Superseded by 1542617-067
|
$304.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Bushing, A-Arm, Long, Grey
5436973
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
Tube, Pivot
5134926
Superseded by 5136324
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Screw, Flange
7518458
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Rod End, RH
7061134
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT-M12X1.5,RH,FULL JAM
7547358
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Nut, Jam, LH
7547357
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Washer, Flat
7556099
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
Fitting, Lubrication
7080433
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
