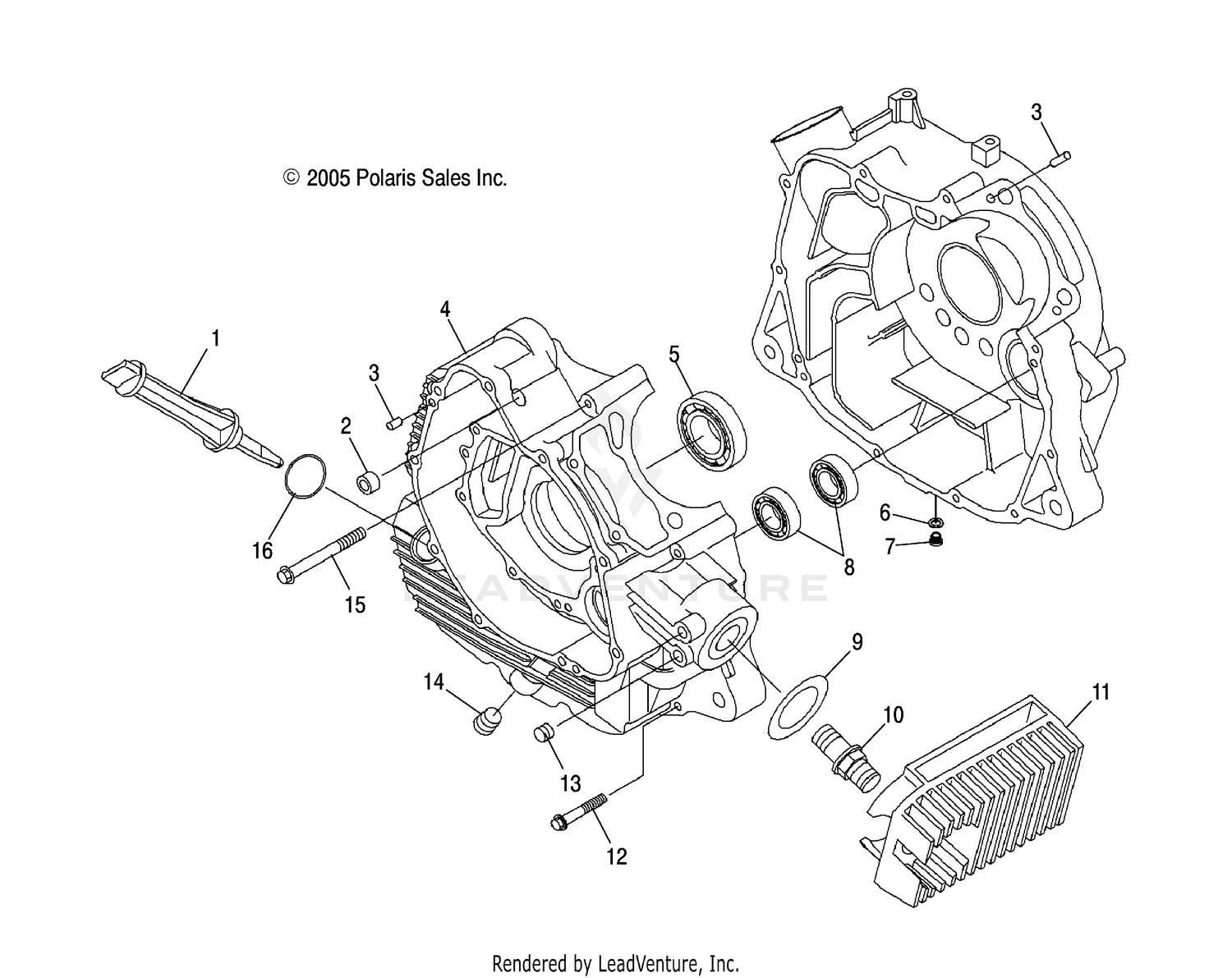

Engine, Crankcase - A07lb27aa/ac/lh27aa/ab/ac/ad/al (4999202079920207d01) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Gauge, Oil
3089795
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
Bushing, Starter
3083669
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Pin, Dowel
3086741
Superseded by 3086838
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Asm., Crankcase
3089788
|
$764.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Bearing, Ball
3089789
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Washer
3089794
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Plug
3089793
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Bearing, Ball
3089790
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Gasket
3089977
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Connector, Oil Cooler
3089971
|
$57.79 | ||
|
Available to order. Add to View Price |
|||
|
#11
WELD-EXTRUSION,OIL BLOCK
3089908
Superseded by 1240252
|
$113.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Bolt, Flange
3089792
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Plug
3089993
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#14
Plug
3089994
|
$4.79 | ||
|
Available to order. Add to View Price |
|||
|
#15
Blot, Flange
3088046
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
O-Ring
3087065
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
