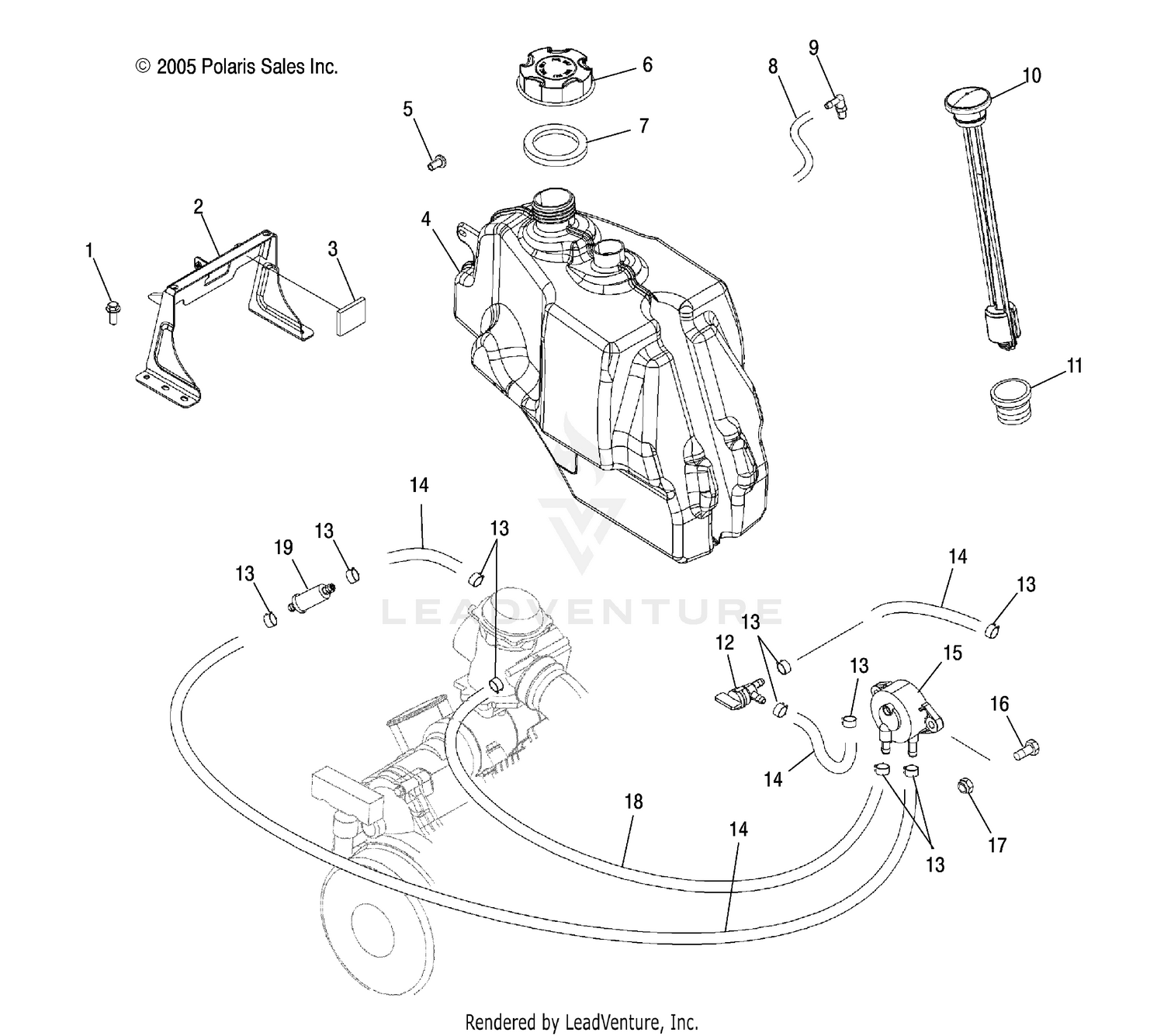

Fuel System - A07lb27aa/ac/lh27aa/ab/ac/ad/al (4999202079920207a13) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
Bracket, Fuel Tank, Black
1015349-067
|
|||
|
Unavailable |
|||
|
#3
Pad, Fuel Filter
5812996
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Asm., Fuel Tank
2520718
Superseded by 2520956
|
$354.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Screw
7518196
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
CAP-GAS TANK
5433687
Superseded by 5450389
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Gasket
5812123
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
Line, Fuel
8360009-600
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Vent
5431053
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Gauge, Fuel, Remote
3280491
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Grommet
5413089
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Valve, 90 Degrees
7052249
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOSE CLAMP, RED
7080003
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
Hose, Fuel
8450103
Superseded by 8450117-250
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Asm., Fuel Pump
3089760
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Screw
7518576
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT-M6 FLANGE,NYLOC
7547274
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
Line, Fuel
8450040-600
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Filter
2530009
|
$7.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
