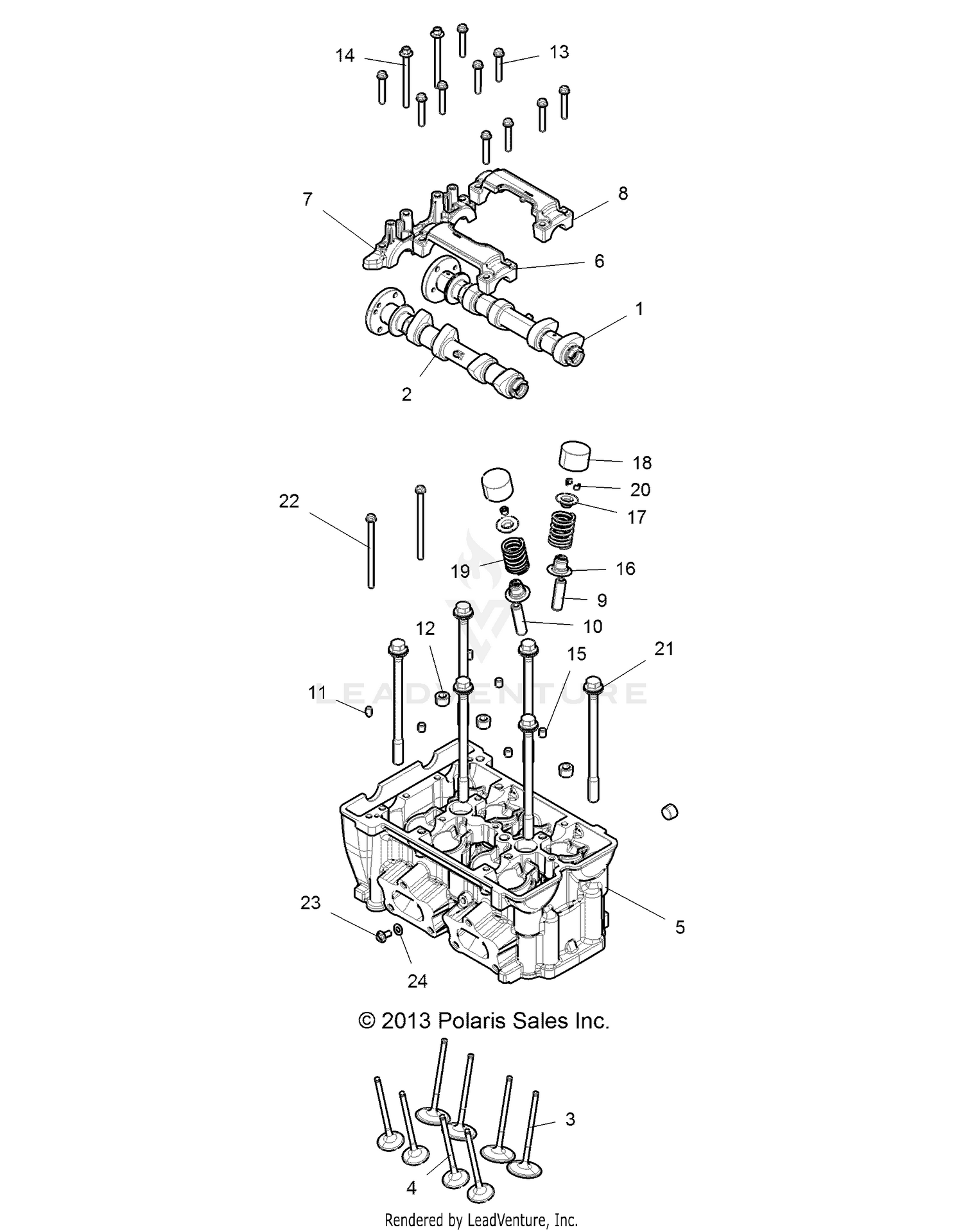

Engine, Cylinder Head And Valves - R17rhe99au (49rgrvalve14rzr1000) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM-CAMSHAFT,INTAKE,989-234
3022846
Superseded by 3023530
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
ASM-CAMSHAFT,EXHAUST,913-225
3022847
Superseded by 3023531
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
VALVE, INTAKE, STEEL
3022134
|
$64.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
VALVE, EXHAUST
3022415
|
$59.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
ASM., CYLINDER HEAD
3022716
|
$974.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CARRIER, CAMSHAFT, DOHC, EXHAUST
-------
|
|||
|
Unavailable |
|||
|
#7
CARRIER, CAMSHAFT, DOHC, TRANS
-------
|
|||
|
Unavailable |
|||
|
#8
CARRIER, CAMSHAFT, DOHC, INTAKE
-------
|
|||
|
Unavailable |
|||
|
#9
GUIDE, VALVE, INTAKE
-------
|
|||
|
Unavailable |
|||
|
#10
GUIDE, VALVE, EXHAUST
-------
|
|||
|
Unavailable |
|||
|
#11
PIN-DOWEL,M6X10
5132835
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLUG
7052413
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
SCREW
7519978
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW
7519197
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
DWL-HOL,M8X8
7661977
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SEAT-W/SEAL,VALVE SPRING
3610212
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
RETAINER,VALVE
5138435
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
TAPPET, VALVE, GRADED, 4.400
5138477-440
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
TAPPET, VALVE, GRADED, 4.425
5138477-442
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
TAPPET, VALVE, GRADED, 4.450
5138477-445
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
TAPPET, VALVE, GRADED, 4.475
5138477-448
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
TAPPET, VALVE, GRADED, 4.500
5138477-450
|
$54.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
TAPPET, VALVE, GRADED, 4.525
5138477-452
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
TAPPET, VALVE, GRADED, 4.550
5138477-455
|
$54.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
TAPPET, VALVE, GRADED, 4.575
5138477-458
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
TAPPET, VALVE, GRADED, 4.600
5138477-460
|
$54.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
TAPPET, VALVE, GRADED, 4.625
5138477-462
|
$54.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
TAPPET, VALVE, GRADED, 4.650
5138477-465
|
$54.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
TAPPET, VALVE, GRADED, 4.675
5138477-468
|
$54.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
TAPPET, VALVE, GRADED, 4.700
5138477-470
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
TAPPET, VALVE, GRADED, 4.725
5138477-472
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
TAPPET, VALVE, GRADED, 4.750
5138477-475
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
TAPPET, VALVE, GRADED, 4.775
5138477-478
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
TAPPET, VALVE, GRADED, 4.800
5138477-480
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
TAPPET, VALVE, GRADED, 4.825
5138477-482
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
TAPPET, VALVE, GRADED, 4.850
5138477-485
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
TAPPET, VALVE, GRADED, 4.875
5138477-488
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
TAPPET, VALVE, GRADED, 4.900
5138477-490
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
TAPPET, VALVE, GRADED, 4.925
5138477-492
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
TAPPET, VALVE, GRADED, 4.950
5138477-495
|
$54.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
TAPPET, VALVE, GRADED, 4.975
5138477-498
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
TAPPET, VALVE, GRADED, 5.000
5138477-500
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
TAPPET, VALVE, GRADED, 5.025
5138477-502
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
TAPPET, VALVE, GRADED, 5.050
5138477-505
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
TAPPET, VALVE, GRADED, 5.075
5138477-508
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
TAPPET, VALVE, GRADED, 5.100
5138477-510
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
TAPPET, VALVE, GRADED, 5.125
5138477-512
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
TAPPET, VALVE, GRADED, 5.150
5138477-515
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
TAPPET, VALVE, GRADED, 5.175
5138477-518
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
TAPPET, VALVE, GRADED, 5.200
5138477-520
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
TAPPET, VALVE, GRADED, 5.225
5138477-522
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
TAPPET, VALVE, GRADED, 5.250
5138477-525
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
TAPPET, VALVE, GRADED, 5.275
5138477-528
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
TAPPET, VALVE, GRADED, 5.300
5138477-530
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
TAPPET, VALVE, GRADED, 5.325
5138477-532
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
TAPPET, VALVE, GRADED, 5.350
5138477-535
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
TAPPET, VALVE, GRADED, 5.375
5138477-538
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
TAPPET, VALVE, GRADED, 5.400
5138477-540
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
TAPPET, VALVE, GRADED, 5.425
5138477-542
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
TAPPET, VALVE, GRADED, 5.450
5138477-545
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPRING, VALVE
7044024
Superseded by 7045026
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
KEEPER-VALVE
7081470
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, HEAD
7519123
|
$16.49 | ||
|
Unavailable |
|||
|
#22
SCREW
7519153
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW
7520470
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, FLAT
7555998
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
