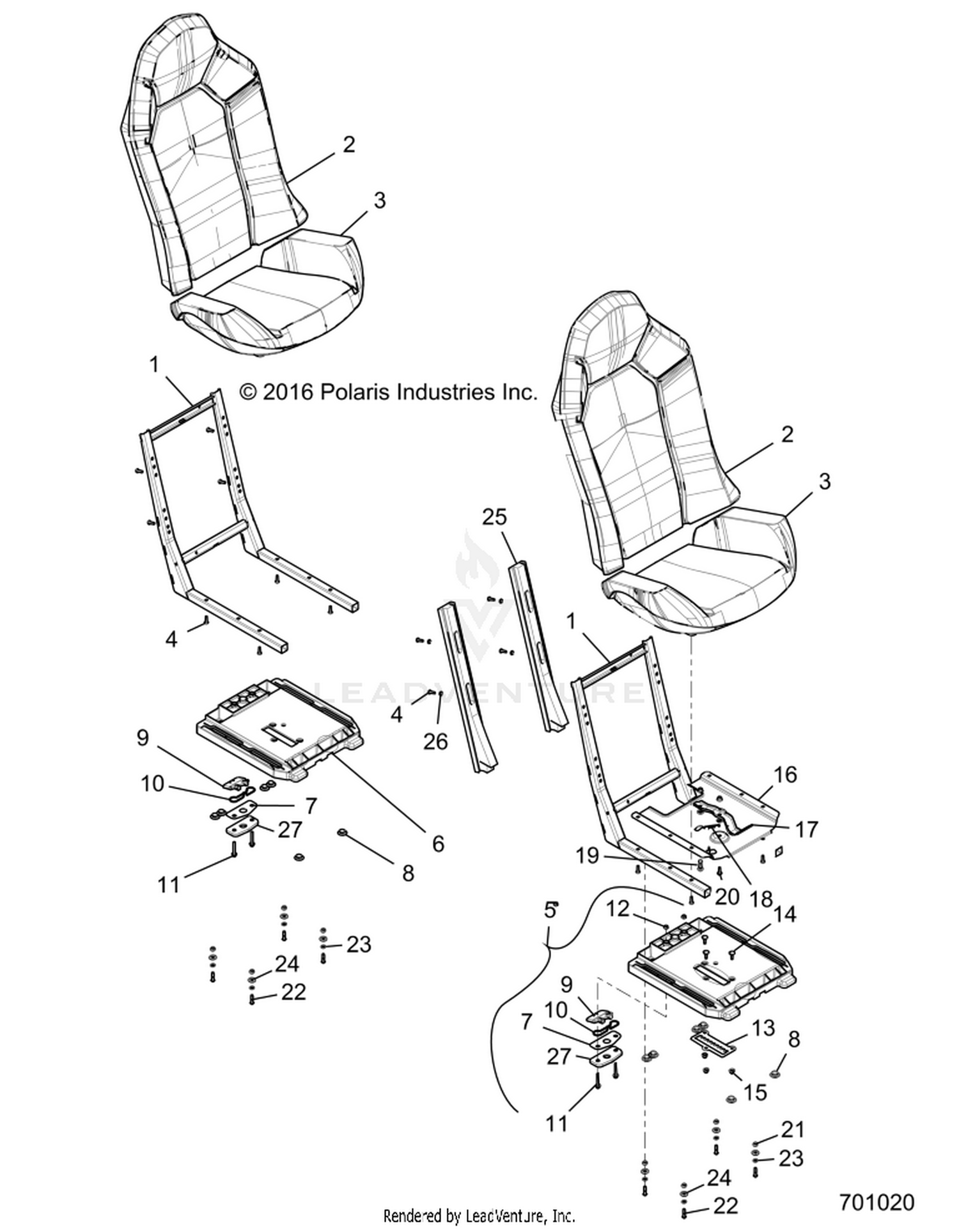

Body, Seat Asm. And Slider - R17rhe99au (701020) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WELD-SEAT FRAME
1022256
|
$239.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
ASM-SEAT,BACK,BLK/RED/RED ST
2687616
|
$335.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
ASM-SEAT,BTM,BLK/RED/RED ST
2687619
|
$281.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW
7515177
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
ASM-BASE,SEAT SLIDER
2685704
|
$259.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
ASM-BASE,SEAT
2634889
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE-LATCH,SEAT
5258647
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GROMMET, SEAT BASE
5413441
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
HANDLE-SEAT BASE LATCH
5437121
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
SPRING, LATCH, SEAT
7081466
|
$39.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
SCREW
7517610
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT-6MM X 1 NYLOK-Z
7546703
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BRACKET, SEAT SLIDER ADJUSTMENT PLATE
5257975
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, CARRIAGE
7518994
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BRACKET, SEAT SLIDER MOUNTING PLATE
5257974
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BRACKET, SEAT SLIDER LEVER
5260101
|
$19.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
SPRING
7044099
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, SHOULDER
7518786
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BOLT, SHOULDER
7518897
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
TUBE, SPACER
5340145
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW
7519296
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
WASHER, SPRING LOCK
7552801
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, FLAT
7555859
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
PAD-SEAT BASE,BLK
5415501-070
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
SLEEVE-SHLD,15.5OD,10 OD,6.5ID
5140211
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
LATCH-COVER PLATE,BLK
5450510-070
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
