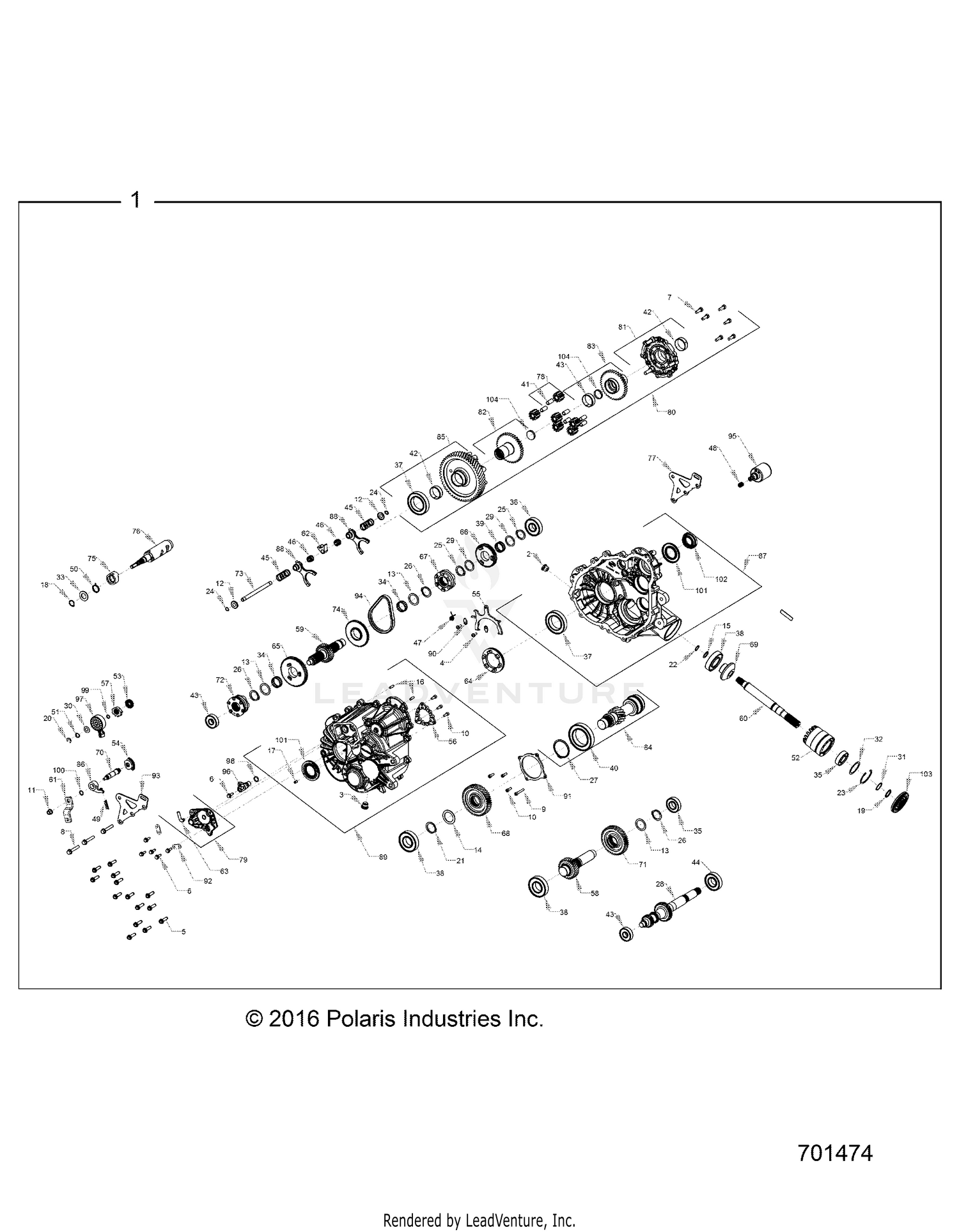

Drive Train, Main Gearcase Internals - R17rhe99au (701474) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM-GEARCASE
1333603
|
$4,974.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
ASM-GEARCASE
1334132
|
$4,864.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLUG, M18 X 1.5
3234755
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLUG, M18 X 1.5 MAGNETIC
3234756
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, TORX PAN HD M6 X 1 X 16
3234309
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW-HEXFLANGEHEAD,M8X1.25X30
3234898
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, HEX FLANGE HEAD, M6 X 1 X 20
3235206
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, CAP HH M8-1.25 X 25
3235096
Superseded by 3236169
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, HEX FLANGE M8 X 50
3235207
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, SOCKET HEAD, CAP, M6 X 1 X 40
3235208
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, SOCKET HEAD, CAP, M6 X 1 X 18
3235332
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, LOCK HEX FLANGE, NYLON M8 X 1.25
3235210
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER-CUP
3234091
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, 32.3 X 42 X 1.5
3235211
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, 35.6 X 50 X 1.5
3235212
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, 17.3 X 25 X 1.5
3235213
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN, DOWEL 6 X 20
3234330
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN, SPRING, SLOTTED 6 X 12
7043746
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
RING,RETAINING BASIC,EXTERNAL 0.75
3233045
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
RING,RETAINING BASIC,EXTERNAL 0.984
3233106
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
RING, SNAP
3233834
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
RING, RETAINING, SHAFT, DIA. 1.375
3233364
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
RING, RETAINING, EXTERNAL SHR-66
3234318
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
RING,RETAINING BASIC,INTERNAL 2.047
3234269
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
RING,RETAINING BASIC,EXTERNAL 0.428
3234090
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
RING, RETAINING
3234205
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
RING-RETAIN,EXT,MSR-32(130296)
3235214
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
RING, RETAINING, VSH-237
3235216
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
SHAFT, INPUT 42T/20T/25T
3235754
|
$269.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER,THRUST,1.187 X 1.500 X .0600
3233378
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER,THRUST,0.446 X 0.88 X 0.025
3234642
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
SHIM, 1.18 OD X 0.995 ID
3234272
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
SHIM, 2.04 OD X 1.63 ID
3234273
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
SPACER, 19.4 X 34 X 2
3235883
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
BEARING, NEEDLE
3233014
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
BEARING, BALL, 6205 C3 25X52X15
3233019
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
BEARING
3233020
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
BEARING-BALL 6010 C3 50 X 80 X 10
3233268
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
BEARING,BALL 6207 C3 35X72X17
3234065
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
BEARING, NEEDLE, CAGE ASSY
3233384
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
BEARING, BALL, 6012 C3 60 X 95 X 18
3235218
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
BEARING, PLAIN 10 X 12 X 25
3234239
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
BEARING, PLAIN 40 X 44 X 15
3234241
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
BEARING, BALL 6303, 17 X 47 X 14
3234652
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
BEARING BALL 6206 RSH2 30X62X16
3235496
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
SPRING,COMPRESSION, .92 O.D. X 2.000
3234078
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
SPRING, COMPRESSION, 0.46 I.D. X 0.73
3234089
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
SPRING, TORSION, RETURN
3234276
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
SPRING,COMPRSSN.54ODX.44IDX.05
3234277
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
SPRING, COMPRESSION
3234578
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
SPRING, TORSION
3235885
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
SPRING, WASHER
3235327
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#52
TUBE, SNORKEL MACH
3234278
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#53
GEAR, SECTOR 16T
3233839
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#54
GEAR-SECTOR,31T
3233832
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#55
FORK, PIVOT SHIFT REAR DIFF
3235455
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#56
PLATE, PARK 12-FACE
3235456
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#57
STAR, DETENT
3235982
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#58
SHAFT, IDLER 29T
3235223
|
$134.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#59
SHAFT-REVERSE,27T(285878)
3235380
|
$304.99 | ||
|
Available to order. Add to View Price |
|||
|
#60
SHAFT, FRONT OUTPUT
3235394
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#61
BELLCRANK, 92 DEG
3235581
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#62
COLLAR-SHIFT
3234073
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#63
TUBE, VENT, 90 -1/4" HOSE
3234230
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#64
DOG, ENGAGEMENT
3234928
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#65
GEAR, LOW 67T
3235232
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#66
GEAR, 53T
3235234
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#67
DOG, ENGAGEMENT 6-FACE
3235233
|
$159.99 | ||
|
Available to order. Add to View Price |
|||
|
#68
GEAR, 46T STAGE 3
3235236
|
$134.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#69
GEAR, 13T SNORKEL
3235237
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#70
SHAFT-SHIFT(352973)
3235238
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#71
GEAR, 46T STAGE 2
3235381
|
$164.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#72
SHIFT DOG, PARK
3235457
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#73
RAIL, SHIFT SHAFT
3235542
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#74
SPROCKET, 48T 6-FACE
3235755
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#75
PARK CAM
3235983
|
$189.99 | ||
|
Available to order. Add to View Price |
|||
|
#76
DRUM, SHIFT MACH
3235984
|
$344.99 | ||
|
Available to order. Add to View Price |
|||
|
#77
WELDMENT, REAR MOUNT BRACKET
3235399
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#78
GEAR SUBASSEMBLY
3234469
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#79
SUBASSEMBLY, SECTOR COVER
3235713
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#80
SUBASSEMBLY, AVALANCHE DIFFERENTIAL
3235373
|
$514.99 | ||
|
Available to order. Add to View Price |
|||
|
#81
SUBASSEMBLY, DIFF COVER
3235376
|
$174.99 | ||
|
Available to order. Add to View Price |
|||
|
#82
SUBASSEMBLY, 39T SIDE GEAR
3235374
|
$234.99 | ||
|
Available to order. Add to View Price |
|||
|
#83
SUBASSY, 39T SIDE GEAR
3235375
|
$234.99 | ||
|
Available to order. Add to View Price |
|||
|
#84
SUBASM.,SHAFT
3235336
|
$469.99 | ||
|
Available to order. Add to View Price |
|||
|
#85
SUBASSY, GEAR 53T
3235378
|
$499.99 | ||
|
Available to order. Add to View Price |
|||
|
#86
SUBASSEMBLY, PAWL, DETENT, ROLLER
3235452
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#87
SUBASSEMBLY LH CASE
3235757
|
$544.99 | ||
|
Available to order. Add to View Price |
|||
|
#88
SUBASSEMBLY, SHIFT FORK
3235920
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#89
SUBASSEMBLY RH COVER
3235995
|
$544.99 | ||
|
Available to order. Add to View Price |
|||
|
#90
RETAINER-FORK
3234934
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#91
COVER-BEARING,CNTR DR.
3235241
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#92
BRACKET, WIRE HARNESS
3235350
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#93
BRACKET, REAR MOUNT
3235398
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#94
CHAIN,SIL 101,.25P X .40W X58L
3234737
|
$209.99 | ||
|
Available to order. Add to View Price |
|||
|
#95
SOLENOID
3235478
|
$364.99 | ||
|
Available to order. Add to View Price |
|||
|
#96
SENSOR-SPEED,TRANS
4013908
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#97
SWITCH, ROTARY, 2 PIN RESISTIVE
7662299
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#98
O-RING
3234302
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#99
O-RING, -12 VITON
3233836
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#100
O-RING, -14 VITON
3233828
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#101
SEAL, TRIPLE LIP, VITON, 40 X 70 X 7
3235052
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#102
SEAL, DUAL LIP, 30 X 47 VITON
3235495
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#103
SEAL, TRIPLE LIP, VITON 25X80X10
3235658
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#104
PLUG,EXPANSION,1 1/4
3234249
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
