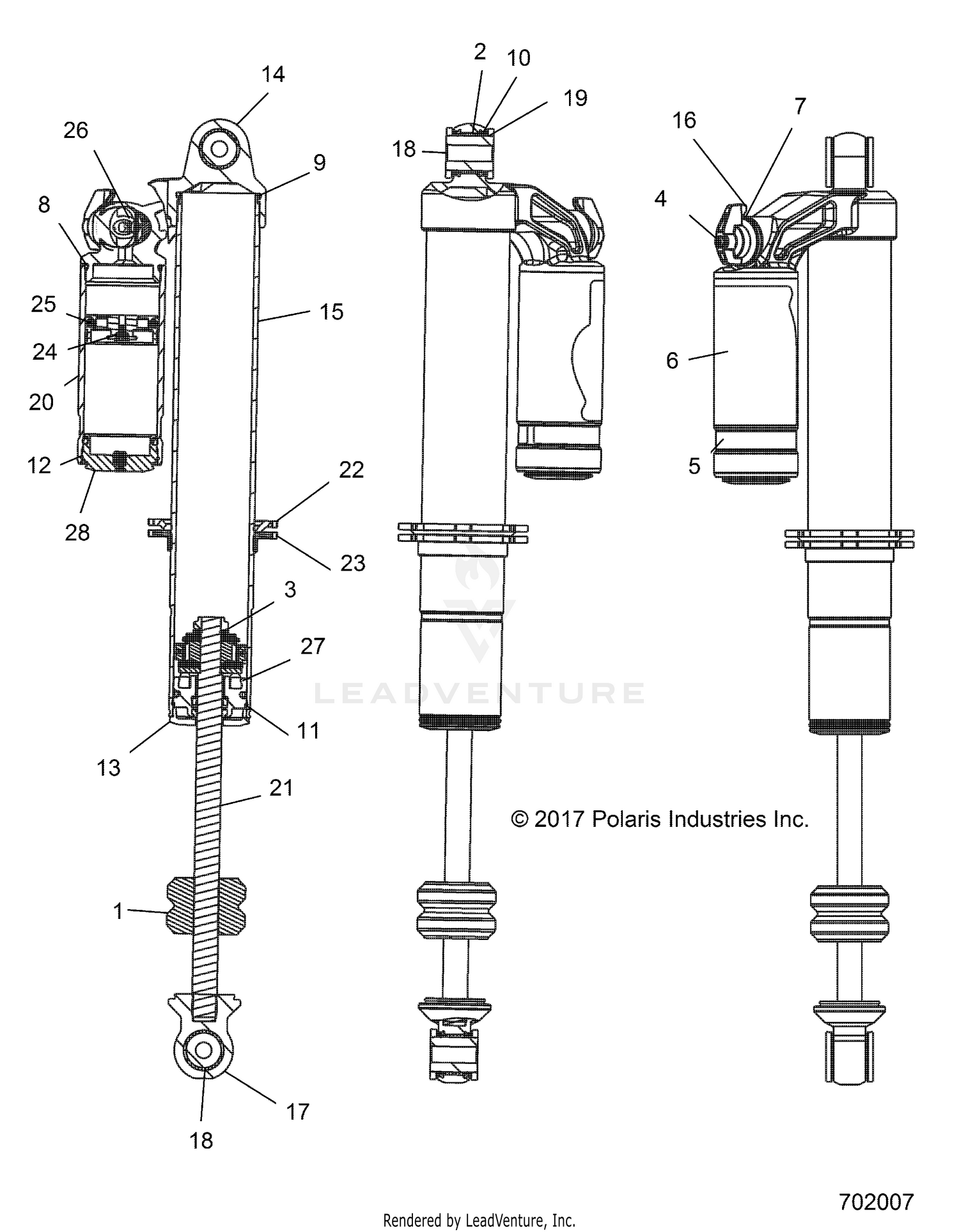

Suspension, Front Shock Internals - R19rhe99nd (702007) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
SHOCK-FRONT,PIGGYBK,LH
7044687
|
$645.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SHOCK-FRONT,PIGGYBK,RH
7044688
|
$684.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
BUMPER, B/O SHAFT
1501028
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BUSHING, EYELET
1501010
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Nut, Lock
1500842
Superseded by 1500472
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, #4, SS PAN
1501011
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
DECAL, PERF SERIES
1501012
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
DECAL, RESERVOIR
1501013
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
DECAL, BASE VALVE
1501105
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-RING,.103W-1.737ID
1500623
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEALS:O-RING [(-135) .103 C.S. X 1.925 ID] STANDARD, N-70, STATIC
1500510
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SEAL, WEATHER
1501014
|
$10.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
RETAINING RING: WIRE [0.062 CS X 1.850 ID] 17-7 SS
1500236
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
RING-RETAINING, WIRE 2.050
1501015
|
$11.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
CAP, BEARING
1501100
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BODY CAP
1501029
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BODY CAP
1501030
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BODY
1501031
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
KNOB, DAMP ADJ.
1501108
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
EYELET PARTS
1501032
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
EYELET PART: SLEEVE, .397 ID X .875 OD X 1.181 TLG
1501087
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
EYELET PART: SPACER, .876 ID X 1.25 OD X .150 TLG
1501088
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
RESERVOIR:0 1.834 BORE,5.000TLG ALUMINUM THREADED ID SHORT OD STEP
1501023
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SHAFT
1501033
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPRING HARDWARE: PRELOAD RING BACK UP [3.250 OD X 0.280 TLG, 2.080-14 STUB ACME ID] LOW CARBON STEEL, ZINC PLATED
1500872
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPRING HARDWARE: PRELOAD RING [3.250 OD X 0.515 TLG, 2.080-14 STUB ACME ID] LOW CARBON STEEL, ZINC PLATED
1500873
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW ASSEMBLY: [FLAT HEAD SOCKET CAP #10-24 X 0.375 TLG] STEEL BLACK OXIDE, COMPLETE
1500161
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
ASM., PISTON, FLOAT
1501026
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
DAMPING ADJUSTMENT ASSEMBLY
1501187
|
$304.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
ASM., BEARING, .62SHAFT
1501185
|
$169.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
ASM., END CAP, RESERVOIR
1501027
|
$114.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
