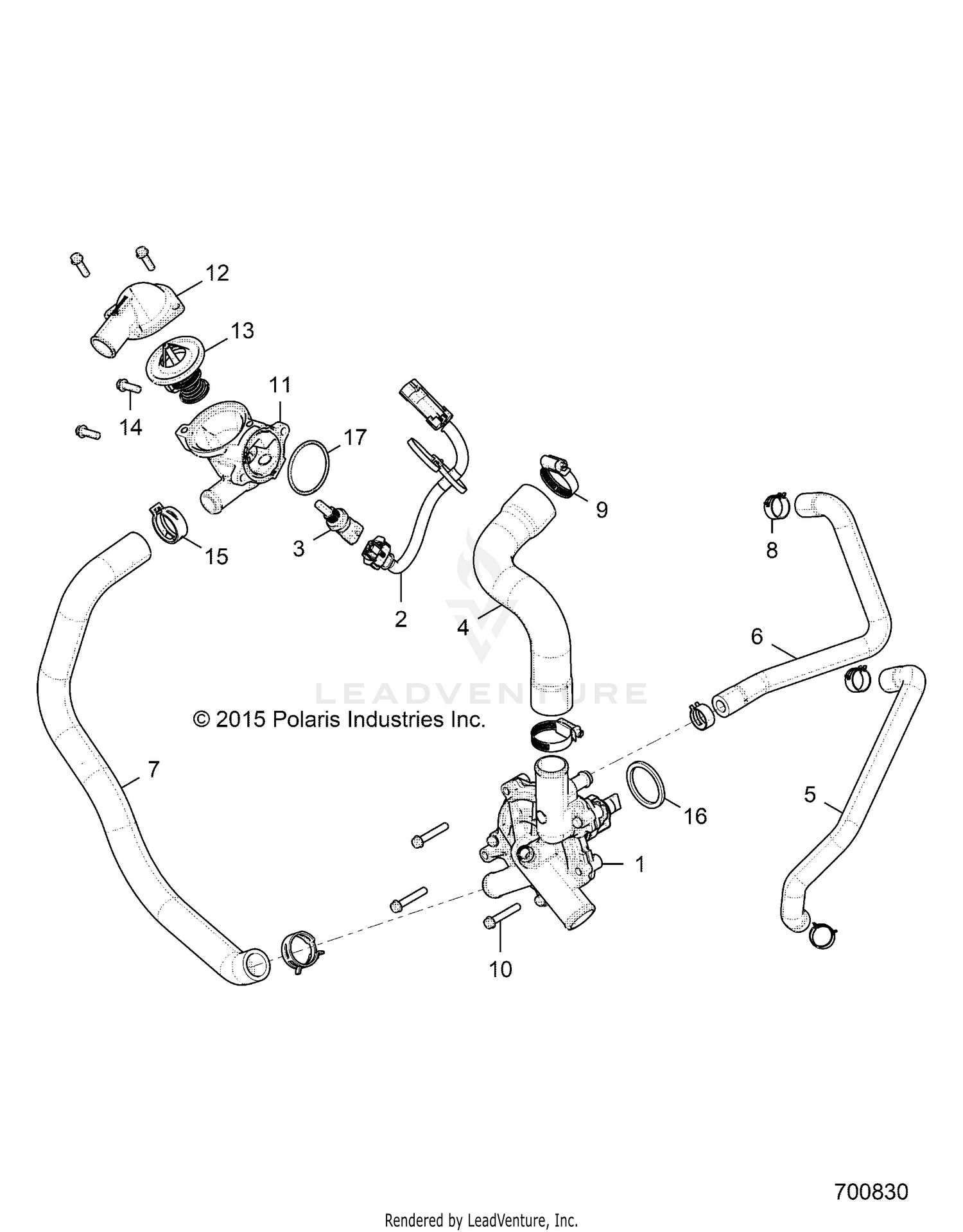

Engine, Waterpump And Bypass - R19rhe99nd (700830) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM, WATERPUMP
1205014
|
$244.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
WIRE-THERMISTER LEAD
4014319
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SENSOR-THERMISTER
4010644
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOSE-WATERPUMP,OUT
5416305
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOSE-OIL COOLER OUT
5416752
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOSE-OIL COOLER,IN
5416307
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOSE-BYPASS
5416629
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP, HOSE, SPRING
7081026
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP-HOSE(WORM DR)25-40MM
7081192
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW
7519280
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOUSING, THERMOSTAT
5139853
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER, THERMOSTAT, CAST
5632421
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
THERMOSTAT
7052600
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW
7518576
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP, SPRINGBAND
7081970
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
FILTER-WP
5814207
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING
5414591
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
