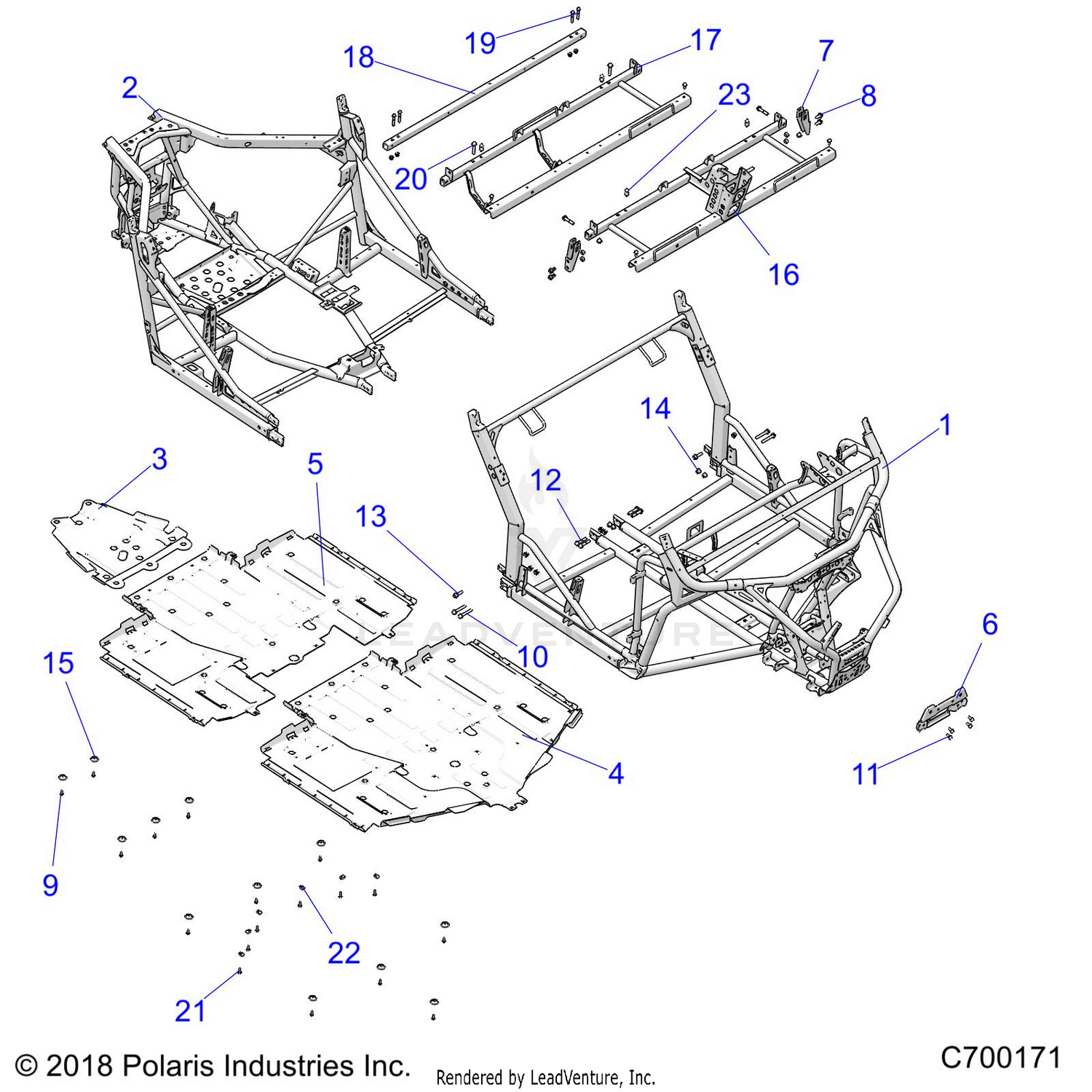

Chassis, Main Frame And Skid Plates - R19rhe99nd (c700171) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WELD-MAIN FRAME,FRONT,BLK
1024256-458
|
$2,909.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
WELD-MAIN FRAME,CREW,BLK
1024120-458
|
$2,594.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLATE-SKID,REAR,BLK
5450706-070
|
$219.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLATE-SKID,BLK
5452060-070
|
$174.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE-SKID,CREW,BLK
5452851-070
|
$169.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRKT-SUSP MNT,FRT,M.BLK
5259449-458
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRKT-SEAT SUPPORT,CREW,E-COAT
5262185-329
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCR-M10X1.5X25-8.8 HFS ZOD
7518934
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT-M10X1.25X70,HXFLG-OLIVE D
7518561
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
7518555
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW
7519285
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW
7519332
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
WASHER-SKID PLATE
7556065
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
WELD-SEAT BASE,FRONT,E-COAT
1022146-329
|
$409.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
WELD-SEAT BASE,REAR.E-COAT
1022147-329
|
$289.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
ASM-TUBE,TOP FRAME,E-COAT
1022891-329
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCR-M8X1.25X55,HX/FL-Y
7517281
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT
7518474
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCR-TXTH-M6X1.0X25 ZFB
7519650
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
NUT-M6-1.0,U-TYPE (2.5-3.8)
7547674
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
PLUNGER-LATCH,SEAT
5632848
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
