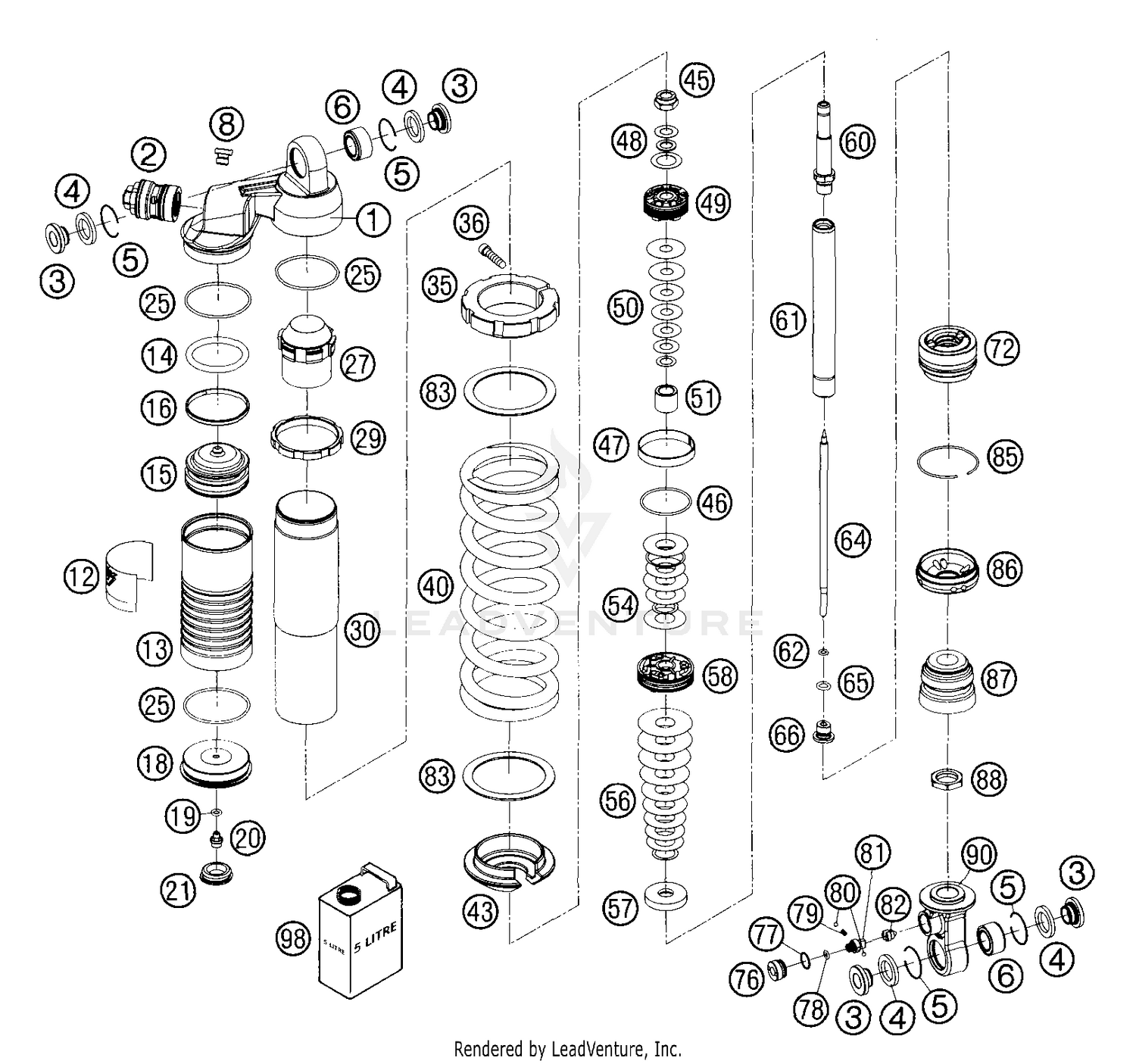

Monoshock Wp Disassembled Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHOCK ABSORBER TOP H40 135DEG.
46180348
|
$261.42 | ||
|
Available to order. Add to View Price |
|||
|
#2
DCC-COMPR.DAMP. CONTROL CPL. 03
50180213S4
|
|||
|
Unavailable |
|||
|
#3
Distance bush 12x15/18/24,5x10,5
46180007
|
$20.89 | ||
|
Available to order. Add to View Price |
|||
|
#4
Seal ring 19,5x26x3
46180003
|
$6.59 | ||
|
Available to order. Add to View Price |
|||
|
#5
Round-wire snap ring 25x1
50180168
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#6
Ball joint bearing 15x25x13
50180005
|
$34.53 | ||
|
Available to order. Add to View Price |
|||
|
#8
HS cylinder-head screw R1/8 l8
50180095
|
$2.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
Sticker WP clear 35x55
52000014
Superseded by 52000086
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#13
RESERVOIR SCREW L=113,5 D=52
46180319
|
|||
|
Unavailable |
|||
|
#14
O-ring 41x5 Viton75
46180014
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#15
Piston 52mm reservoir
46180002
|
$51.36 | ||
|
Available to order. Add to View Price |
|||
|
#16
Pistonring 47,5x50,5x3,9
46180015
|
$11.76 | ||
|
Available to order. Add to View Price |
|||
|
#18
RESERVOIR CAP D=58
50180344
|
$141.74 | ||
|
Available to order. Add to View Price |
|||
|
#19
O-ring 5,28x1,78 HNBR70 red
46810893
Superseded by S208600003000FB
|
$0.76 | ||
|
Available to order. Add to View Price |
|||
|
#20
PLUG SCREW M5X6 CPL.
36120151
Superseded by 36120151ST
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#21
Rubber cap do not open 22x5,5 NBR
46811208
|
$3.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
O-ring 48x2 NBR70 siliconized
46810016
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#27
SLEEVED=48
46180340
|
|||
|
Unavailable |
|||
|
#29
LOCK WASHER M52X1,5
46180352
|
$52.57 | ||
|
Available to order. Add to View Price |
|||
|
#30
TUBE M52X1,5
46180345
|
|||
|
Unavailable |
|||
|
#35
SPRING RETAINER M52X1,5
46180353
|
$148.66 | ||
|
Available to order. Add to View Price |
|||
|
#36
AH SCREW DIN0912-M 5X25
0912050253
|
$1.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
SPRING (59) 215 35 N/MM D=9,25
91010240
|
|||
|
Unavailable |
|||
|
#40
Mainspring (59) 40-215 damper white
91010161
|
$203.47 | ||
|
Available to order. Add to View Price |
|||
|
#40
Mainspring (59) 45-215 damper white
91010201
|
$153.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
Spring retainer 28x56x15
46180349
|
$36.29 | ||
|
Available to order. Add to View Price |
|||
|
#45
PISTON ROD NUT M10X1
46180356
|
$9.12 | ||
|
Available to order. Add to View Price |
|||
|
#46
O-ring 37x,82x1,78 Viton70 green
46810035
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#47
Piston ring 43,95x45,95x8
46811206
|
$20.89 | ||
|
Available to order. Add to View Price |
|||
|
#48
SHIM 10X19X0,30
36120349
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#48
Shim 16x25x0,25
50180032
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#48
RING 10X16X1
50180395
|
$5.69 | ||
|
Available to order. Add to View Price |
|||
|
#49
Piston 10,05x35,5x13,7 3,5/5,5
14460016
|
$68.41 | ||
|
Available to order. Add to View Price |
|||
|
#50
SHIM 10X16X0,30
36120312
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#50
SHIM 10X21X0,20
36120334
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#50
SHIM 10X23X0,20
36120335
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#50
SHIM 10X25X0,20
36120336
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#50
SHIM 10X27X0,20
36120337
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#50
SHIM 10X29X0,20
36120338
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#50
SHIM 10X31X0,20
36120339
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#51
SEPARATION BUSH 17X12X18
46180339
|
$33.89 | ||
|
Available to order. Add to View Price |
|||
|
#54
SHIM 12X36X0,25
46810505
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#54
SHIM 12X28X0,15
46810519
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#54
Shim 12x34x0,20
46810495
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#54
Shim 12x32x0,20
46810494
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#54
SHIM 12X30X0,20
46810493
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#54
Shim 12x28x0,20
46810492
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#54
Shim 12x17x0,30
46810637
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#56
Shim 12x26x0,20
46810491
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#56
Shim 12x28x0,20
46810492
|
$2.41 | ||
|
Unavailable |
|||
|
#56
SHIM 12X30X0,20
46810493
|
$2.41 | ||
|
Unavailable |
|||
|
#56
Shim 12x32x0,20
46810494
|
$2.41 | ||
|
Unavailable |
|||
|
#56
SHIM 12X30X0,15
46810520
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#56
SHIM 12X34X0,15
46810522
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#56
SHIM 12X36X0,15
46810523
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#56
SHIM 12X38X0,15
46810524
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#56
SHIM 12X40X0,15
46810525
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#56
Shim 12x17x0,30
46810637
|
$2.41 | ||
|
Unavailable |
|||
|
#57
REBOUND DISC H=0
46180179
|
|||
|
Unavailable |
|||
|
#57
Rebound disc 12x34x7 h4
46180337
|
$38.49 | ||
|
Available to order. Add to View Price |
|||
|
#58
PISTON 5X4,5X/6X6
46180047
|
$213.88 | ||
|
Available to order. Add to View Price |
|||
|
#60
TAP PISTON ROD D=13,5
46180343
|
|||
|
Unavailable |
|||
|
#61
SPINDEL D=18 LC=159
46180342
|
$113.24 | ||
|
Available to order. Add to View Price |
|||
|
#62
O-ring 5x1,5 Viton70
50180397
|
$1.04 | ||
|
Available to order. Add to View Price |
|||
|
#64
NEEDLE REBOUND L=169
46180346
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#65
O-RING NBR 7,5X2
46180018
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#66
NEEDLE GUIDE
46180350
|
$10.39 | ||
|
Available to order. Add to View Price |
|||
|
#72
ADAPTOR CPL. D=46 H=28 D=38
46180341S
|
$179.34 | ||
|
Available to order. Add to View Price |
|||
|
#76
Screw cap M16x1
46180355
Superseded by 46180005
|
$33.09 | ||
|
Available to order. Add to View Price |
|||
|
#77
O-ring 12x1 NBR70
46180013
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#78
O-ring 4x1,5 NBR70
50180222
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#79
Spring (1,7) l7,9
48600028
|
$3.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#80
Steel ball d3
40540603
|
$1.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#81
Adjustment screw slot rebound
46180006
|
$26.50 | ||
|
Available to order. Add to View Price |
|||
|
#82
Adjustment screw slot rebound
46180016
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#83
Washer 58,6x73,6x1,5
50180410
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#85
Round-wire snap ring 49x1,8
46810010
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#86
Cover 46,12x6,2 h15,7
46180338
|
$40.58 | ||
|
Available to order. Add to View Price |
|||
|
#87
Rubber pad 17,2x45,2x40 black
50180276
|
$9.89 | ||
|
Available to order. Add to View Price |
|||
|
#88
HH locking nut M18x1 h5 WAF24
50180283
|
$14.29 | ||
|
Available to order. Add to View Price |
|||
|
#90
SHOCK ABSORBER BOT. KGW L=54,5
46180347
|
$247.39 | ||
|
Available to order. Add to View Price |
|||
|
#98
SHOCK ABSORBER FLUID 5 LT
50180342S1
Superseded by 50180751S1
|
$175.99 | ||
|
Available to order. Add to View Price |
|||
