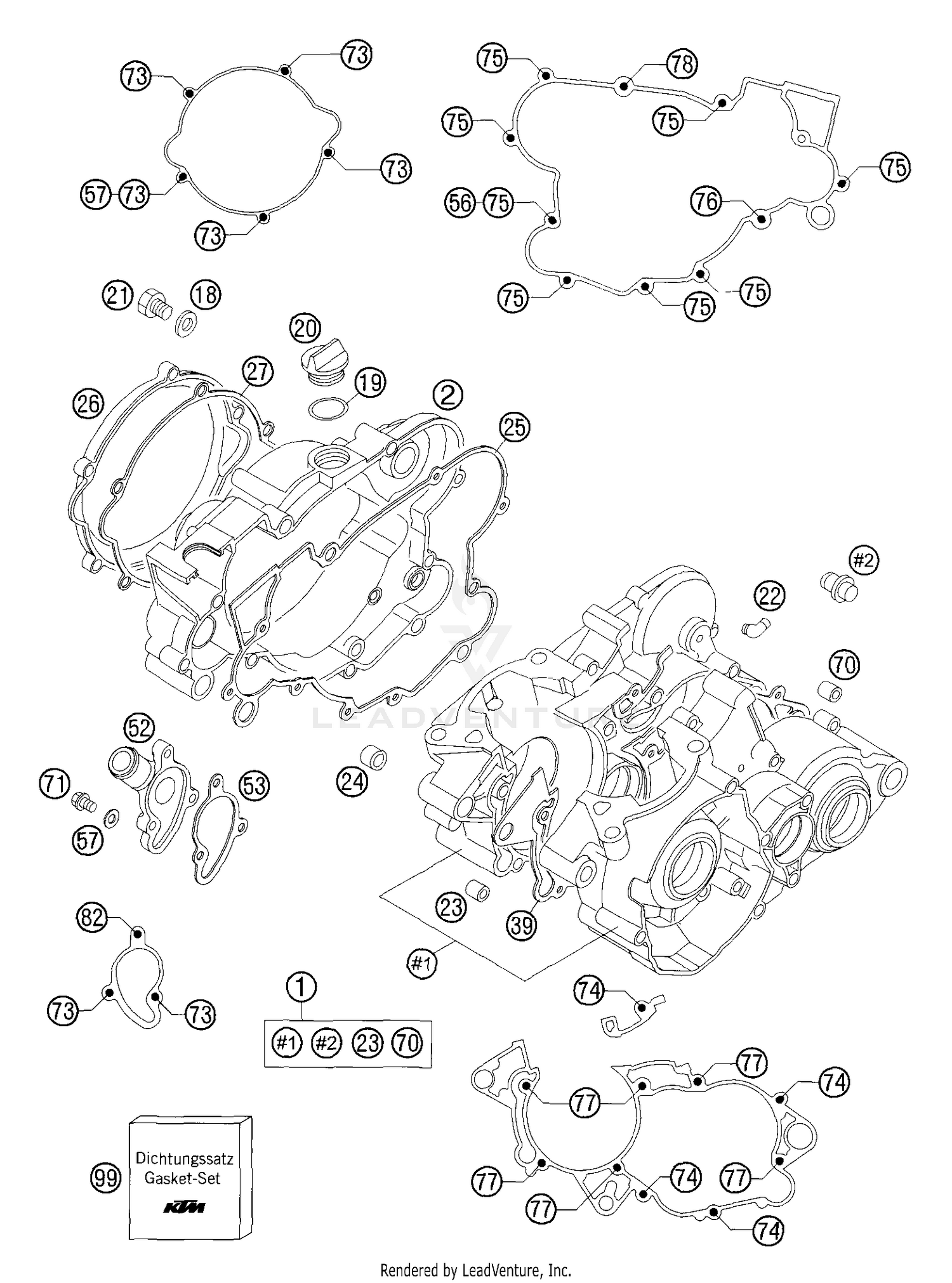

Engine Case Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ENGINE CASE CPL. 85 SX 2008
47030000044
Superseded by 47030000144
|
$461.00 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLUTCH COVER 85 SX 06
47030001000
Superseded by 47030001100
|
$200.41 | ||
|
Available to order. Add to View Price |
|||
|
#18
COPPER GASKET 10,2X14X2 MM 01
0603101420
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
O-RING 16,00X3,00 NBR 70
0770160030
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
oil plug cpl. M24x3
58030020000
Superseded by 58030020100
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#21
OIL DRAIN PLUG M10 WS=13
46030021100
|
$15.83 | ||
|
Available to order. Add to View Price |
|||
|
#22
ANGLE PIECE 50CCM LC 2001
45130022000
|
$6.92 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
DOWEL 13X13
47030023100
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#24
DOWEL 7X9X10
45130023000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#25
INNER CLUTCH COVER GASKET
47030025000
|
$20.56 | ||
|
Available to order. Add to View Price |
|||
|
#26
OUTER CLUTCH OVER 85 SX 06
47030101000
Superseded by 47030101100
|
$99.76 | ||
|
Available to order. Add to View Price |
|||
|
#27
GASKET FOR OUTER CLUTCH COVER
47030027000
Superseded by 47030027100
|
$14.07 | ||
|
Available to order. Add to View Price |
|||
|
#39
GASKET F. ENGINE CASE 85 SX 03
47030039000
|
$20.67 | ||
|
Available to order. Add to View Price |
|||
|
#52
WATER PUMP COVER 85 SX 2003
47035052000
|
$48.28 | ||
|
Available to order. Add to View Price |
|||
|
#53
GASKET FOR WATER PUMP COVER 03
47035053000
|
$12.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#56
SPRINGHOLDER
47003071000
|
$10.66 | ||
|
Available to order. Add to View Price |
|||
|
#57
CU-SEAL RING DIN7603-6X10X1
0603061001
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#70
DOWEL 14,5X19
47030023000
|
$8.24 | ||
|
Available to order. Add to View Price |
|||
|
#71
HH collar screw M6x10 TX30
0015060103
Superseded by 0025060106
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#73
HH collar screw M6x20 TX30
0015060203
Superseded by 0025060206
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#74
HH collar screw M6x25 TX30
0015060253
Superseded by 0025060256
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#75
HH collar screw M6x30 TX30
0015060303
Superseded by 0025060306
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#76
HH collar screw M6x35 TX30
0015060353
Superseded by 0025060356
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#77
HH collar screw M6x40 TX30
0015060403
Superseded by 0025060406
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#78
HH COLLAR SCREW M6X45 TX30
0015060453
Superseded by 0025060456
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#82
HH COLLAR SCREW M 6X65 WS=8
0015060653
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#99
GASKET SET CPL. 85/105SX 04
47030099100
|
$225.49 | ||
|
Available to order. Add to View Price |
|||
