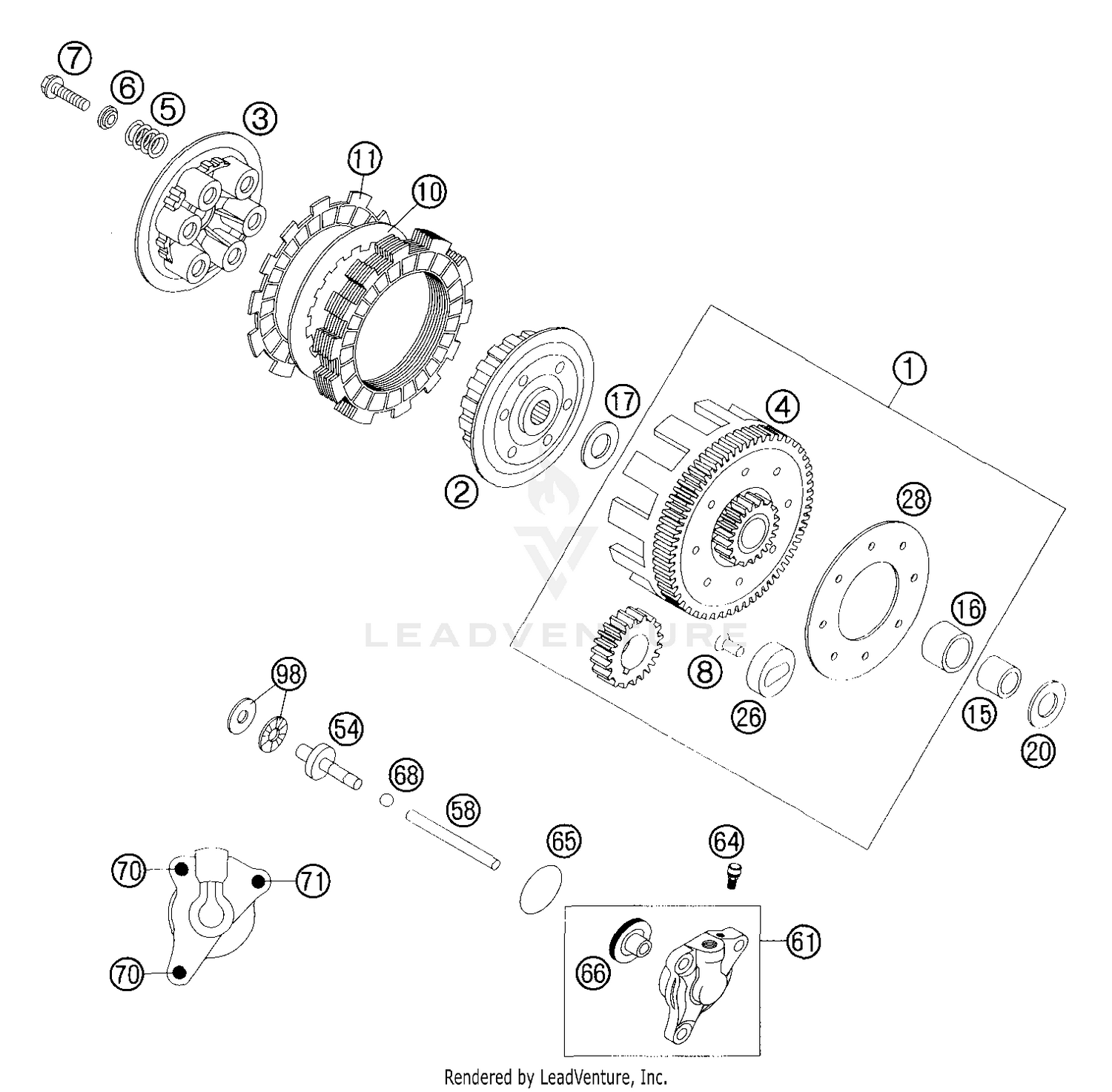

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
OUTER CL. HUB CPL. 85 SX 03
47032001044
|
$291.33 | ||
|
Available to order. Add to View Price |
|||
|
#2
INNER CLUTCH HUB 85 SX 2003
47032002000
|
$156.89 | ||
|
Available to order. Add to View Price |
|||
|
#3
PRESSURE CAP 85 SX 2003
47032003000
|
$87.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
OUT. CLUTCH HUB LOOSE 85 SX 07
47032001000
Superseded by 47032001100
|
$80.18 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLUTCH SPRING 85 SX 2003
47032005000
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
SPRING RETAIN. 5,1X10,2X15X2,5
47032006000
|
$12.97 | ||
|
Available to order. Add to View Price |
|||
|
#7
HH collar screw M5x20 TX30
0015050203
Superseded by 0025050206
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
RIVET DIN0661 5X14
47032008000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
STEEL DISC 85 SX 03
47032010000
|
$11.32 | ||
|
Available to order. Add to View Price |
|||
|
#11
LINING DISC 85 SX 2003
47032011000
|
$32.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BUSHING 20X25X20,5
47032015000
|
$42.34 | ||
|
Available to order. Add to View Price |
|||
|
#16
INNER RING 25X28X20
47032016000
|
$17.59 | ||
|
Available to order. Add to View Price |
|||
|
#17
SUPPORT WASHER 18,5X35X1,5 03
47032017000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
thrust washer 20x32x2
47032020000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
DAMPING ELEMENT 85 SX 2003
47032026000
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
RETAINING PLATE 85 SX 2003
47032028000
|
$13.08 | ||
|
Available to order. Add to View Price |
|||
|
#54
PRESSURE PLATE 85 SX 2003
47032054000
|
$39.15 | ||
|
Available to order. Add to View Price |
|||
|
#58
PUSH ROD 85 SX 2003
47032058000
|
$17.70 | ||
|
Available to order. Add to View Price |
|||
|
#61
OUTPUT CYL. WITH BLEEDER SCREW
59032061044
Superseded by 75032061044
|
$283.24 | ||
|
Available to order. Add to View Price |
|||
|
#64
BLEEDER SCREW WITH CAP
54732064000
|
$25.84 | ||
|
Available to order. Add to View Price |
|||
|
#65
O-RING 30,00X1,50 NBR 70
0770300015
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#66
OUTPUT CYL. WITH BLEEDER SCREW
59032066000
Superseded by 75032061044
|
$283.24 | ||
|
Unavailable |
|||
|
#68
BALL D=6MM 85 SX 2003
47032068000
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#70
HH collar screw M6x16 TX30
0015060163
Superseded by 0025060166
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#71
HH collar screw M6x20 TX30
0015060203
Superseded by 0025060206
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#98
AXIAL NEEDLE BEARING 85 SX 03
47032098000
|
$11.87 | ||
|
Available to order. Add to View Price |
|||
