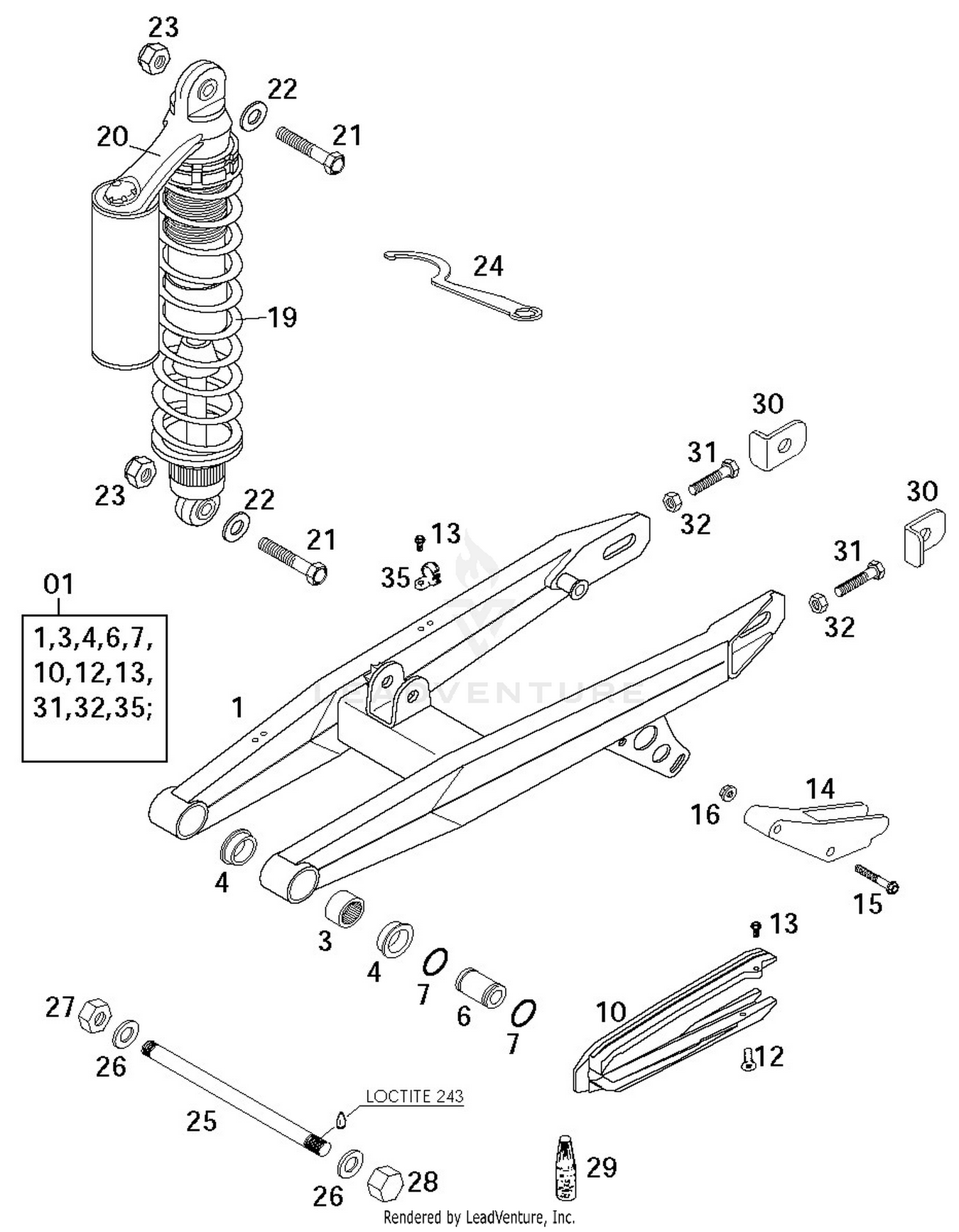

Swingarm, Shock Absorber Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#01
SWINGARM CPL. 65 SX 2001
46004030344
|
$426.91 | ||
|
Available to order. Add to View Price |
|||
|
#3
NEEDLE BUSH HK 2016
54603097000
|
$17.70 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPACER BUSHING 20X26X30X9,7
46004030070
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
BUSHING BOX 12X20X36,5
46004030071
|
$21.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
O-RING 16,00X2,00 VITON
0770160021
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CHAIN SLIDING PROTECTION
49007073000
|
|||
|
Unavailable |
|||
|
#12
FLAT HEAD SCREW DIN0965-M 5X10
0965050103
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
EJOT SPIRAL SCREW SF M5X10-K
0009050103
Superseded by 0009050106
|
$2.99 | ||
|
Unavailable |
|||
|
#14
CHAIN GUIDE REAR 60/65 '98
46007066000
|
$16.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
HH collar screw M6x40 TX30
0015060403
Superseded by 0025060406
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
SELF LOCKING NUT M6 10.9
56509064100
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
SPRING WP 35-220
93010116
|
|||
|
Unavailable |
|||
|
#19
SPRING WP 40-220
93010049
|
$150.91 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPRING WP 45-220
93010050
|
$173.24 | ||
|
Available to order. Add to View Price |
|||
|
#20
MONOSHOCK WP 65SX 2000
0318U706
|
$965.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
HH SCREW DIN0931-M10X45
0931100453
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
washer DIN 125 A 10.5
0125100003
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
SELF LOCKING NUT M10 CU WS=14
54310086100
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
HOOK WRENCH FOR SHOCK ABSORBER
46012024000
|
$22.54 | ||
|
Available to order. Add to View Price |
|||
|
#25
SWINGARM BOLT 201MM M12X1
46004037000
|
$28.18 | ||
|
Available to order. Add to View Price |
|||
|
#26
FLAT WASHER DIN0125-A13
0125120003
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
Nut M12x1 h10 WAF19 DIN 934
0934120103
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
NUT DIN917-M12X1
0917120103
|
$6.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
LOCTITE 243 BLUE 5 ML
6899785
|
$32.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
CHAIN ADJUSTER 60/65 '98
46010083000
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
HH SCREW DIN0933-M 6X30
0933060303
|
$0.79 | ||
|
Available to order. Add to View Price |
|||
|
#32
hex nut DIN 934 M6
0934060003
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
RETAIN.CLAMP FOR BRAKE HOSE'96
54611076100
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
