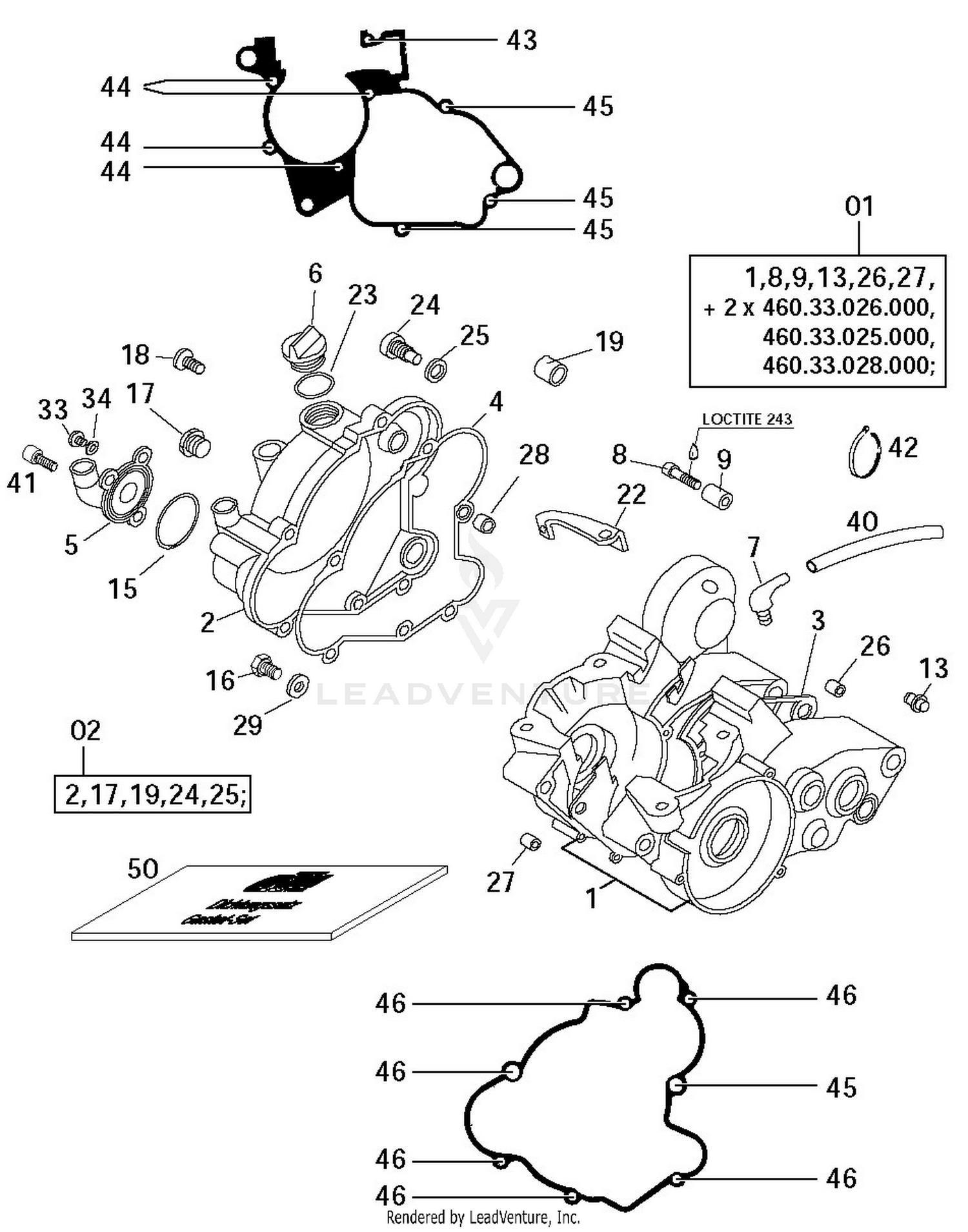

Engine Case Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#01
ENGINE CASE CPL.W.TRAN.BEAR'98
46030000044
|
$556.55 | ||
|
Available to order. Add to View Price |
|||
|
#02
CLUTCH COVER CPL. 60/65 '99
46030001100
|
$178.59 | ||
|
Available to order. Add to View Price |
|||
|
#3
ENGINE CASE GASKET 60/65
46030039000
|
$8.57 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLUTCH COVER GASKET INSIDE
46030025000
|
$17.26 | ||
|
Available to order. Add to View Price |
|||
|
#5
WATER PUMP COVER 60/65 '98
46035052000
|
$117.37 | ||
|
Available to order. Add to View Price |
|||
|
#6
oil plug cpl. M24x3
58030020000
Superseded by 58030020100
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
ANGLE PIECE 90 DEGREE M10X1
51030022000
|
$6.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
O-RING
46035053000
|
|||
|
Unavailable |
|||
|
#16
OIL DRAIN PLUG M10
46030021000
|
|||
|
Unavailable |
|||
|
#17
LENS TYPE GN 540
49030095000
|
$16.38 | ||
|
Available to order. Add to View Price |
|||
|
#18
FLAT HEAD DIN7991-M 6X20
0991060203
Superseded by 0991060202
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
SUPPORT FOR CLUTCH CABLE
46032059000
|
|||
|
Unavailable |
|||
|
#23
O-RING 16,00X3,00 NBR 70
0770160030
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
DOWEL 17X15
46030023100
|
$10.07 | ||
|
Available to order. Add to View Price |
|||
|
#27
DOWEL 12X14,5
46030023000
|
$8.81 | ||
|
Available to order. Add to View Price |
|||
|
#28
DOWEL 9X15
46030024000
|
$20.89 | ||
|
Available to order. Add to View Price |
|||
|
#29
CU-SEAL RING DIN7603-10X16X1
42013226000
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
PLUG M6X7
46035061000
|
$5.35 | ||
|
Available to order. Add to View Price |
|||
|
#34
CU-SEAL RING DIN7603-6X10X1
0603061001
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
PVC-HOSE 5 X 8 MM
31007007001
|
$6.92 | ||
|
Available to order. Add to View Price |
|||
|
#41
AH SCREW DIN0912-M 6X16
0912060163
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#42
CABLE TIE 140/2,5MM BLACK
44011076100
Superseded by 44011076140
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#43
AH SCREW DIN0912-M 6X40 A2
0912060404
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#44
AH SCREW DIN0912-M 6X45
0912060453
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
AH SCREW DIN0912-M 6X30
0912060303
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#46
AH SCREW DIN0912-M 6X25
0912060253
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#50
GASKET SET CPL. 65 SX 2002
46030099000
Superseded by 46030099100
|
$150.44 | ||
|
Available to order. Add to View Price |
|||
