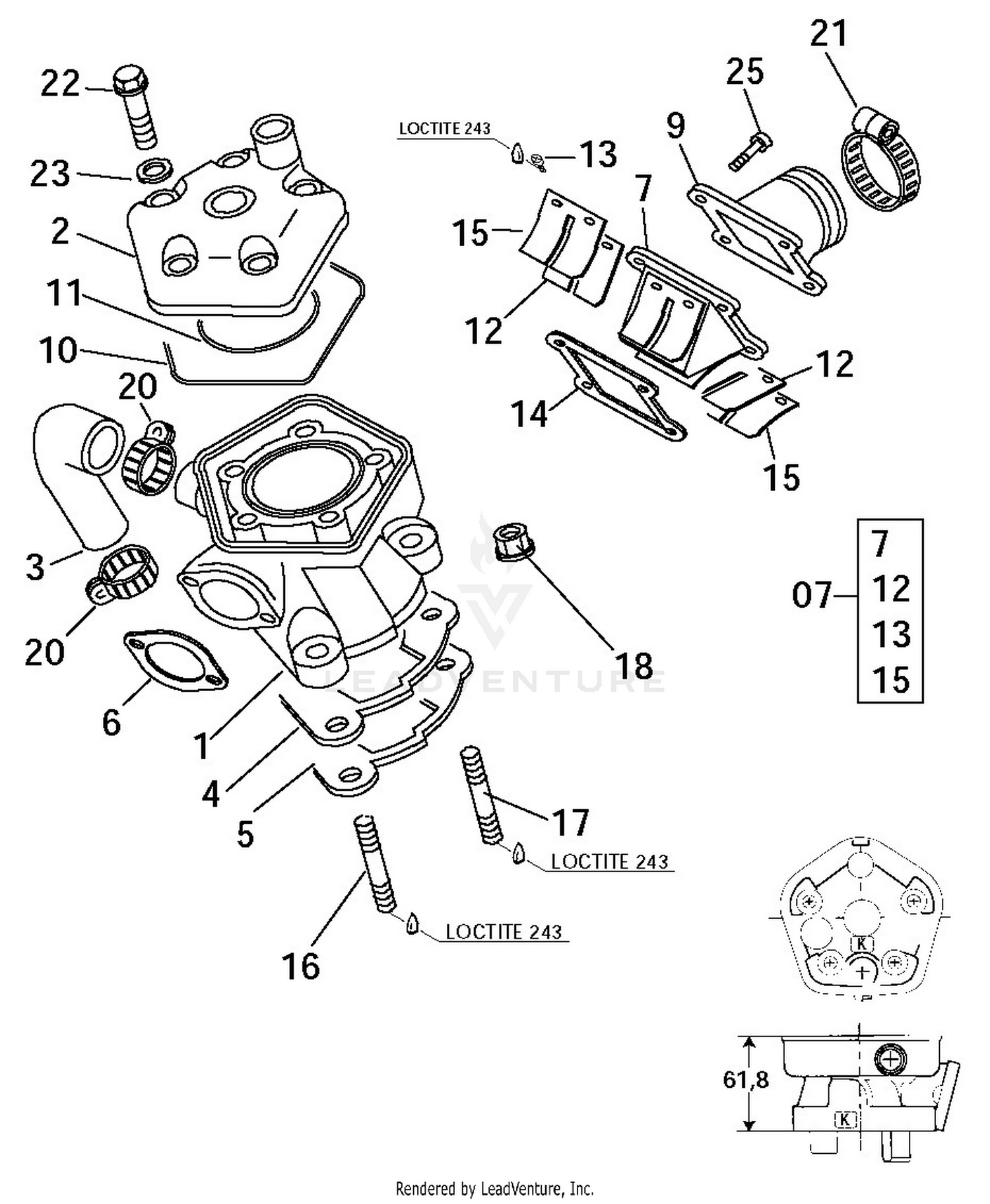

Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER W.PISTON 45MM „K" 65CCM
46030005500
|
|||
|
Available to order. Add to View Price |
|||
|
#2
CYLINDERHEAD ''K'' 65CCM '99
46030006600
|
$212.69 | ||
|
Available to order. Add to View Price |
|||
|
#3
PRE-FORM.HOSE CYL.-CLUTCH COV.
46035027000
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#4
CYLINDER BASE GASKET 0,5 MM
46030035050
|
$12.20 | ||
|
Available to order. Add to View Price |
|||
|
#5
CYLINDER BASE GASKET 0,2 MM
46030035020
|
$14.07 | ||
|
Available to order. Add to View Price |
|||
|
#6
EXHAUST GASKET 60/65 CCM
46030046000
|
$8.57 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#07
MEMBRANE HOUSING CPL.65SX 2001
46030051144
|
$86.29 | ||
|
Available to order. Add to View Price |
|||
|
#9
INTAKE FLANGE
46030050000
|
$82.71 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-RING 94,97X1,78
46030037000
|
$8.63 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING 53,7X1,78 VITON
46030036000
|
$10.66 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
MEMBRANE LOOSE 60/65 CCM
46030052000
|
$19.57 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
FLAT HEAD SCREW DIN7985-M 3X6
0985030063
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
INTAKE VALVE GASKET
46030049000
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#16
STUD M8X41
46030043000
|
$6.81 | ||
|
Available to order. Add to View Price |
|||
|
#17
STUD M8X44
46030043100
|
$5.87 | ||
|
Available to order. Add to View Price |
|||
|
#18
flanged nut M8 WS10
46030045000
|
$9.23 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
Hose clip 18-29
10001020000
Superseded by 0310000902900
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOSE CLAMP 32-52MM D5
31001027000
|
$7.02 | ||
|
Available to order. Add to View Price |
|||
|
#22
CYLINDERHEADSCR.HH-M7X33 2001
46030079000
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#23
CU-SEAL RING DIN7603- 7,3X12X1
50230032010
Superseded by 0603070121
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
AH SCREW DIN0912-M 6X20
0912060203
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
