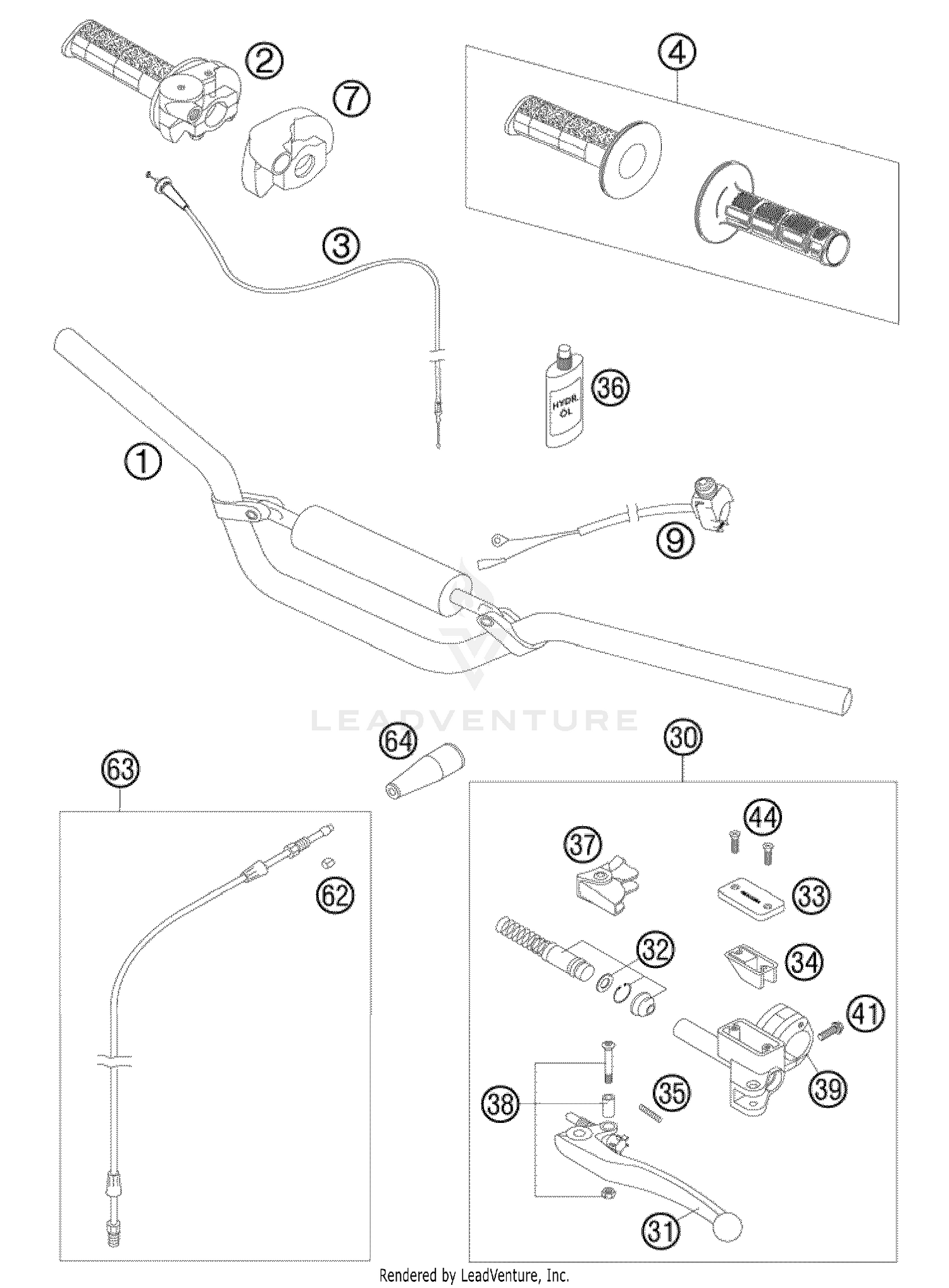

Handlebar, Controls Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HANDLEBAR 65 SX 2016
46202001000
Superseded by 46302001000
|
$169.50 | ||
|
Available to order. Add to View Price |
|||
|
#3
THROTTLE CABLE 65 SX 2009
46202091000
|
$50.92 | ||
|
Available to order. Add to View Price |
|||
|
#4
GRIP SET DUAL COMPOUND
63002021100
|
$30.79 | ||
|
Unavailable |
|||
|
#7
PROTECTION COVER '97
50302020000
|
$22.54 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHORT CIRCUIT BUTTON 02
50311089200
|
$44.21 | ||
|
Available to order. Add to View Price |
|||
|
#30
MASTER CYLINDER CPL. D=9MM 05
46102030100
|
$334.39 | ||
|
Available to order. Add to View Price |
|||
|
#31
CLUTCH LEVER SHORT CPL. 2003
54602031000
|
$47.18 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
CLUTCH LEVER LONG CPL. 2003
59002031000
|
$47.18 | ||
|
Available to order. Add to View Price |
|||
|
#32
REP.KIT PISTON 9,0MM RAC. 2004
59002032100
|
$75.56 | ||
|
Available to order. Add to View Price |
|||
|
#33
COVER HYD.CLUTCH 2T 2000
50302033100
|
$32.66 | ||
|
Available to order. Add to View Price |
|||
|
#34
RUBBER FOR RESERVOIR '98
50302034000
|
$22.32 | ||
|
Available to order. Add to View Price |
|||
|
#35
SPRING FOR CLUTCH LEVER 03
59002035000
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
OIL FOR HYD. CLUTCH 100 ML
50302036200
|
$23.42 | ||
|
Available to order. Add to View Price |
|||
|
#37
PROTECT.CAP FOR LEVER PERCH'98
50302037000
|
$22.43 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
LEVER SCREW CPL. 125-200 '98
50302038000
|
$27.60 | ||
|
Available to order. Add to View Price |
|||
|
#39
CLAMP WITH PIN 2000
50302030150
|
$39.04 | ||
|
Available to order. Add to View Price |
|||
|
#41
HH collar screw M6x20 TX30
0025060206
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#44
FLAT HEAD SCREW DIN0965-M 4X12
0965040123
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#62
SELF CUTTING RING HYDR.PIPE
50332063050
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#63
PIPE KIT FOR HYDR.CLUTCH 65 SX
46132063000
|
$71.49 | ||
|
Available to order. Add to View Price |
|||
|
#64
PROTECTION CAP
54002016000
|
$12.53 | ||
|
Available to order. Add to View Price |
|||
