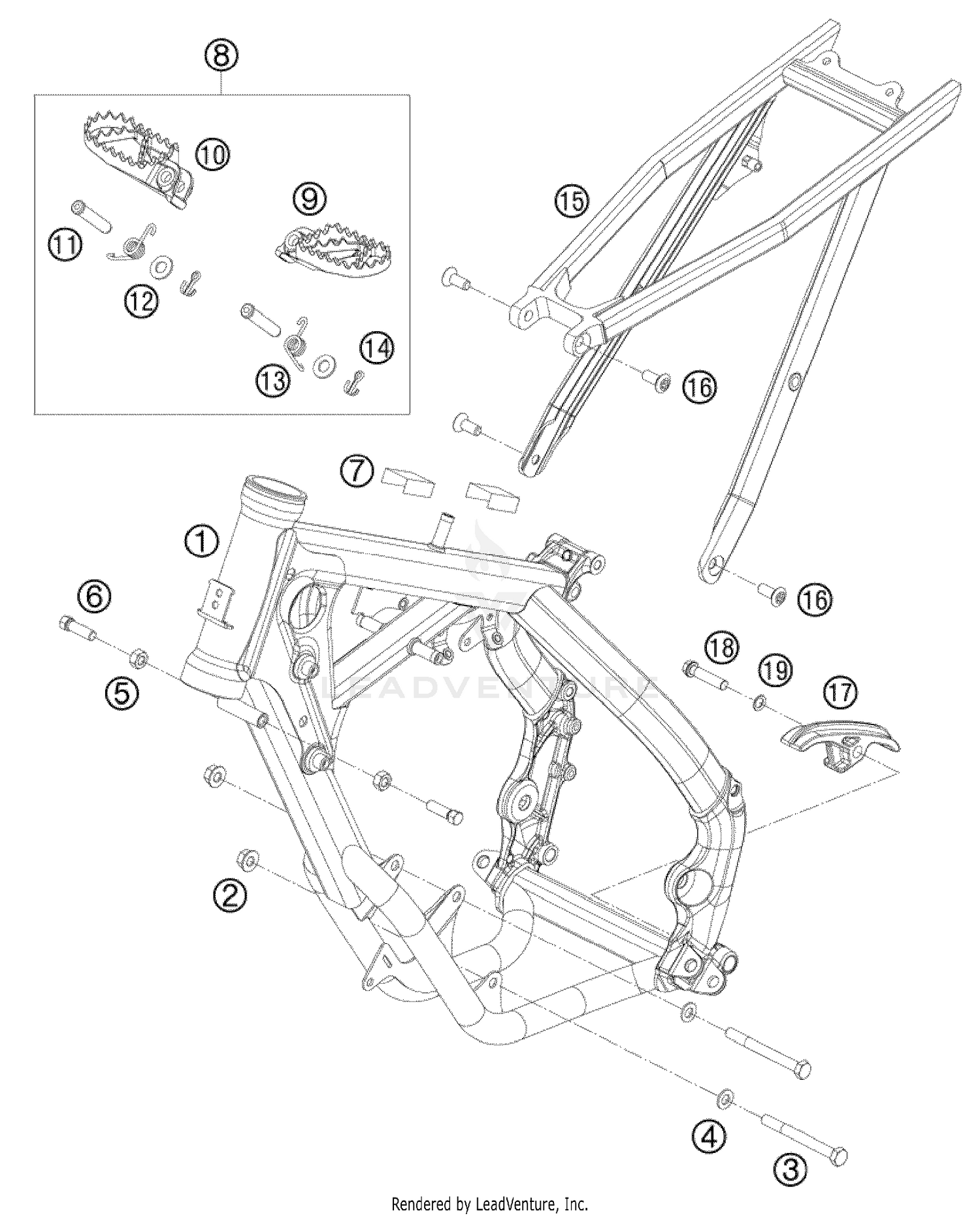

2009 KTM SX 65 Frame OEM Parts Diagram

Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Item MSRP Qty
#1 FRAME 65 SX ''MD09'' 09
4620300104430
$1,121.14
Available: Ships in 7-12 days.
Add to View Price
#2 SELF LOCKING NUT M8 10.9
54310086200
$2.02
Available: Ships in 7-12 days.
Add to View Price
#3 HH SCREW DIN 931 M8X80 10.9
0931080805
$0.36
Available: Ships in 7-12 days.
Add to View Price
#4 washer DIN 125 A -8.4
0125080003
$0.47
In Stock: Ready to ship.
Add to View Price
#5 HEXAGON NUT DIN0934-M 8
0934080003
$1.18
In Stock: Ready to ship.
Add to View Price
#6 SPECIAL SCREW M8X26 WS=10
59001037000
$2.26
Available: Ships in 7-12 days.
Add to View Price
#7 ADH. FOIL TRANSP. 80X80 MM 04
50307012000
$1.31
Available: Ships in 7-12 days.
Add to View Price
#8 FOOTREST CPL. 14
4700304003390
Superseded by 47103040033
$110.05
Available: Ships in 7-12 days.
Add to View Price
#9 FOOTREST L/S
59003040050
Superseded by 47103040000
$43.74
Available: Ships in 7-12 days.
Add to View Price
#10 FOOTREST R/S
59003041050
Superseded by 47103041000
$42.66
Available: Ships in 7-12 days.
Add to View Price
#11 PIN FOR FOOT PED 51.5X9.8 MM
54803044000
$12.30
In Stock: Ready to ship.
Add to View Price
#12 washer DIN 125 A 10.5
0125100003
$1.07
Available: Ships in 7-12 days.
Add to View Price
#13 FOOTREST SPRING L/S & R/S
54603041000
$4.50
In Stock: Ready to ship.
Add to View Price
#14 PIN DIN0094-3,2X25 STEEL
0094032253
$1.07
Available: Ships in 7-12 days.
Add to View Price
#15 SUB FRAME 65 SX 2009
46203002000
$200.43
Available: Ships in 7-12 days.
Add to View Price
#16 FLAT HEAD SCREW M. ISA45 M8X20
0019080206S
$1.79
Available: Ships in 7-12 days.
Add to View Price
#17 CHAIN SLIDING PIECE BELOW 07
77303053000
$8.79
Available: Ships in 7-12 days.
Add to View Price
#18 HH collar screw M8x35 TX40
0025080356
$3.79
In Stock: Ready to ship.
Add to View Price
#19 LOCK WASHER 8MM
36003014000
$1.18
In Stock: Ready to ship.
Add to View Price
