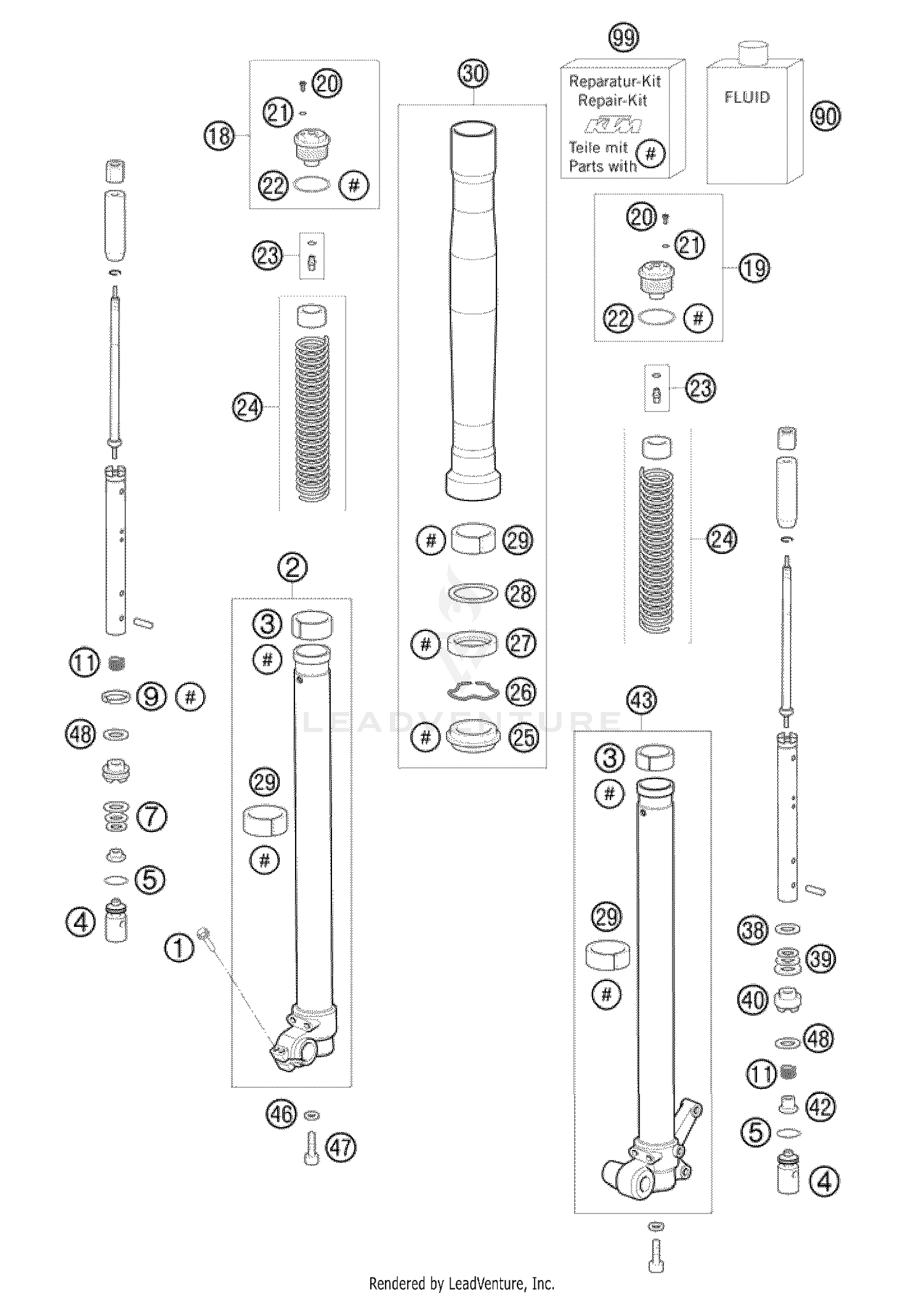

Front Fork, Disassembled Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HH collar screw M6x30 TX30
0025060306
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
SLIDER + AXLE CLAMP CPL. R/S
7819139/C
|
$284.09 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUIDE RING D=35
7538029
|
$25.71 | ||
|
Available to order. Add to View Price |
|||
|
#4
FOOT VALVE
7717065/R
|
$35.63 | ||
|
Available to order. Add to View Price |
|||
|
#5
O-RING D=20,3
7528005
|
$1.04 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHIM 8,1X23X0,1
7517082
|
$5.97 | ||
|
Available to order. Add to View Price |
|||
|
#9
PISTON RING D=26
7524163
|
$8.59 | ||
|
Available to order. Add to View Price |
|||
|
#11
LOWER REBOUND SPRING
75141087
|
$1.04 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLUG R/S CPL.
7701204AC
|
$125.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLUG L/S CPL.
7701205AC
|
$120.00 | ||
|
Available to order. Add to View Price |
|||
|
#20
LENTIL HEAD SCREW M4X6
7850208AR
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#21
O-RING D=3,69, S=1,78
7528180
|
$0.19 | ||
|
Available to order. Add to View Price |
|||
|
#22
O-RING D=34,6, S=1,78
7528008
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIN + O-RING
7850652
|
$19.94 | ||
|
Available to order. Add to View Price |
|||
|
#24
SPRINGS + PRELOAD SLEEVES KIT
7850728
|
|||
|
Available to order. Add to View Price |
|||
|
#25
DUST CAP
7533167
|
$39.37 | ||
|
Available to order. Add to View Price |
|||
|
#26
LOCK WASHER D=51,5
7523236
|
$4.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
OIL SEAL 35X47X10
7528034
|
$25.04 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER 36X47X3
7539032AA
|
$3.14 | ||
|
Available to order. Add to View Price |
|||
|
#29
GUIDE RING 35X15
7538038/A
|
$17.38 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
AUSSENROHR KPL.
7760069FNC
|
$318.31 | ||
|
Available to order. Add to View Price |
|||
|
#38
COMPRESSION DAMPING SHIM
7535099
|
$7.89 | ||
|
Available to order. Add to View Price |
|||
|
#39
SHIM 8,1X23X0,2
7517028
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
SHIM 8,1X21X0,2
7517057
|
$6.09 | ||
|
Available to order. Add to View Price |
|||
|
#39
SHIM 8,1X18X0,2
7517074
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
KOLBEN DRUCKSTUFE D=26
7530090B
|
$14.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#42
SPEZIALMUTTER M6X1 MIT ABSATZ
7521147A
|
$12.58 | ||
|
Available to order. Add to View Price |
|||
|
#43
SLIDER + AXLE CLAMP CPL. L/S
7819140C
|
$312.15 | ||
|
Available to order. Add to View Price |
|||
|
#46
SHIM 8X12X1,5
7522061
|
$1.04 | ||
|
Available to order. Add to View Price |
|||
|
#47
AH SCREW DIN0912-M 8X25
0912080253
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
SHIM 8,1X23X0,3
7517044
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#90
FORKOIL EBH16 SAE 7.5
7550013
|
|||
|
Unavailable |
|||
|
#99
REPAIR-KIT USD 35
7850731/C
|
$148.19 | ||
|
Available to order. Add to View Price |
|||
