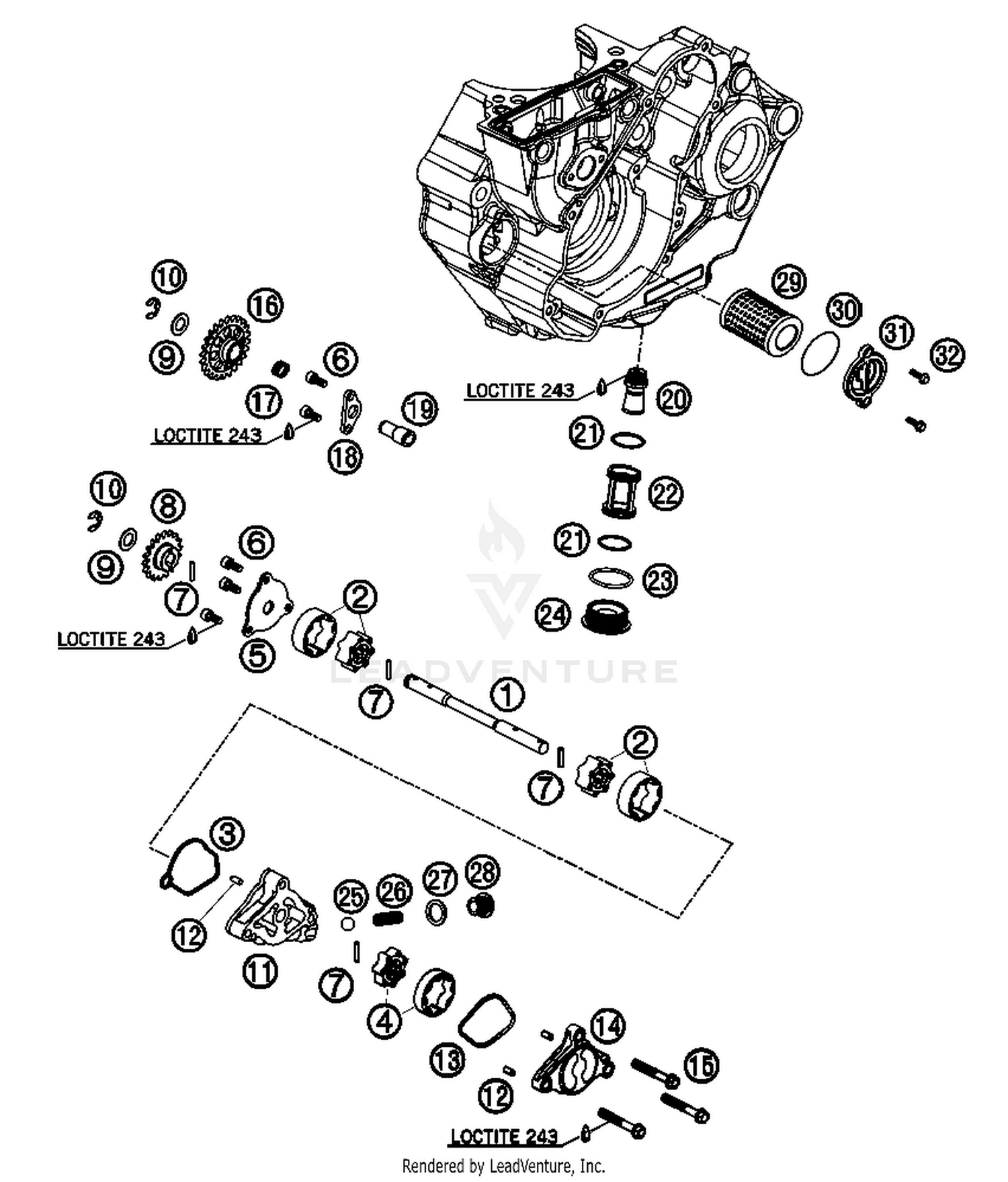

Lubricating System Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
OIL PUMP SHAFT
77338002000
Superseded by 77338002100
|
$27.93 | ||
|
Available to order. Add to View Price |
|||
|
#2
SUCTION PUMP CPL.
77338107000
Superseded by 77338107100
|
$43.88 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET PRESSURE PUMP CASE
77338012000
|
$8.90 | ||
|
Available to order. Add to View Price |
|||
|
#4
PRESSURE PUMP PEEK D=9MM
77338207000
Superseded by 77338207100
|
$50.70 | ||
|
Available to order. Add to View Price |
|||
|
#5
PUMP COVER 07
77338004100
|
$9.01 | ||
|
Available to order. Add to View Price |
|||
|
#6
AH SCREW DIN0912-M 5X12
0912050123
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NEEDLE ROLLER DIN5402 3X15,8
0402031580
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
OIL PUMP GEAR 18-T
77338001000
Superseded by 77338001100
|
$7.91 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER 10,2X18X1
77338023000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
retaining washer DIN 6799 - 8
0799080000
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PRESSURE PUMP CASE
77338010100
|
$36.73 | ||
|
Available to order. Add to View Price |
|||
|
#12
NEEDLE ROL.DIN5402 NRB 4X9,8
0402040980
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
GASKET PRESSURE PUMP COVER
77338112000
|
$8.90 | ||
|
Available to order. Add to View Price |
|||
|
#14
PRESSURE PUMP COVER
77338013100
|
$29.91 | ||
|
Available to order. Add to View Price |
|||
|
#15
HH collar screw M6x40 TX30
0015060403
Superseded by 0025060406
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
OILPUMP IDLER GEAR 24-T.
77338000050
Superseded by 77338000150
|
$9.45 | ||
|
Available to order. Add to View Price |
|||
|
#17
NEEDLE BEARING K 10X13X10 02
0405101310
|
$7.80 | ||
|
Available to order. Add to View Price |
|||
|
#18
LOCK WASHER BEARING BOLT
77338061050
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BEARING BOLT
77338061000
|
$12.53 | ||
|
Available to order. Add to View Price |
|||
|
#20
OIL INTAKE SNORKEL
77338022000
|
$13.52 | ||
|
Available to order. Add to View Price |
|||
|
#21
O-RING 23,00X1,50 NBR 70
0770023015
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
OIL SCREEN CPL.
77338016100
|
$15.28 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
O-RING 30X2,0 FPM
0770300020
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
PLUG SCREW
77338019100
|
$33.43 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
BALL D=10 DIN 5401
0401100000
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
COIL SPRING
77338026100
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
CU-SEAL RING 14X20X1,5 LC8 02
0603142016
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
PLUG SCREW M14X1,5 ALU AH
60038033050
|
$13.08 | ||
|
Available to order. Add to View Price |
|||
|
#29
OIL FILTER
77338005100
|
$10.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
O-RING 34X1,5 VITON
0770034015
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
HH collar screw M6x16 TX30
0015060163
Superseded by 0025060166
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
